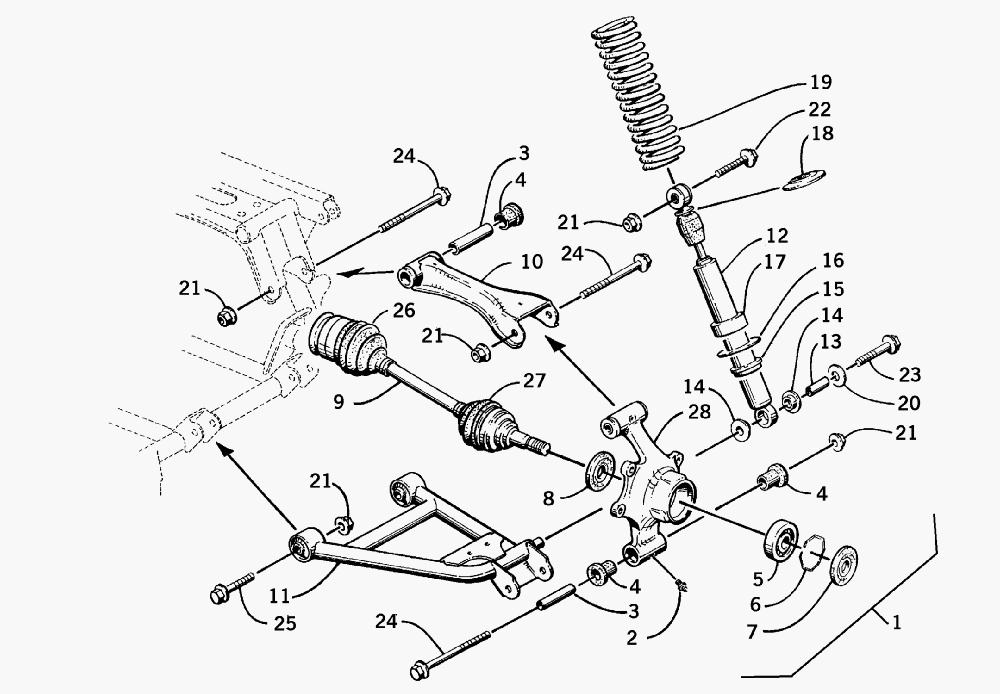

REAR SUSPENSION ASSEMBLY для Arctic Cat 250 2X4 (RED) [A2000ATE2AUSR] - 2000 года выпуска
-
№АртикулНазвание
-
10504-026 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2, 5-8, AND 28)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2, 5-8, AND 28)
-
10504-027 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2, 5-8, AND 28)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2, 5-8, AND 28)
-
20423-095 ...FITTING, GREASE...FITTING, GREASE
-
30403-038 COLLAR, SUSPENSION BUSHINGCOLLAR, SUSPENSION BUSHING
-
40403-032 BUSHING, SUSPENSIONBUSHING, SUSPENSION
-
50402-275 BEARING, WHEELBEARING, WHEEL
-
60423-034 CLIP, BEARINGCLIP, BEARING
-
70402-089 SEALSEAL
-
80402-069 SEALSEAL
-
90402-171 AXLE, DRIVEAXLE, DRIVE
-
100504-029 ARM, REAR - UPPER (INC. 2)ARM, REAR - UPPER (INC. 2)
-
110504-030 A-ARM, REAR - LOWER RIGHTA-ARM, REAR - LOWER RIGHT
-
110504-031 A-ARM, REAR - LOWER LEFTA-ARM, REAR - LOWER LEFT
-
120404-014 SHOCK ABSORBER - REARSHOCK ABSORBER - REAR
-
130403-028 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
140604-310 BUSHING, SHOCK ABSORBERBUSHING, SHOCK ABSORBER
-
150403-027 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
160403-013 WASHER, SPRING ADJUSTWASHER, SPRING ADJUST
-
170403-025 COLLAR, SPRINGCOLLAR, SPRING
-
180603-033 RETAINER, SPRINGRETAINER, SPRING
-
190403-002 SPRING, SUSPENSIONSPRING, SUSPENSION
-
200423-087 WASHERWASHER
-
218428-002 NUT, LOCKNUT, LOCK
-
228409-040 SCREW, CAPSCREW, CAP
-
238408-820 SCREW, CAPSCREW, CAP
-
248409-000 SCREW, CAPSCREW, CAP
-
258409-060 SCREW, CAPSCREW, CAP
-
260436-113 REPAIR KIT, INNER BOOT - REAR AXLEREPAIR KIT, INNER BOOT - REAR AXLE
-
270436-114 REPAIR KIT, OUTER BOOT - REAR AXLEREPAIR KIT, OUTER BOOT - REAR AXLE
-
280504-032 KNUCKLE - RIGHTKNUCKLE - RIGHT
-
280504-037 KNUCKLE - LEFTKNUCKLE - LEFT
