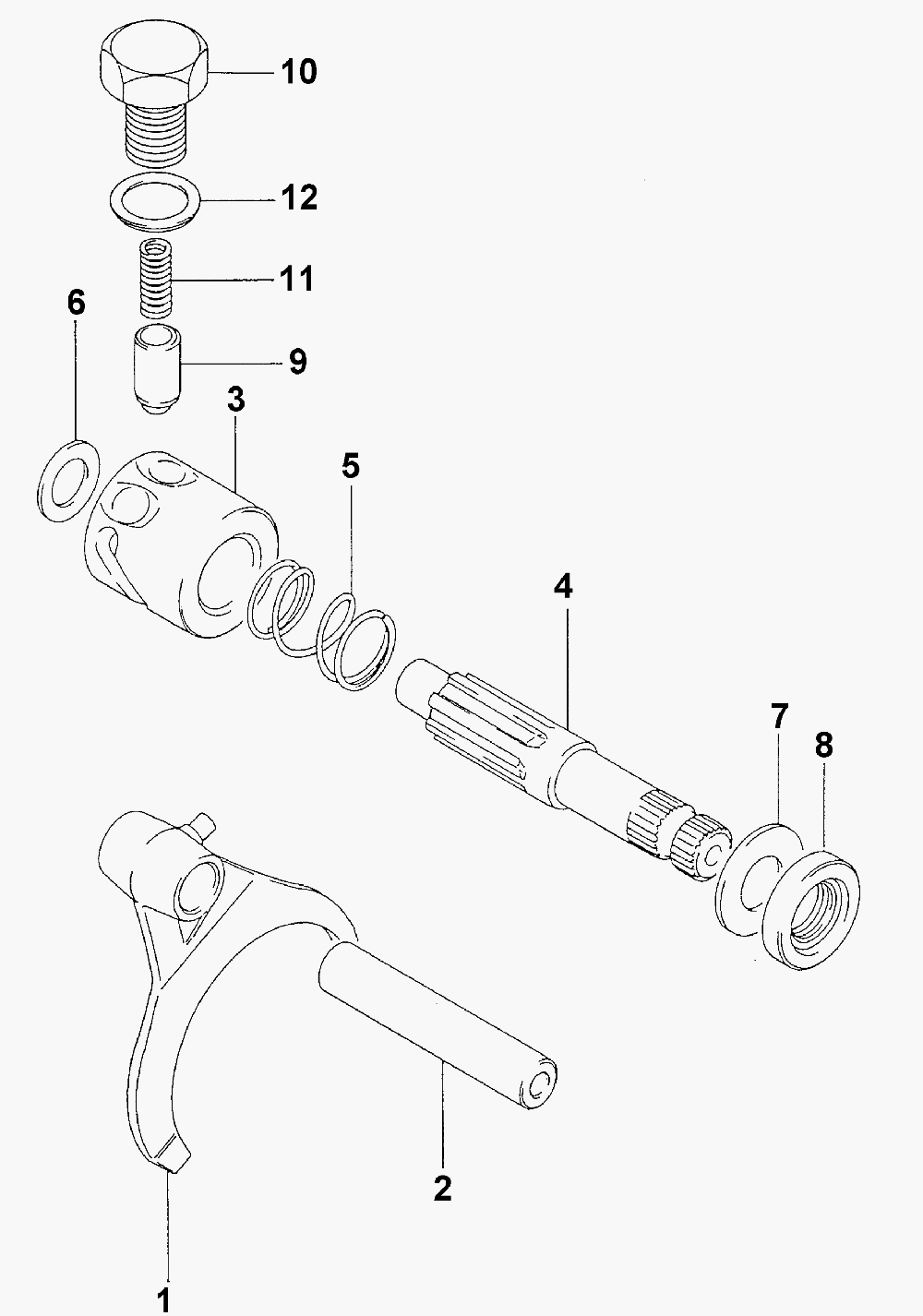

DIFFERENTIAL LOCK ASSEMBLY для Arctic Cat 300 4X4 (GREEN) [A2000ATF4AUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13446-205 FORK, DIFFERENTIAL LOCKINGFORK, DIFFERENTIAL LOCKING
-
23446-202 SHAFT, FORKSHAFT, FORK
-
33446-203 CAM, DIFFERENTIAL LOCKINGCAM, DIFFERENTIAL LOCKING
-
43446-204 SHAFT, CAMSHAFT, CAM
-
53402-311 SPRINGSPRING
-
63423-300 WASHER, RIGHTWASHER, RIGHT
-
73423-339 WASHER, LEFTWASHER, LEFT
-
83402-076 SEAL, OILSEAL, OIL
-
93446-119 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
103446-046 PLUG, OILPLUG, OIL
-
113402-089 SPRINGSPRING
-
123402-012 GASKETGASKET
