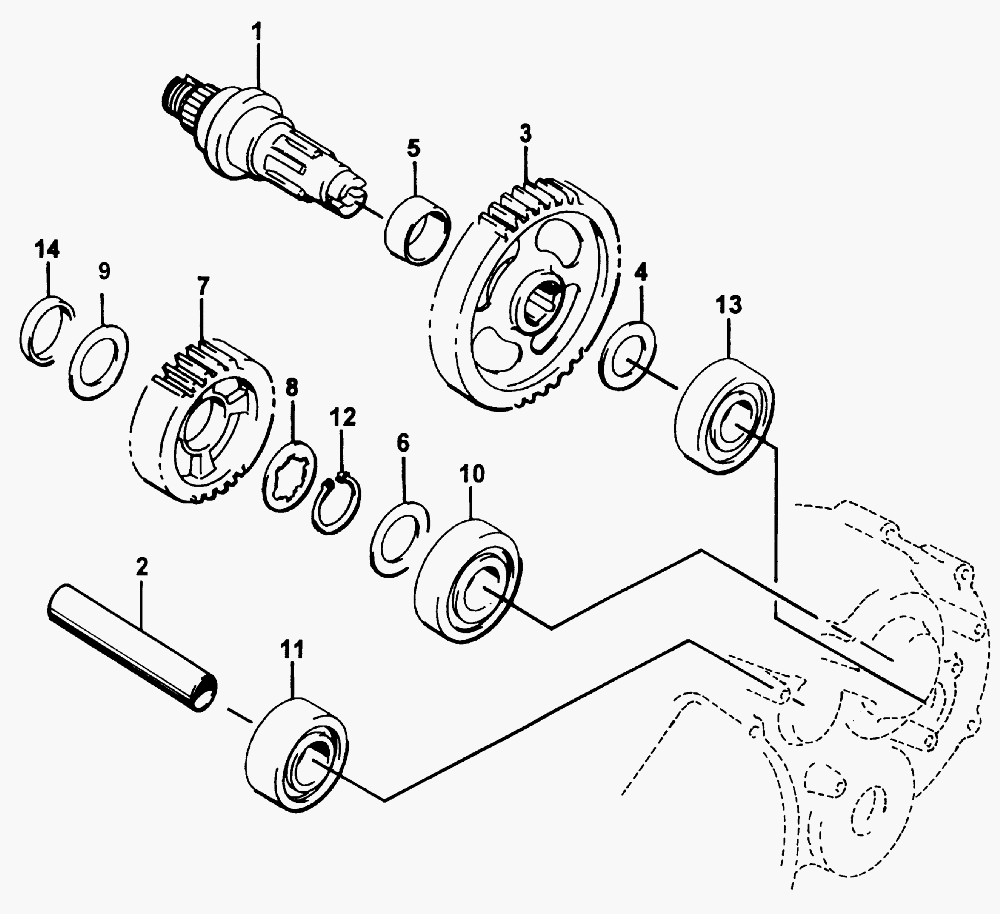

SECONDARY TRANSMISSION ASSEMBLY для Arctic Cat 400 2X4 (RED) [A2000ATI2AUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13446-224 SHAFT, OUTPUTSHAFT, OUTPUT
-
23446-109 SPACER, IDLE GEARSPACER, IDLE GEAR
-
33446-072 GEAR, DRIVENGEAR, DRIVEN
-
43423-150 WASHERWASHER
-
53402-015 SPACER, DRIVESPACER, DRIVE
-
63402-194 WASHERWASHER
-
73446-110 GEAR, DRIVE (NO. 1)GEAR, DRIVE (NO. 1)
-
83423-036 WASHERWASHER
-
93423-209 WASHERWASHER
-
103402-046 BEARING, DRIVESHAFT - LEFTBEARING, DRIVESHAFT - LEFT
-
113402-047 BEARING, CENTER SHAFT - LEFTBEARING, CENTER SHAFT - LEFT
-
123423-066 CIRCLIPCIRCLIP
-
133402-045 BEARINGBEARING
-
143446-068 SPACERSPACER
