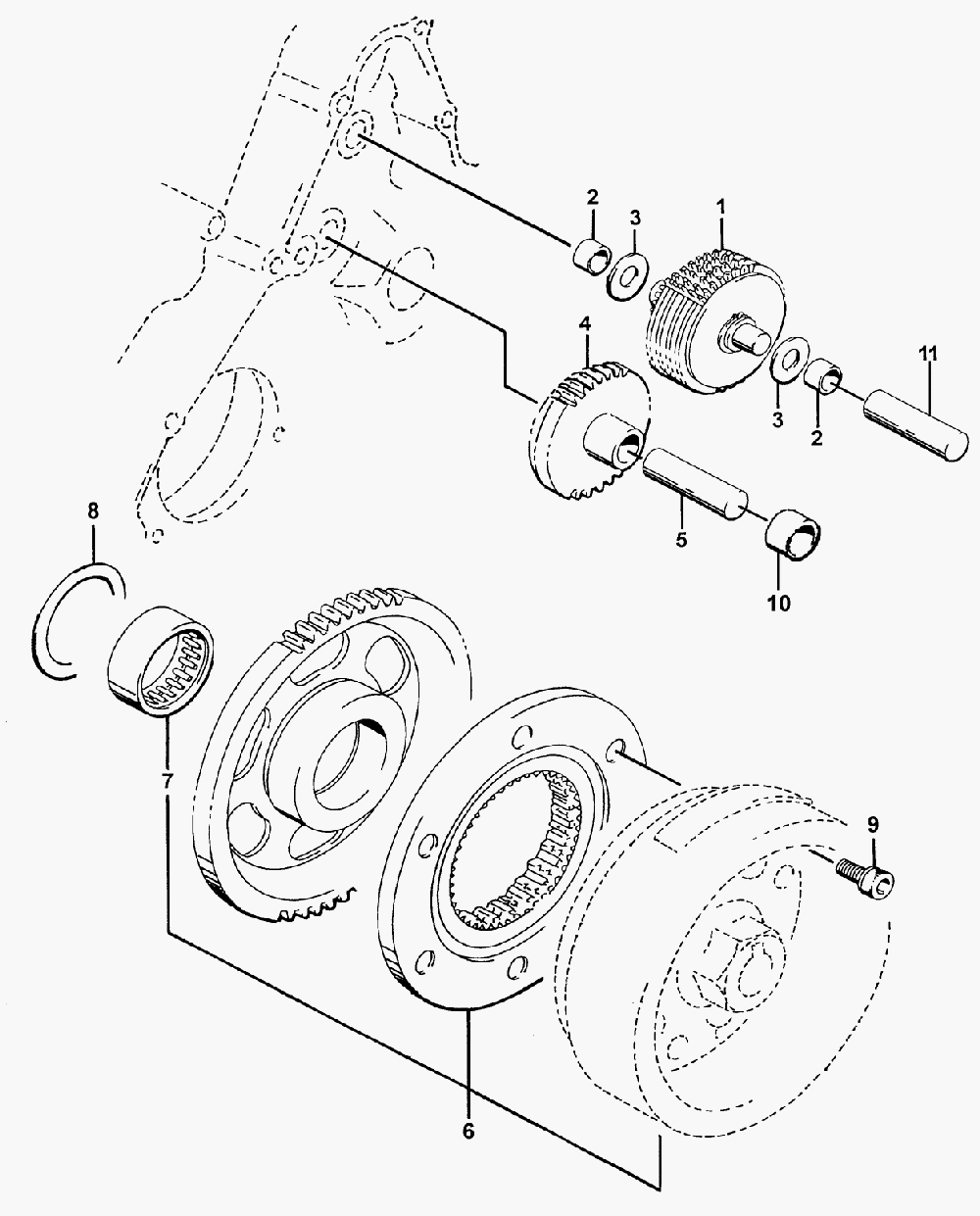

STARTER CLUTCH ASSEMBLY для Arctic Cat 400 4X4 (RED) [A2000ATI4AUSG] - 2000 года выпуска
-
№АртикулНазвание
-
13402-344 GEAR, STARTER - IDLE #1 (400)GEAR, STARTER - IDLE #1 (400)
-
43402-124 GEAR, STARTER IDLE #2 (400)GEAR, STARTER IDLE #2 (400)
-
53423-042 PINPIN
-
63402-380 CLUTCH, STARTER - SET (INC. 7)CLUTCH, STARTER - SET (INC. 7)
-
73402-063 ...BEARING...BEARING
-
83423-104 WASHERWASHER
-
93423-102 SCREW, CAPSCREW, CAP
-
113423-331 PIN (400)PIN (400)
