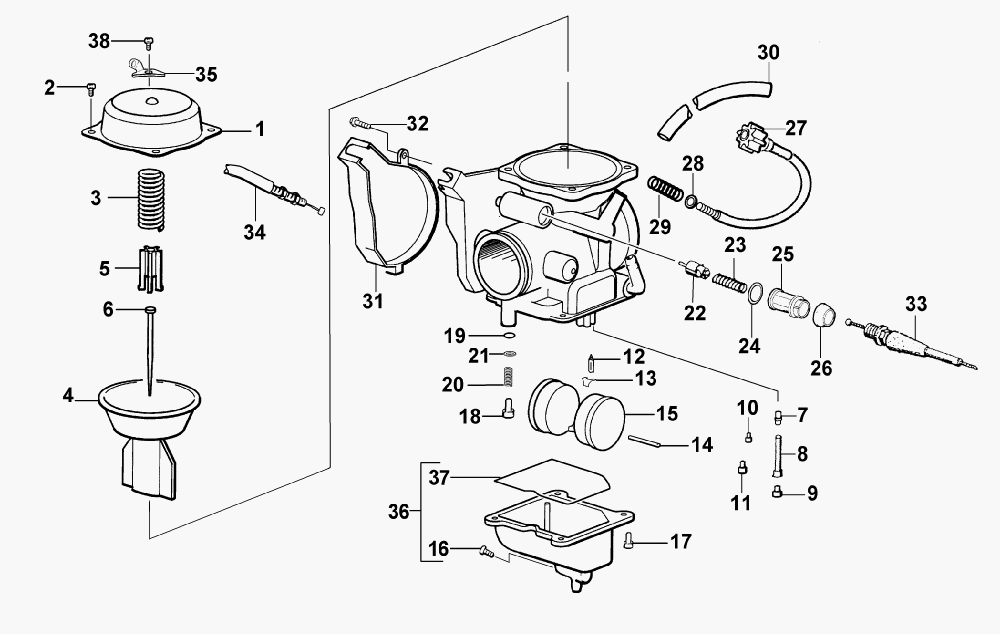

CARBURETOR для Arctic Cat 300 2X4 (GREEN) [A2001ATF2AUS] - 2001 года выпуска
-
№АртикулНазвание
-
-0470-427 COMPLETE CARBURETOR ASSEMBLYCOMPLETE CARBURETOR ASSEMBLY
-
15507-051 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-052 SPRINGSPRING
-
45507-053 PISTON, VACUUMPISTON, VACUUM
-
55507-054 SPRING, SEATSPRING, SEAT
-
65507-055 JET NEEDLEJET NEEDLE
-
75507-056 NEEDLE JETNEEDLE JET
-
85507-008 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-057 MAIN JET - 135MAIN JET - 135
-
95507-041 MAIN JET - 147 (OPTIONAL)MAIN JET - 147 (OPTIONAL)
-
95507-042 MAIN JET - 145 (OPTIONAL)MAIN JET - 145 (OPTIONAL)
-
95507-043 MAIN JET - 142 (OPTIONAL)MAIN JET - 142 (OPTIONAL)
-
95507-044 MAIN JET - 140 (OPTIONAL)MAIN JET - 140 (OPTIONAL)
-
95507-009 MAIN JET - 150 (OPTIONAL)MAIN JET - 150 (OPTIONAL)
-
105507-010 SLOW JETSLOW JET
-
115507-058 STARTER JET - 102STARTER JET - 102
-
125507-039 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
155507-038 FLOAT SET (INC. 14)FLOAT SET (INC. 14)
-
165507-050 PLUG, DRAINPLUG, DRAIN
-
175507-017 SCREWSCREW
-
185507-040 SCREW, PILOT AIR - SET (INC. 19-21)SCREW, PILOT AIR - SET (INC. 19-21)
-
225507-022 VALVE, STARTERVALVE, STARTER
-
235507-023 SPRINGSPRING
-
245507-024 O-RINGO-RING
-
255507-025 CAPCAP
-
265507-026 CAP, RUBBERCAP, RUBBER
-
275507-059 SCREW, STOP (INC. 35)SCREW, STOP (INC. 35)
-
285507-028 WASHERWASHER
-
295507-029 SPRINGSPRING
-
305507-060 TUBE, VINYLTUBE, VINYL
-
315507-036 COVERCOVER
-
325507-037 SCREWSCREW
-
330487-017 CABLE, CHOKECABLE, CHOKE
-
340487-019 CABLE, THROTTLECABLE, THROTTLE
-
375507-068 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
385507-035 SCREWSCREW
