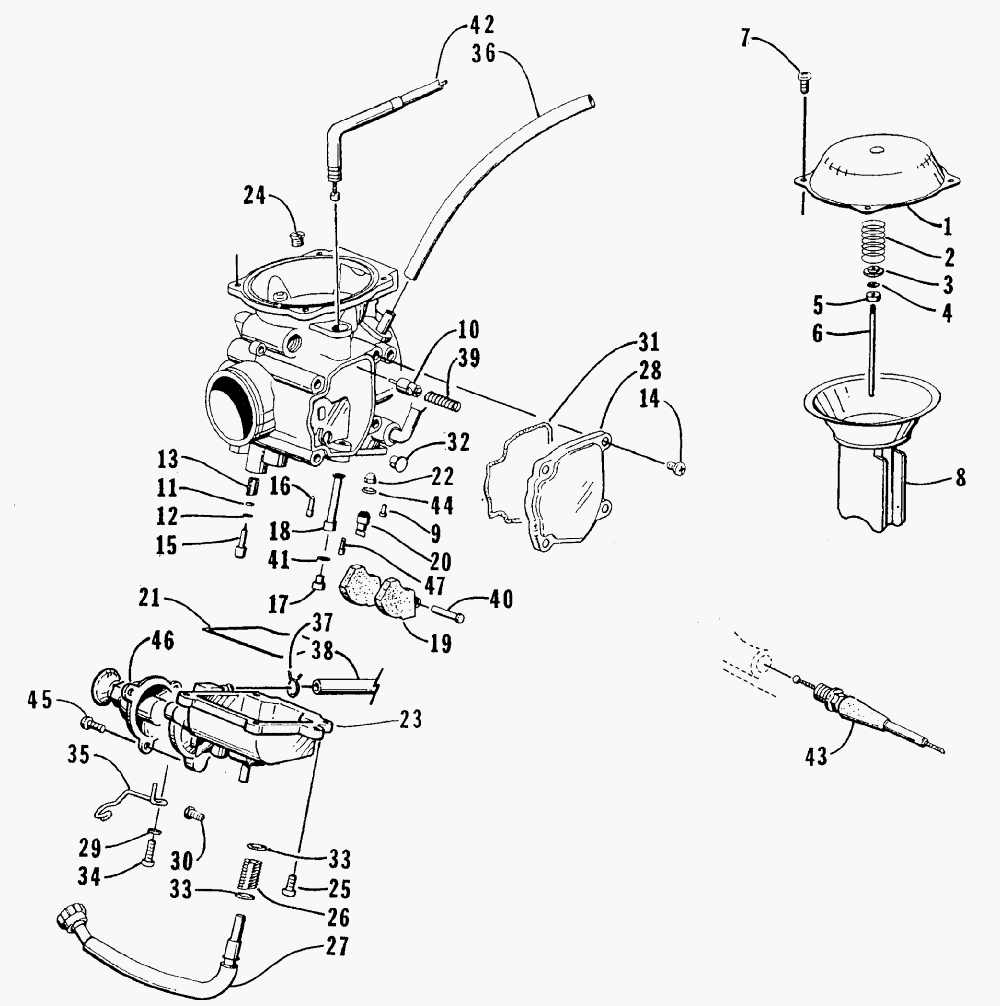

CARBURETOR для Arctic Cat 400 2X4 MAN (RED) [A2001ATI2AUSR] - 2001 года выпуска
-
№АртикулНазвание
-
-0470-362 CARBURETOR,BST34-219 W/PRIMERCARBURETOR,BST34-219 W/PRIMER
-
14505-001 COVER ASSEMBLYCOVER ASSEMBLY
-
24505-002 SPRINGSPRING
-
34505-003 RINGRING
-
44505-004 E-CLIPE-CLIP
-
54505-005 RINGRING
-
64505-082 JET NEEDLEJET NEEDLE
-
74505-007 SCREWSCREW
-
84505-077 DIAPHRAGMDIAPHRAGM
-
94505-009 SCREWSCREW
-
104505-078 PLUNGER ASSEMBLYPLUNGER ASSEMBLY
-
114505-011 O-RINGO-RING
-
124505-012 WASHERWASHER
-
134505-013 SPRINGSPRING
-
144505-014 SCREWSCREW
-
154505-016 SCREW, PILOTSCREW, PILOT
-
164505-059 PILOT JET 45PILOT JET 45
-
174505-080 MAIN JET 150MAIN JET 150
-
184505-006 NEEDLE JET P-7NEEDLE JET P-7
-
194505-021 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
204505-022 SEAT VALVE 2.0 W/NEEDLESEAT VALVE 2.0 W/NEEDLE
-
204505-102 SEAT VALVE 2.3* W/NEEDLE (OPTIONAL)SEAT VALVE 2.3* W/NEEDLE (OPTIONAL)
-
214505-044 O-RING, FLOAT CHAMBERO-RING, FLOAT CHAMBER
-
224505-045 FILTERFILTER
-
234505-049 CHAMBER, FLOATCHAMBER, FLOAT
-
244505-086 JET, PILOT AIRJET, PILOT AIR
-
254505-025 SCREWSCREW
-
264505-026 SPRINGSPRING
-
274505-027 CABLE, ADJUSTER - ASSEMBLYCABLE, ADJUSTER - ASSEMBLY
-
284505-028 COVERCOVER
-
294505-029 WASHERWASHER
-
304505-030 SCREWSCREW
-
314505-031 O-RINGO-RING
-
324505-032 GUIDE, CABLEGUIDE, CABLE
-
334505-033 WASHERWASHER
-
344505-042 SCREWSCREW
-
354505-034 CLIPCLIP
-
364505-035 HOSEHOSE
-
374505-053 CLIPCLIP
-
384505-052 HOSEHOSE
-
394505-039 SPRINGSPRING
-
406505-153 PIN, FLOATPIN, FLOAT
-
416505-006 WASHERWASHER
-
420487-001 CABLE, THROTTLECABLE, THROTTLE
-
430487-002 CABLE, CHOKECABLE, CHOKE
-
446505-875 O-RINGO-RING
-
454505-051 SCREW, CAPSCREW, CAP
-
464505-050 COVER ASSEMBLY, PRIMERCOVER ASSEMBLY, PRIMER
-
474505-107 HOLDER, CARBURETORHOLDER, CARBURETOR
