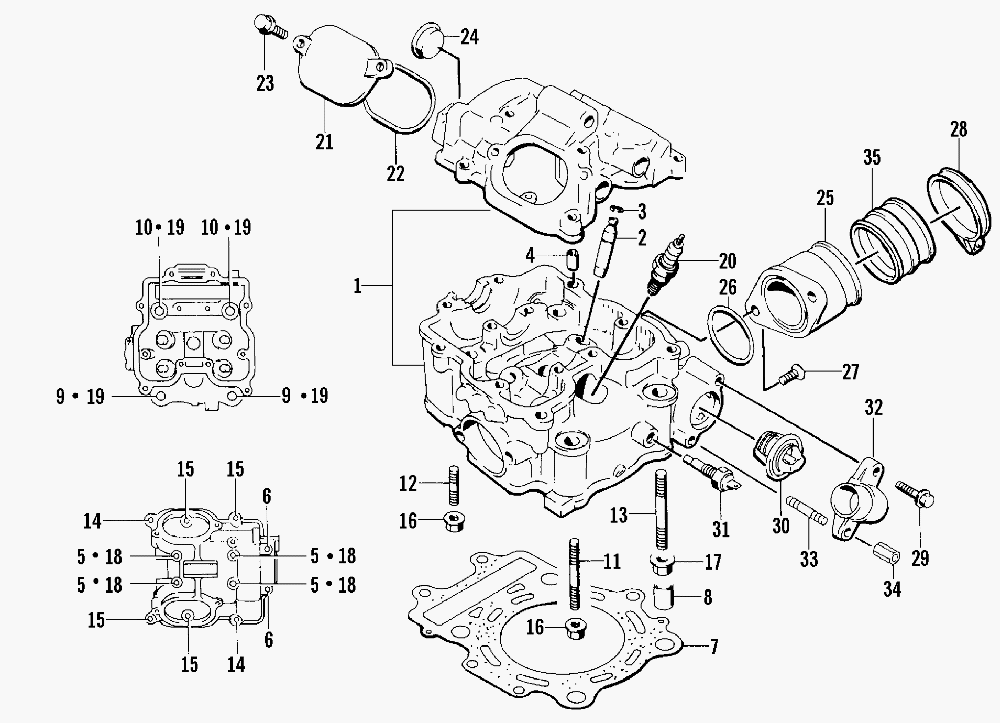

CYLINDER HEAD ASSEMBLY для Arctic Cat 400 4X4 MAN (RED) [A2001ATI4AUSR] - 2001 года выпуска
-
№АртикулНазвание
-
3402-107 COMPLETE GASKET SET (400)COMPLETE GASKET SET (400)
-
13402-098 HEAD, CYLINDER - ASSEMBLY (INC. 2-6) (400)HEAD, CYLINDER - ASSEMBLY (INC. 2-6) (400)
-
23402-099 ...GUIDE, VALVE...GUIDE, VALVE
-
33423-068 ...CIRCLIP...CIRCLIP
-
43423-043 ...PIN, DOWEL...PIN, DOWEL
-
53423-006 ...SCREW, CAP...SCREW, CAP
-
63008-376 ...SCREW, CAP...SCREW, CAP
-
73402-163 GASKET, CYLINDER HEAD (400)GASKET, CYLINDER HEAD (400)
-
83423-088 PIN, DOWELPIN, DOWEL
-
93423-015 SCREW, CAPSCREW, CAP
-
103423-016 SCREW, CAPSCREW, CAP
-
113423-089 BOLT, STUDBOLT, STUD
-
123423-087 BOLT, STUDBOLT, STUD
-
133423-203 BOLT, STUDBOLT, STUD
-
143423-007 SCREW, CAPSCREW, CAP
-
153004-376 SCREW, CAPSCREW, CAP
-
163004-488 NUTNUT
-
173004-326 NUTNUT
-
183003-290 GASKETGASKET
-
193402-010 GASKET, HEAD NUTGASKET, HEAD NUT
-
200217-632 SPARK PLUG (NGK CR6E)SPARK PLUG (NGK CR6E)
-
213402-100 CAP, INSPECTIONCAP, INSPECTION
-
223402-101 O-RINGO-RING
-
233004-341 SCREW, CAPSCREW, CAP
-
243402-035 PLUG, CYLINDER HEADPLUG, CYLINDER HEAD
-
253402-149 PIPE, INTAKE - ASSEMBLY (INC. 26) (400)PIPE, INTAKE - ASSEMBLY (INC. 26) (400)
-
263423-332 ...O-RING (400)...O-RING (400)
-
273423-019 SCREW, CAP (400)SCREW, CAP (400)
-
283402-086 CLAMPCLAMP
-
293004-341 SCREW, CAP (400)SCREW, CAP (400)
-
303413-005 THERMOSTAT (400)THERMOSTAT (400)
-
313530-005 SWITCH, WATER TEMPERATURE - ASSEMBLYSWITCH, WATER TEMPERATURE - ASSEMBLY
-
323413-004 COVER, THERMOSTATCOVER, THERMOSTAT
-
350412-412 TUBE, INTAKETUBE, INTAKE
