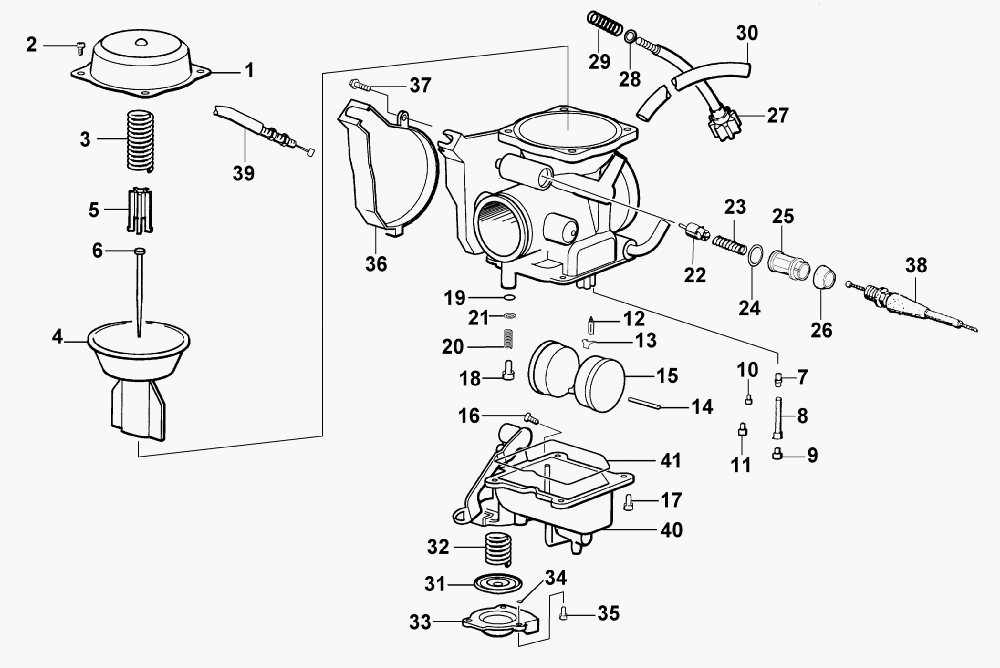

CARBURETOR для Arctic Cat 500 4X4 MAN (RED) [A2001ATM4AUSR] - 2001 года выпуска
-
№АртикулНазвание
-
-0470-433 CARBURETOR ASSYCARBURETOR ASSY
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-066 SPRINGSPRING
-
45507-004 PISTON, VACUUMPISTON, VACUUM
-
55507-005 SPRING, SEATSPRING, SEAT
-
65507-006 JET NEEDLEJET NEEDLE
-
75507-007 NEEDLE JETNEEDLE JET
-
85507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-042 MAIN JET - 145MAIN JET - 145
-
95507-009 MAIN JET - 150** (OPTIONAL)MAIN JET - 150** (OPTIONAL)
-
95507-041 MAIN JET - 147** (OPTIONAL)MAIN JET - 147** (OPTIONAL)
-
95507-043 MAIN JET - 142** (OPTIONAL)MAIN JET - 142** (OPTIONAL)
-
95507-044 MAIN JET - 140** (OPTIONAL)MAIN JET - 140** (OPTIONAL)
-
105507-010 SLOW JETSLOW JET
-
115507-011 STARTER JET - 102STARTER JET - 102
-
125507-038 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
155507-039 FLOAT SET (INC. 14)FLOAT SET (INC. 14)
-
165507-050 SCREW, DRAINSCREW, DRAIN
-
175507-017 SCREWSCREW
-
185507-040 SCREW, PILOT AIR - SET (INC. 19-21)SCREW, PILOT AIR - SET (INC. 19-21)
-
225507-022 VALVE, STARTERVALVE, STARTER
-
235507-023 SPRINGSPRING
-
245507-024 O-RINGO-RING
-
255507-025 CAPCAP
-
265507-026 CAP, RUBBERCAP, RUBBER
-
275507-027 SCREW, STOPSCREW, STOP
-
285507-028 WASHERWASHER
-
295507-029 SPRINGSPRING
-
305507-030 TUBE, VINYLTUBE, VINYL
-
315507-031 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
325507-032 SPRINGSPRING
-
345507-034 U-RINGU-RING
-
355507-035 SCREWSCREW
-
365507-036 COVERCOVER
-
375507-037 SCREWSCREW
-
380487-016 CABLE, CHOKECABLE, CHOKE
-
390487-021 CABLE, THROTTLECABLE, THROTTLE
-
415507-067 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
