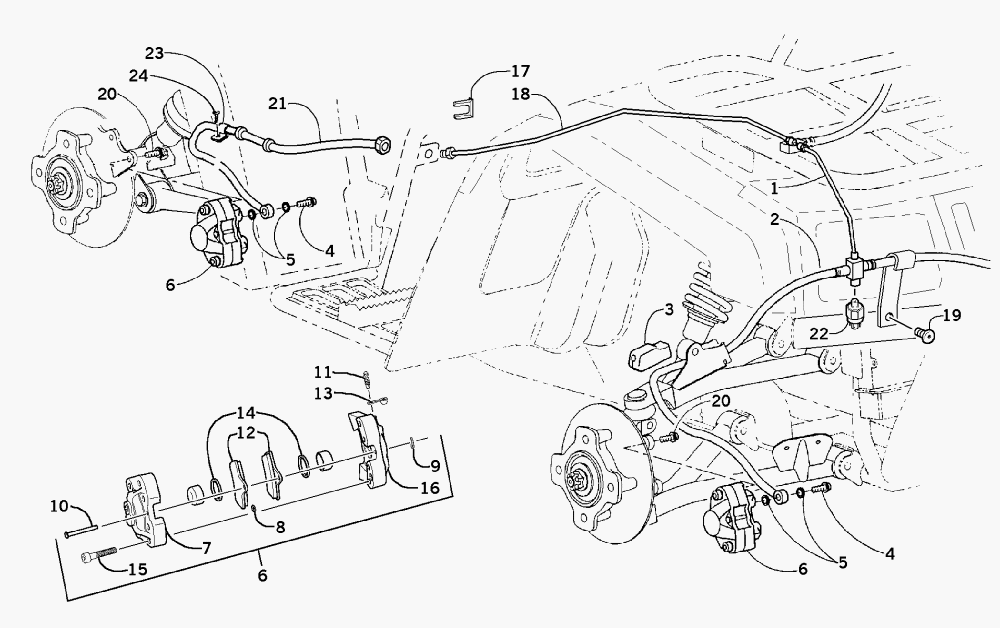

HYDRAULIC BRAKE ASSEMBLY для Arctic Cat 250 2X4 (GREEN) [A2002ATE2AUSG] - 2002 года выпуска
-
№АртикулНазвание
-
10402-053 TUBE, BRAKE LINE - FRONTTUBE, BRAKE LINE - FRONT
-
20402-880 HOSE, BRAKE - FRONTHOSE, BRAKE - FRONT
-
30402-073 BLOCK, MOUNTINGBLOCK, MOUNTING
-
40423-389 BOLT, BANJO FITTINGBOLT, BANJO FITTING
-
50423-039 WASHER, CRUSHWASHER, CRUSH
-
60502-265 CALIPER, BRAKE - RIGHT - FRONT (INC. 7-16)CALIPER, BRAKE - RIGHT - FRONT (INC. 7-16)
-
60502-266 CALIPER, BRAKE - LEFT - FRONT AND REAR (INC. 7-16)CALIPER, BRAKE - LEFT - FRONT AND REAR (INC. 7-16)
-
80402-490 ...O-RING...O-RING
-
90402-496 ...PIN, COTTER...PIN, COTTER
-
100402-495 ...PIN, BRAKE CALIPER...PIN, BRAKE CALIPER
-
110402-493 ...CAP, BLEED VALVE...CAP, BLEED VALVE
-
120402-882 ...PAD, BRAKE...PAD, BRAKE
-
130402-491 ...VALVE, BLEED...VALVE, BLEED
-
140402-487 ...O-RING, BRAKE CALIPER...O-RING, BRAKE CALIPER
-
150402-492 ...SCREW, SOCKET HEAD...SCREW, SOCKET HEAD
-
170402-597 CLIP, BRAKE LINECLIP, BRAKE LINE
-
180402-170 TUBE, BRAKE LINE - REARTUBE, BRAKE LINE - REAR
-
198476-625 SCREW, MACHINESCREW, MACHINE
-
208408-825 SCREW, CAPSCREW, CAP
-
210402-881 HOSE, BRAKE - REARHOSE, BRAKE - REAR
-
230123-269 CLAMP, CABLECLAMP, CABLE
-
240423-324 SCREW, MACHINESCREW, MACHINE
