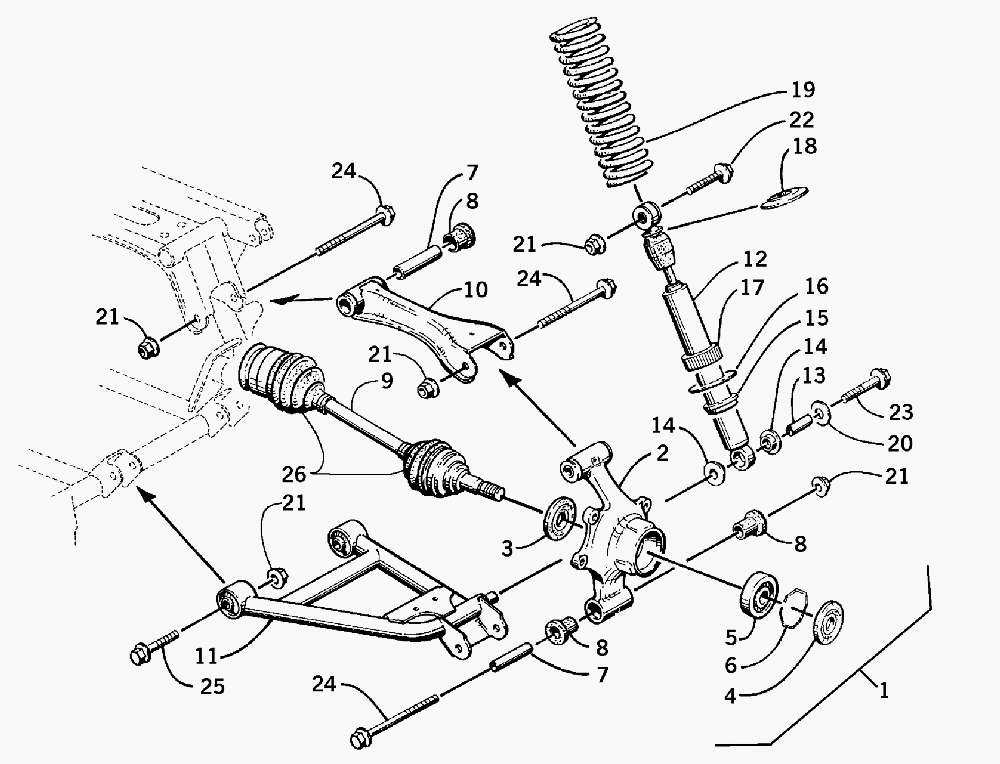

REAR SUSPENSION ASSEMBLY для Arctic Cat 300 2X4 (GREEN) [A2002ATF2AUSG] - 2002 года выпуска
-
№АртикулНазвание
-
10504-056 KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-6)KNUCKLE, RIGHT REAR - ASSEMBLY (INC. 2-6)
-
10504-057 KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-6)KNUCKLE, LEFT REAR - ASSEMBLY (INC. 2-6)
-
20504-042 ...KNUCKLE - RIGHT...KNUCKLE - RIGHT
-
20504-043 ...KNUCKLE - LEFT...KNUCKLE - LEFT
-
30402-069 ...SEAL...SEAL
-
40402-089 ...SEAL...SEAL
-
50402-275 ...BEARING, WHEEL...BEARING, WHEEL
-
60423-034 ...CLIP, BEARING...CLIP, BEARING
-
70403-038 COLLAR, SUSPENSION BUSHINGCOLLAR, SUSPENSION BUSHING
-
80403-032 BUSHING, SUSPENSIONBUSHING, SUSPENSION
-
90402-777 AXLE, DRIVEAXLE, DRIVE
-
100504-044 ARM, REAR - UPPERARM, REAR - UPPER
-
110504-030 A-ARM, REAR - LOWER RIGHTA-ARM, REAR - LOWER RIGHT
-
110504-031 A-ARM, REAR - LOWER LEFTA-ARM, REAR - LOWER LEFT
-
120404-014 SHOCK ABSORBER - REAR (INC. 13-15)SHOCK ABSORBER - REAR (INC. 13-15)
-
130403-028 ...SLEEVE, SHOCK ABSORBER...SLEEVE, SHOCK ABSORBER
-
140604-310 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
150403-027 ...RETAINER, SPRING - LOWER...RETAINER, SPRING - LOWER
-
160403-013 WASHER, SPRING ADJUSTWASHER, SPRING ADJUST
-
170403-098 COLLAR, SPRINGCOLLAR, SPRING
-
181603-889 RETAINER, SPRINGRETAINER, SPRING
-
190403-002 SPRING, SUSPENSIONSPRING, SUSPENSION
-
200423-087 WASHERWASHER
-
218428-002 NUT, LOCKNUT, LOCK
-
228409-040 SCREW, CAPSCREW, CAP
-
238408-820 SCREW, CAPSCREW, CAP
-
248409-000 SCREW, CAPSCREW, CAP
-
258409-060 SCREW, CAPSCREW, CAP
-
260436-276 REPAIR KIT, BOOT - REAR AXLEREPAIR KIT, BOOT - REAR AXLE
