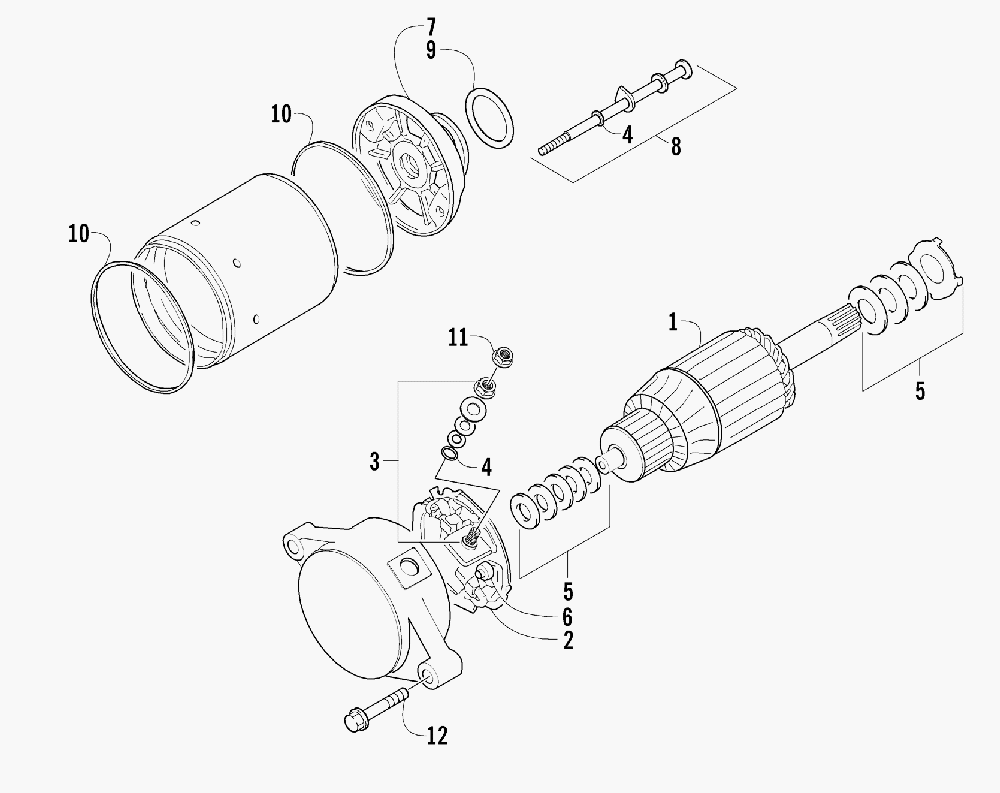

STARTER MOTOR ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2002ATF4AUSR] - 2002 года выпуска
-
№АртикулНазвание
-
3545-003 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
13008-554 ARMATUREARMATURE
-
23008-550 HOLDER SET, BRUSHHOLDER SET, BRUSH
-
33008-549 TERMINAL SET, BRUSH (INC. ONE NO. 4)TERMINAL SET, BRUSH (INC. ONE NO. 4)
-
43008-164 ...O-RING...O-RING
-
53008-099 WASHER SETWASHER SET
-
63008-551 SPRING, BRUSHSPRING, BRUSH
-
73008-552 BRACKET, FRONT - ASSEMBLYBRACKET, FRONT - ASSEMBLY
-
83423-289 BOLT SET (INC. TWO NO. 4)BOLT SET (INC. TWO NO. 4)
-
93423-272 O-RINGO-RING
-
103008-553 O-RINGO-RING
-
113423-195 NUTNUT
-
123004-756 SCREW, CAPSCREW, CAP
