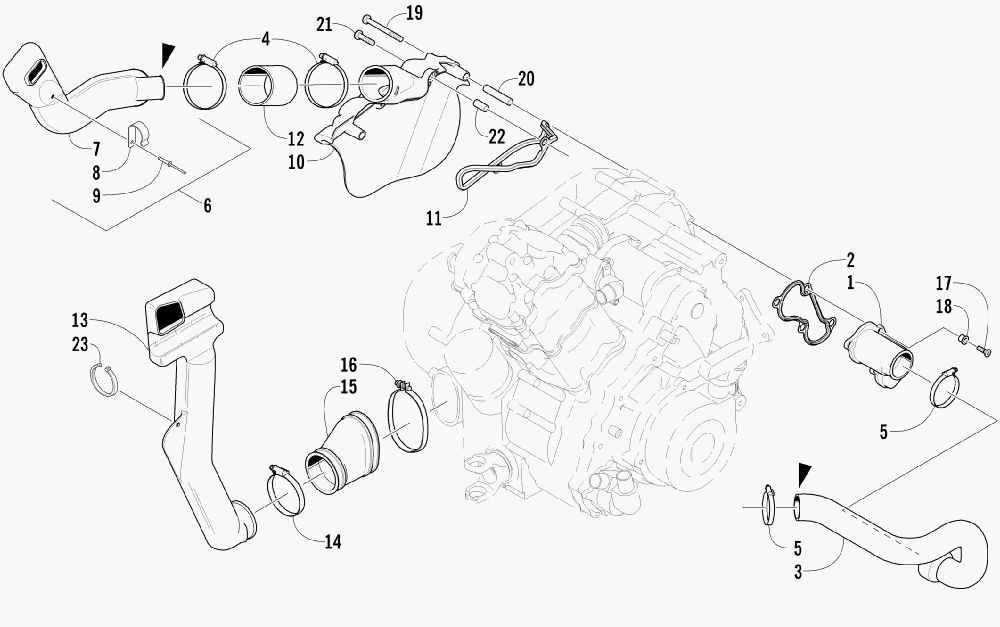

CASE/BELT COOLING ASSEMBLY для Arctic Cat 500 4X4 FIS AUTO (GREEN) [A2002ISM4USG] - 2002 года выпуска
-
№АртикулНазвание
-
10413-034 MANIFOLD, REAR COOLING DUCTMANIFOLD, REAR COOLING DUCT
-
20413-036 GASKET, REAR COOLING DUCTGASKET, REAR COOLING DUCT
-
30413-054 TUBE, BELT COOLING - LOWERTUBE, BELT COOLING - LOWER
-
40423-379 CLAMP, HOSECLAMP, HOSE
-
50423-383 CLAMP, TUBECLAMP, TUBE
-
60513-003 DUCT, COOLING - ASSEMBLY (INC 7-9)DUCT, COOLING - ASSEMBLY (INC 7-9)
-
70513-002 ...DUCT, COOLING...DUCT, COOLING
-
80423-344 ...CLIP, MOUNTING...CLIP, MOUNTING
-
90623-685 ...RIVET...RIVET
-
100413-030 CONNECTOR, DUCTCONNECTOR, DUCT
-
110413-037 GASKET, DUCT CONNECTORGASKET, DUCT CONNECTOR
-
120413-040 TUBE, BELT COOLING - UPPERTUBE, BELT COOLING - UPPER
-
130413-042 DUCT, BELT COOLINGDUCT, BELT COOLING
-
140423-380 CLAMP, HOSECLAMP, HOSE
-
150413-049 BOOT, DUCT - FRONTBOOT, DUCT - FRONT
-
163402-449 CLAMP, DUCTCLAMP, DUCT
-
178476-620 SCREW, MACHINESCREW, MACHINE
-
180423-372 SPACERSPACER
-
193423-393 BOLT, DUCTBOLT, DUCT
-
200423-331 SPACERSPACER
-
218410-620 SCREW, CAPSCREW, CAP
-
220423-314 SPACERSPACER
-
230123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
