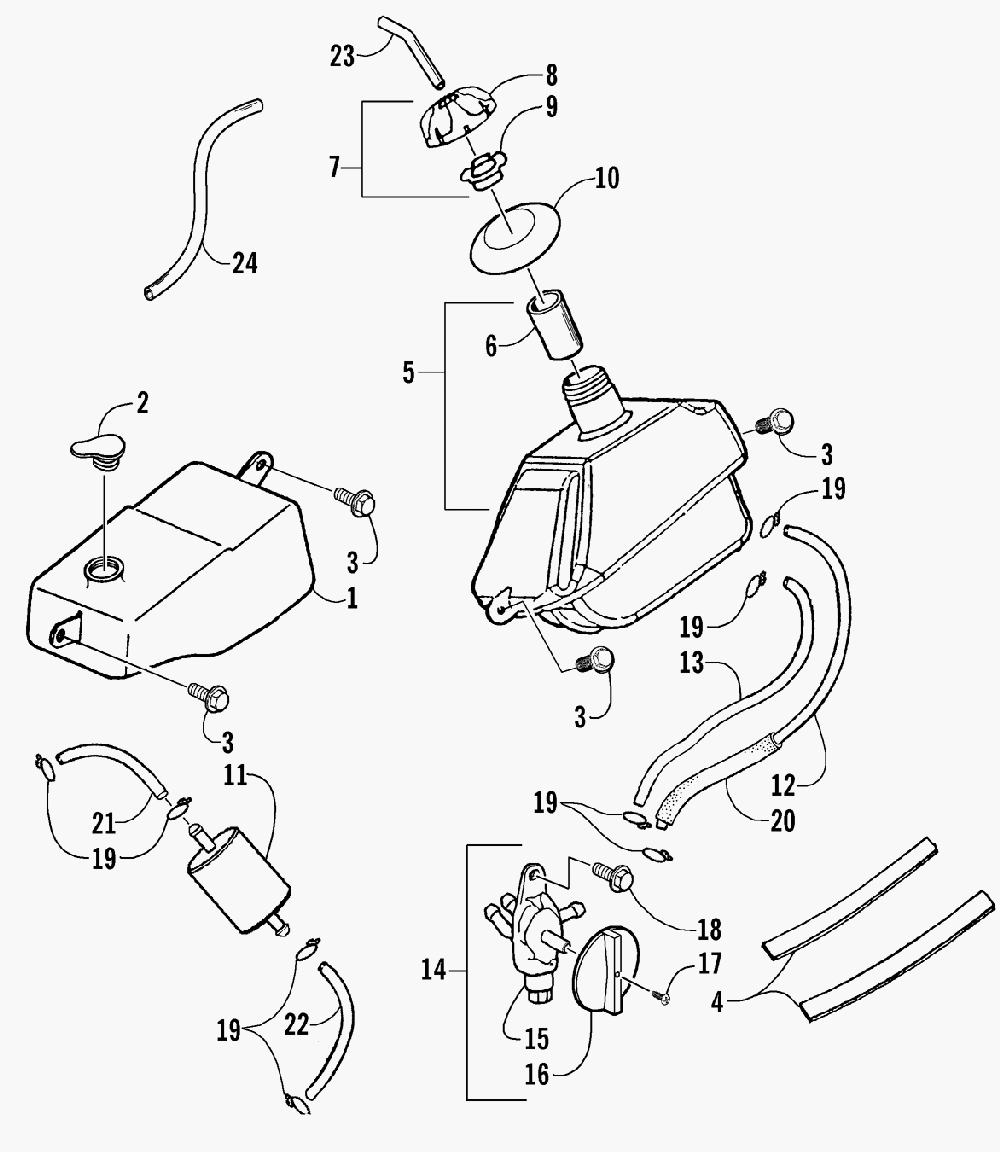

GAS TANK AND OIL TANK ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH (GREEN) [A2002ATB2BUSG] - 2002 года выпуска
-
№АртикулНазвание
-
13301-245 TANK, OILTANK, OIL
-
23301-246 CAP, OIL TANKCAP, OIL TANK
-
33301-306 SCREW, CAPSCREW, CAP
-
43301-076 PAD, FOAMPAD, FOAM
-
53301-073 TANK, GAS (INC. 6)TANK, GAS (INC. 6)
-
63301-084 ...TUBE, GAS TANK...TUBE, GAS TANK
-
73301-078 TANK CAP ASSEMBLY (INC. 8-9)TANK CAP ASSEMBLY (INC. 8-9)
-
83301-079 ...CAP, TANK...CAP, TANK
-
93301-081 ...GASKET, CAP...GASKET, CAP
-
103301-489 GASKET, FRONT COVER - RUBBERGASKET, FRONT COVER - RUBBER
-
113301-074 CUP, OIL FILTERCUP, OIL FILTER
-
123301-370 TUBETUBE
-
133301-369 TUBETUBE
-
143301-059 CUP, GAS (INC. 15-17)CUP, GAS (INC. 15-17)
-
153301-491 ...BODY, GAS CUP...BODY, GAS CUP
-
163301-080 ...KNOB, GAS CUP...KNOB, GAS CUP
-
173301-470 ...SCREW, MACHINE...SCREW, MACHINE
-
183301-317 SCREW, MACHINESCREW, MACHINE
-
193301-374 CLIPCLIP
-
203301-481 COVER, TUBECOVER, TUBE
-
213301-477 TUBETUBE
-
223301-478 TUBETUBE
-
233301-479 HOSE, BREATHERHOSE, BREATHER
-
243301-482 COVER, TUBECOVER, TUBE
