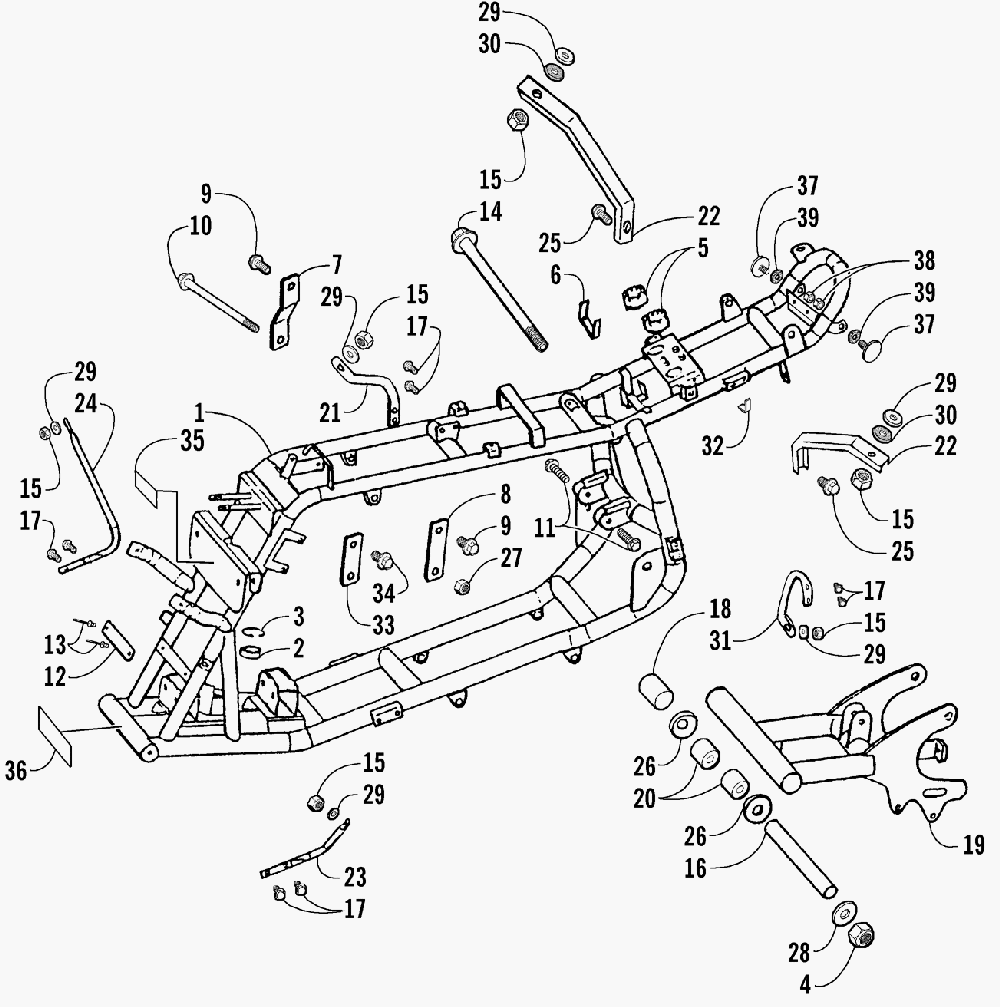

FRAME AND RELATED PARTS для Arctic Cat 90 Y-12 YOUTH (RED) [A2002ATB2BUSR] - 2002 года выпуска
-
№АртикулНазвание
-
13301-206 FRAMEFRAME
-
23301-409 BEARING, RADIAL BALLBEARING, RADIAL BALL
-
33301-381 CIRCLIPCIRCLIP
-
43301-284 NUT, NYLONNUT, NYLON
-
53301-260 BUMPER, RUBBERBUMPER, RUBBER
-
63301-077 PAD, FOAMPAD, FOAM
-
73301-211 PLATE, ENGINE MOUNTING - RIGHTPLATE, ENGINE MOUNTING - RIGHT
-
83301-212 PLATE, ENGINE MOUNTING - LEFTPLATE, ENGINE MOUNTING - LEFT
-
93301-400 SCREW, CAPSCREW, CAP
-
103301-403 SCREW, CAPSCREW, CAP
-
113301-485 SCREW, CAPSCREW, CAP
-
123301-209 PLATE, FRAME NO.PLATE, FRAME NO.
-
133301-286 RIVETRIVET
-
143301-407 SCREW, CAPSCREW, CAP
-
153301-281 NUT, NYLONNUT, NYLON
-
163301-227 SPACER, SWING ARMSPACER, SWING ARM
-
173301-306 SCREW, CAPSCREW, CAP
-
183301-225 SLEEVE, RUBBERSLEEVE, RUBBER
-
193301-224 SWING ARM SUB-ASSEMBLYSWING ARM SUB-ASSEMBLY
-
203301-226 BUSHINGBUSHING
-
213301-265 BRACKET, REAR COVER MOUNTING - LOWER RIGHTBRACKET, REAR COVER MOUNTING - LOWER RIGHT
-
223301-266 BRACKET, REAR COVER MOUNTING - UPPERBRACKET, REAR COVER MOUNTING - UPPER
-
233301-461 BRACKET, FRONT COVER MOUNTING - LEFTBRACKET, FRONT COVER MOUNTING - LEFT
-
243301-462 BRACKET, FRONT COVER MOUNTING - RIGHTBRACKET, FRONT COVER MOUNTING - RIGHT
-
253301-386 SCREW, CAPSCREW, CAP
-
263301-228 COVER, SWING ARM SEALCOVER, SWING ARM SEAL
-
273301-282 NUT, NYLONNUT, NYLON
-
283301-349 WASHERWASHER
-
293301-340 WASHERWASHER
-
303301-356 WASHER, RUBBERWASHER, RUBBER
-
313301-267 BRACKET, REAR COVER MOUNTING - LOWER LEFTBRACKET, REAR COVER MOUNTING - LOWER LEFT
-
323301-449 CLAMP, CABLE - RUBBERCLAMP, CABLE - RUBBER
-
333301-460 BRACKET, FUEL CUPBRACKET, FUEL CUP
-
343301-466 SCREW, CAPSCREW, CAP
-
353301-448 DECAL, BAR CODEDECAL, BAR CODE
-
363301-447 DECAL, CEDECAL, CE
-
373301-456 REFLECTOR - REDREFLECTOR - RED
-
383301-327 NUT, FLANGENUT, FLANGE
-
393301-356 WASHER, RUBBERWASHER, RUBBER
