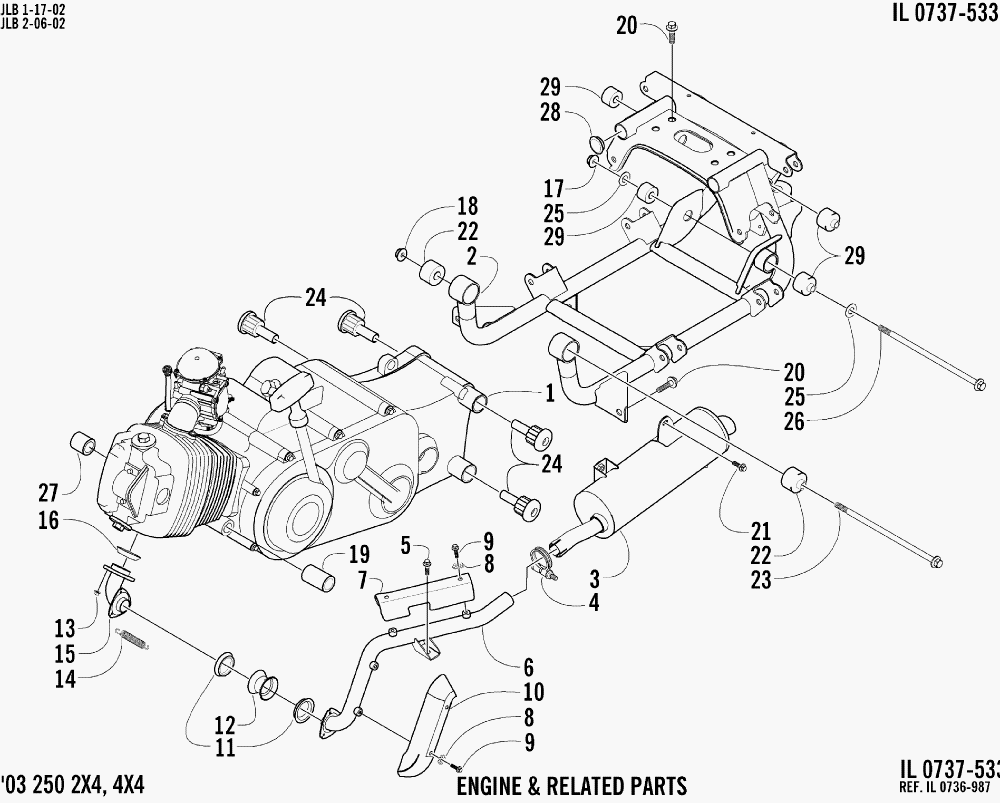

ENGINE AND RELATED PARTS для Arctic Cat 250 4X4 (RED) [A2003ATE4AUSR] - 2003 года выпуска
-
№АртикулНазвание
-
10462-016 ENGINE (4X4)ENGINE (4X4)
-
20506-189 SUB-FRAMESUB-FRAME
-
30512-011 MUFFLERMUFFLER
-
40423-092 CLAMP, EXHAUSTCLAMP, EXHAUST
-
58408-812 SCREW, CAPSCREW, CAP
-
60512-014 PIPE, EXHAUSTPIPE, EXHAUST
-
70412-024 COVER, EXHAUST - REARCOVER, EXHAUST - REAR
-
88053-211 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
98477-610 SCREW, CAPSCREW, CAP
-
100412-023 COVER, EXHAUSTCOVER, EXHAUST
-
110612-887 GASKET, EXHAUSTGASKET, EXHAUST
-
120512-077 COUPLER, EXHAUSTCOUPLER, EXHAUST
-
138424-802 NUTNUT
-
140123-321 SPRING, EXTENSIONSPRING, EXTENSION
-
150512-008 PIPE, HEADERPIPE, HEADER
-
163402-300 SEAL, EXHAUST PIPESEAL, EXHAUST PIPE
-
178432-002 NUTNUT
-
188422-202 NUTNUT
-
190402-231 SPACER, ENGINE MOUNT - LONGSPACER, ENGINE MOUNT - LONG
-
208409-020 SCREW, CAPSCREW, CAP
-
218408-816 SCREW, CAPSCREW, CAP
-
223402-264 MOUNT, ENGINEMOUNT, ENGINE
-
233423-236 SCREW, CAPSCREW, CAP
-
243402-263 MOUNT, ENGINEMOUNT, ENGINE
-
258050-272 WASHERWASHER
-
263423-221 SCREW, CAPSCREW, CAP
-
270402-232 SPACER, ENGINE MOUNT - SHORTSPACER, ENGINE MOUNT - SHORT
-
280406-320 CAP, SUB-FRAMECAP, SUB-FRAME
-
293402-232 MOUNT, ENGINEMOUNT, ENGINE
