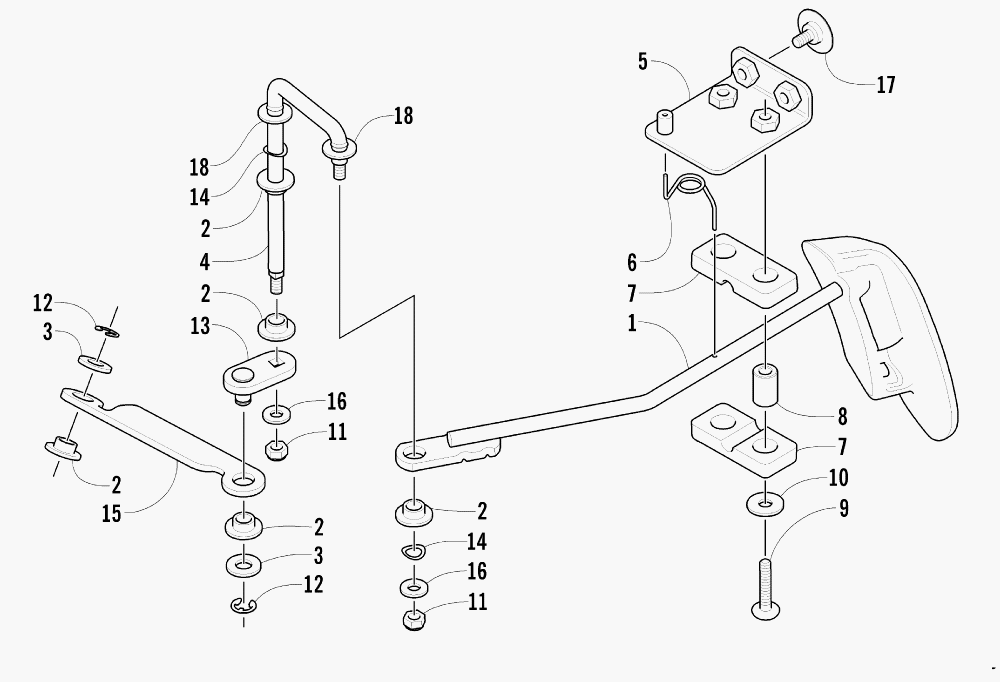

FRONT DRIVE SHIFT LINKAGE ASSEMBLY для Arctic Cat 400 4X4 AUTO (GREEN) [A2003ATH4BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
10502-291 SHIFTERSHIFTER
-
20423-091 BUSHINGBUSHING
-
38050-247 WASHERWASHER
-
40402-821 ARM, SHIFTERARM, SHIFTER
-
50502-234 PLATE, MOUNTINGPLATE, MOUNTING
-
60402-828 SPRING, TORSIONSPRING, TORSION
-
70406-363 BUSHINGBUSHING
-
80402-256 COLLARCOLLAR
-
98476-630 SCREW, MACHINESCREW, MACHINE
-
108050-222 WASHERWASHER
-
110624-250 NUT, LOCKNUT, LOCK
-
120124-057 E-RINGE-RING
-
130502-295 ARM, SELECTORARM, SELECTOR
-
140423-368 WASHER, WAVEWASHER, WAVE
-
150502-396 CROSS-LINKCROSS-LINK
-
160423-348 WASHERWASHER
-
170423-101 SCREW, BODYSCREW, BODY
-
180123-053 WASHERWASHER
