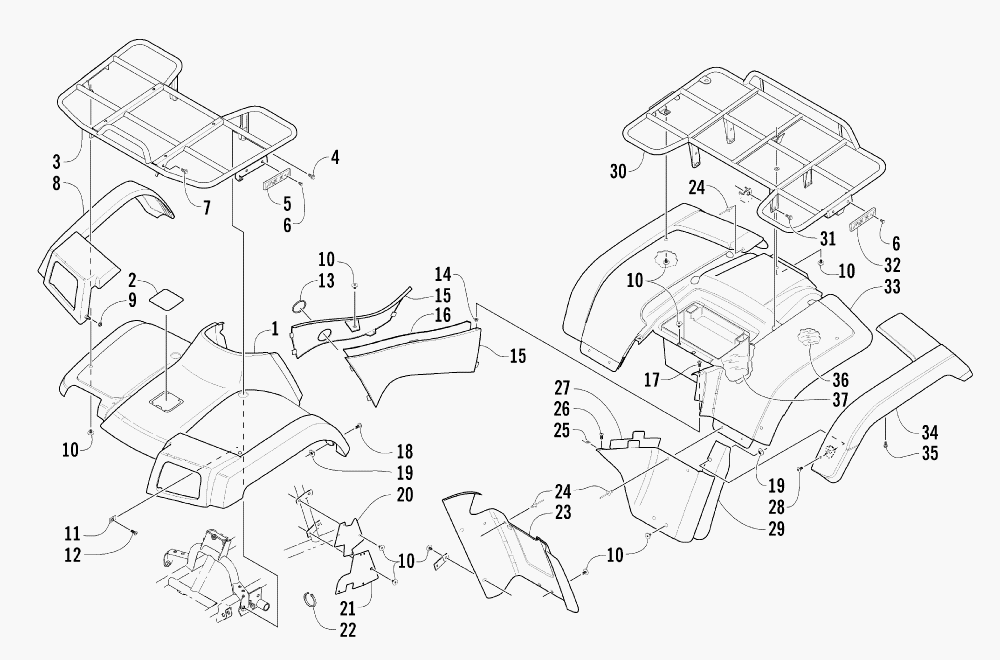

BODY PANEL ASSEMBLY для Arctic Cat 400 4X4 AUTO (RED) [A2003ATH4BUSR] - 2003 года выпуска
-
№АртикулНазвание
-
10506-616 PANEL, FENDER - FRONT (INC. 2) (RED)PANEL, FENDER - FRONT (INC. 2) (RED)
-
10506-584 PANEL, FENDER - FRONT (INC. 2) (GREEN)PANEL, FENDER - FRONT (INC. 2) (GREEN)
-
21406-142 ... COVER, ACCESS (RED)... COVER, ACCESS (RED)
-
21406-141 ... COVER, ACCESS (GREEN)... COVER, ACCESS (GREEN)
-
30506-547 RACK - FRONTRACK - FRONT
-
48408-816 SCREW, CAPSCREW, CAP
-
50606-526 REFLECTOR, FRONT - AMBERREFLECTOR, FRONT - AMBER
-
60623-269 CLIP, RETAININGCLIP, RETAINING
-
70423-360 SCREW, CAPSCREW, CAP
-
80506-550 FLARE - FRONT - RIGHTFLARE - FRONT - RIGHT
-
80506-551 FLARE - FRONT - LEFTFLARE - FRONT - LEFT
-
90423-357 NUT, STAMPEDNUT, STAMPED
-
100423-101 SCREW, BODYSCREW, BODY
-
110423-031 NUT, SPEEDNUT, SPEED
-
128477-616 SCREW, MACHINESCREW, MACHINE
-
130470-404 GROMMET, FUEL SHUT-OFF VALVEGROMMET, FUEL SHUT-OFF VALVE
-
140123-010 NUT, EXPANSIONNUT, EXPANSION
-
150506-548 PANEL, SIDE - RIGHT (RED)PANEL, SIDE - RIGHT (RED)
-
150506-243 PANEL, SIDE - LEFT (RED)PANEL, SIDE - LEFT (RED)
-
150506-549 PANEL, SIDE - RIGHT (GREEN)PANEL, SIDE - RIGHT (GREEN)
-
150506-673 PANEL, SIDE - LEFT (GREEN)PANEL, SIDE - LEFT (GREEN)
-
160412-142 SHIELD, HEATSHIELD, HEAT
-
170423-068 SCREW, MACHINESCREW, MACHINE
-
180423-356 SCREW, SHOULDERSCREW, SHOULDER
-
190423-077 T-NUT W/TEETHT-NUT W/TEETH
-
201406-063 PANEL, FENDER - INNER - RIGHTPANEL, FENDER - INNER - RIGHT
-
201406-064 PANEL, FENDER - INNER - LEFTPANEL, FENDER - INNER - LEFT
-
211406-006 PANEL, FENDER - INNERPANEL, FENDER - INNER
-
220123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
230406-941 PANEL, KICK - RIGHTPANEL, KICK - RIGHT
-
230506-626 PANEL, KICK - LEFTPANEL, KICK - LEFT
-
240423-046 RIVET, PLASTICRIVET, PLASTIC
-
250423-060 CLIP, TINERMANCLIP, TINERMAN
-
260623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
270412-140 SHIELD, HEATSHIELD, HEAT
-
280423-355 SCREW, SHOULDERSCREW, SHOULDER
-
290506-750 FENDER EXTENSION - REAR - RIGHTFENDER EXTENSION - REAR - RIGHT
-
290406-085 FENDER EXTENSION - REAR - LEFTFENDER EXTENSION - REAR - LEFT
-
300506-821 RACK - REARRACK - REAR
-
318409-020 SCREW, CAPSCREW, CAP
-
320606-029 REFLECTOR, REAR - REDREFLECTOR, REAR - RED
-
330506-620 PANEL, FENDER - REAR (RED)PANEL, FENDER - REAR (RED)
-
330506-621 PANEL, FENDER - REAR (GREEN)PANEL, FENDER - REAR (GREEN)
-
340506-552 FLARE, REAR - RIGHTFLARE, REAR - RIGHT
-
340506-553 FLARE, REAR - LEFTFLARE, REAR - LEFT
-
350423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
360412-124 SHIELD, HEATSHIELD, HEAT
-
370412-147 SHIELD, HEATSHIELD, HEAT
