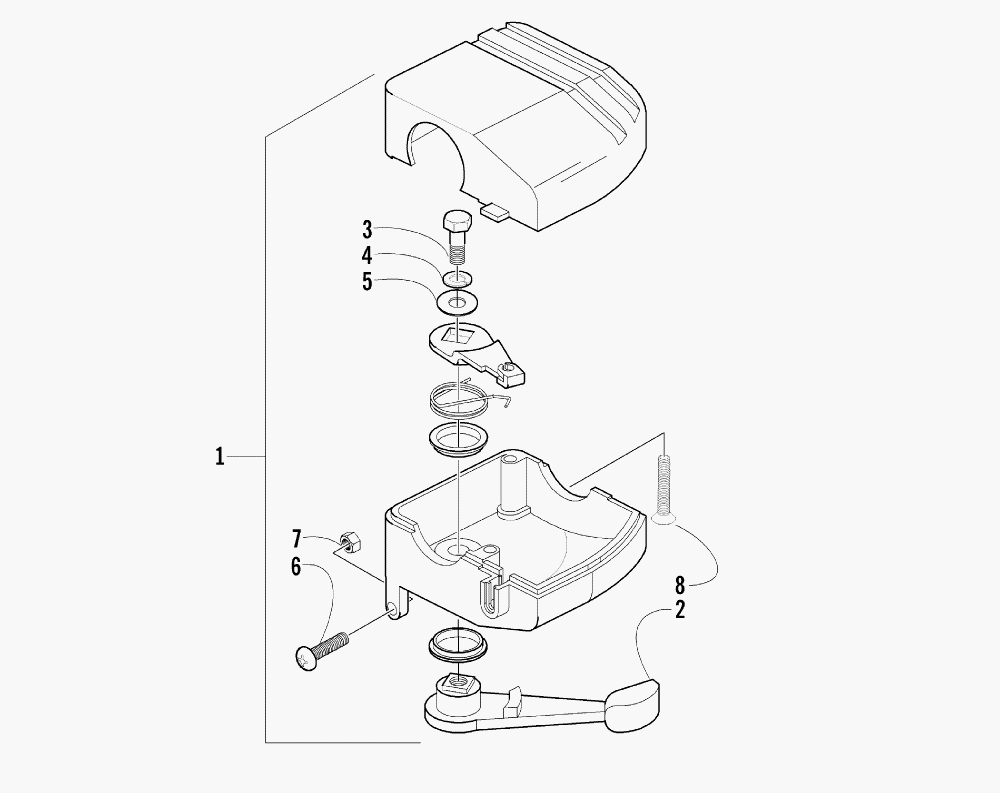

THROTTLE CASE ASSEMBLY для Arctic Cat 500 4X4 FIS MAN (GREEN) [A2003ISM4AUSG] - 2003 года выпуска
-
№АртикулНазвание
-
13509-003 CASE, THROTTLE - ASSEMBLY (INC. 2-8)CASE, THROTTLE - ASSEMBLY (INC. 2-8)
-
23409-001 ...LEVER...LEVER
-
33004-533 ...SCREW, CAP...SCREW, CAP
-
43004-447 ...WASHER, LOCK...WASHER, LOCK
-
53003-030 ...WASHER...WASHER
-
63423-014 ...SCREW...SCREW
-
73423-327 ...NUT...NUT
-
83423-199 ...SCREW...SCREW
