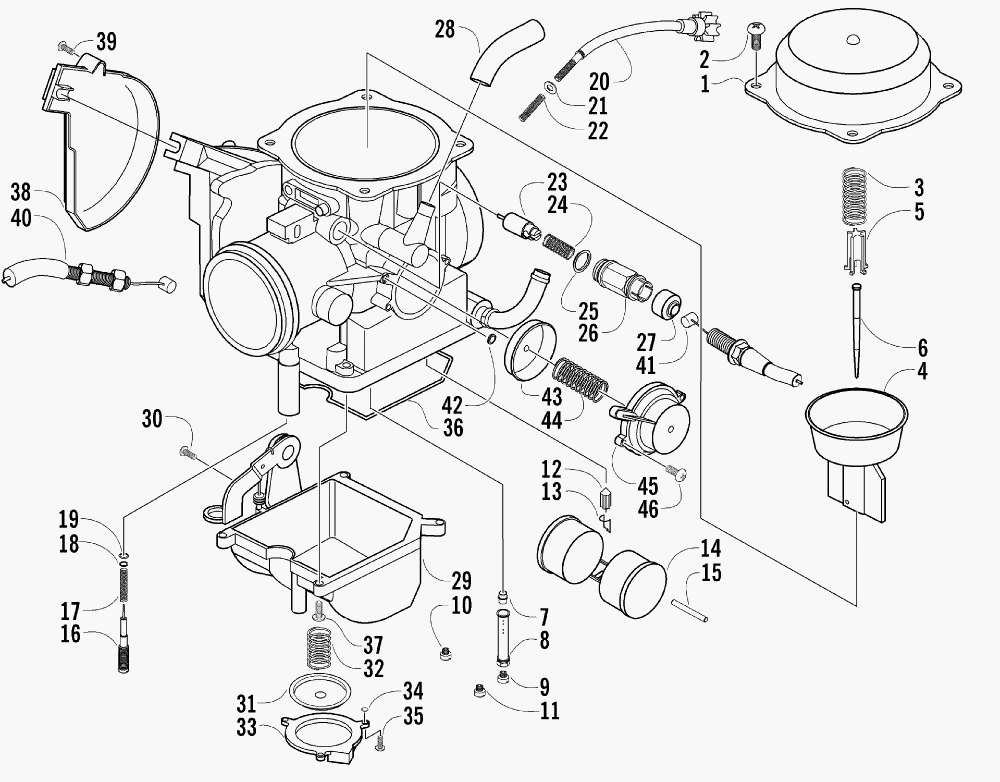

CARBURETOR для Arctic Cat 500 4X4 TRV AUTO [A2003TDM4BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
0470-458 CARBURETOR ASSY - KEIHIN-CVK 36CARBURETOR ASSY - KEIHIN-CVK 36
-
15507-001 COVER, TOPCOVER, TOP
-
25507-002 SCREW, TOP COVERSCREW, TOP COVER
-
35507-085 SPRINGSPRING
-
45507-099 PISTON, VACUUMPISTON, VACUUM
-
55507-005 SEAT, SPRINGSEAT, SPRING
-
65507-100 JET NEEDLEJET NEEDLE
-
75507-007 NEEDLE JETNEEDLE JET
-
85507-047 HOLDER, NEEDLE JETHOLDER, NEEDLE JET
-
95507-041 MAIN JET - 147MAIN JET - 147
-
95507-086 MAIN JET - 148 (OPTIONAL)MAIN JET - 148 (OPTIONAL)
-
95507-009 MAIN JET - 150 (OPTIONAL)MAIN JET - 150 (OPTIONAL)
-
95507-043 MAIN JET - 142 (OPTIONAL)MAIN JET - 142 (OPTIONAL)
-
95507-044 MAIN JET - 140 (OPTIONAL)MAIN JET - 140 (OPTIONAL)
-
105507-101 SLOW JETSLOW JET
-
115507-092 STARTER JET - 90STARTER JET - 90
-
125507-107 VALVE, FLOAT - SET (INC. 13)VALVE, FLOAT - SET (INC. 13)
-
145507-039 FLOAT SET (INC. 15)FLOAT SET (INC. 15)
-
165507-108 SCREW, PILOT AIR - SET (INC. 17-19)SCREW, PILOT AIR - SET (INC. 17-19)
-
205507-027 SCREW, IDLE ADJUSTSCREW, IDLE ADJUST
-
215507-028 WASHERWASHER
-
225507-029 SPRINGSPRING
-
235507-022 VALVE, STARTERVALVE, STARTER
-
245507-023 SPRINGSPRING
-
255507-024 O-RINGO-RING
-
265507-025 CAPCAP
-
275507-026 CAP, RUBBERCAP, RUBBER
-
285507-084 TUBE, VINYLTUBE, VINYL
-
295507-065 CHAMBER, FLOAT - ASSEMBLY (INC. 30-36)CHAMBER, FLOAT - ASSEMBLY (INC. 30-36)
-
305507-050 ...SCREW, DRAIN...SCREW, DRAIN
-
315507-031 ...DIAPHRAGM ASSEMBLY...DIAPHRAGM ASSEMBLY
-
325507-032 ...SPRING...SPRING
-
345507-034 ...U-RING...U-RING
-
355507-035 ...SCREW...SCREW
-
365507-067 ...O-RING, FLOAT CHAMBER...O-RING, FLOAT CHAMBER
-
375507-017 SCREWSCREW
-
385507-036 COVERCOVER
-
395507-037 SCREWSCREW
-
400487-021 CABLE, THROTTLECABLE, THROTTLE
-
410487-016 CABLE, CHOKECABLE, CHOKE
-
425507-102 U-RINGU-RING
-
435507-103 DIAPHRAGM ASSEMBLYDIAPHRAGM ASSEMBLY
-
445507-104 SPRINGSPRING
-
455507-105 COVERCOVER
-
465507-106 SCREWSCREW
