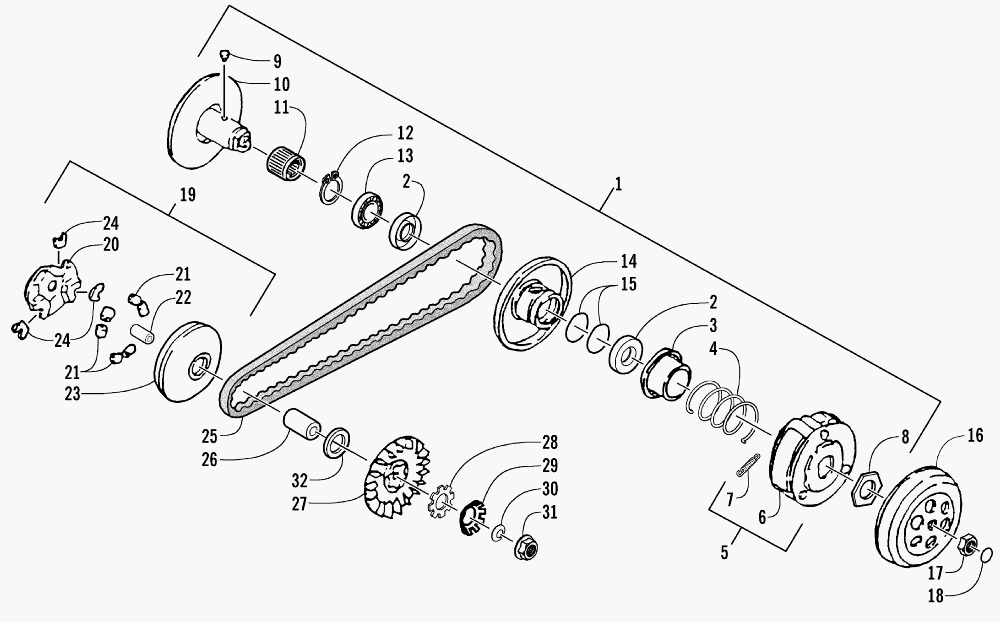

CLUTCH ASSEMBLY для Arctic Cat 90 Y-12 YOUTH UTILITY (GREEN) [A2003ATB2BUSG] - 2003 года выпуска
-
№АртикулНазвание
-
13301-099 DRIVEN FACE ASSEMBLY (INC. 2-15)DRIVEN FACE ASSEMBLY (INC. 2-15)
-
23301-442 ... SEAL, OIL... SEAL, OIL
-
33301-118 ... SEAT, SECONDARY SPRING... SEAT, SECONDARY SPRING
-
43301-117 ... SPRING, COMPRESSION... SPRING, COMPRESSION
-
53301-112 ... WEIGHT SET, CLUTCH (INC. 6-7)... WEIGHT SET, CLUTCH (INC. 6-7)
-
63301-110 ...... CARRIER, CLUTCH WEIGHT...... CARRIER, CLUTCH WEIGHT
-
73301-111 ...... SPRING...... SPRING
-
83301-277 ... NUT... NUT
-
93301-116 ... PIN, GUIDE... PIN, GUIDE
-
103301-114 ... FACE, FIXED DRIVEN... FACE, FIXED DRIVEN
-
113301-420 ... BEARING, NEEDLE... BEARING, NEEDLE
-
123301-380 ... CIRCLIP... CIRCLIP
-
133301-417 ... BEARING, RADIAL BALL... BEARING, RADIAL BALL
-
143301-115 ... FACE, MOVABLE DRIVEN... FACE, MOVABLE DRIVEN
-
153301-302 ... O-RING... O-RING
-
163301-100 COVER, CLUTCH CARRIERCOVER, CLUTCH CARRIER
-
173301-325 NUTNUT
-
183301-298 O-RINGO-RING
-
193301-102 DRIVE FACE ASSEMBLY (INC. 20-24)DRIVE FACE ASSEMBLY (INC. 20-24)
-
203301-105 ... PLATE, CAM... PLATE, CAM
-
213301-104 ... ROLLER, WEIGHT... ROLLER, WEIGHT
-
223301-431 ... BUSHING... BUSHING
-
233301-103 ... FACE, MOVABLE DRIVE... FACE, MOVABLE DRIVE
-
243301-106 ... SLIDE, CAM PLATE... SLIDE, CAM PLATE
-
253301-113 V-BELTV-BELT
-
263301-430 BUSHINGBUSHING
-
273301-101 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
283301-109 WASHER, LOCK - EXTERNAL TOOTHWASHER, LOCK - EXTERNAL TOOTH
-
293301-107 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
303301-108 WASHER, CONE SPRINGWASHER, CONE SPRING
-
313301-331 NUT, FLANGENUT, FLANGE
-
323301-451 BUSHING, CLUTCHBUSHING, CLUTCH
