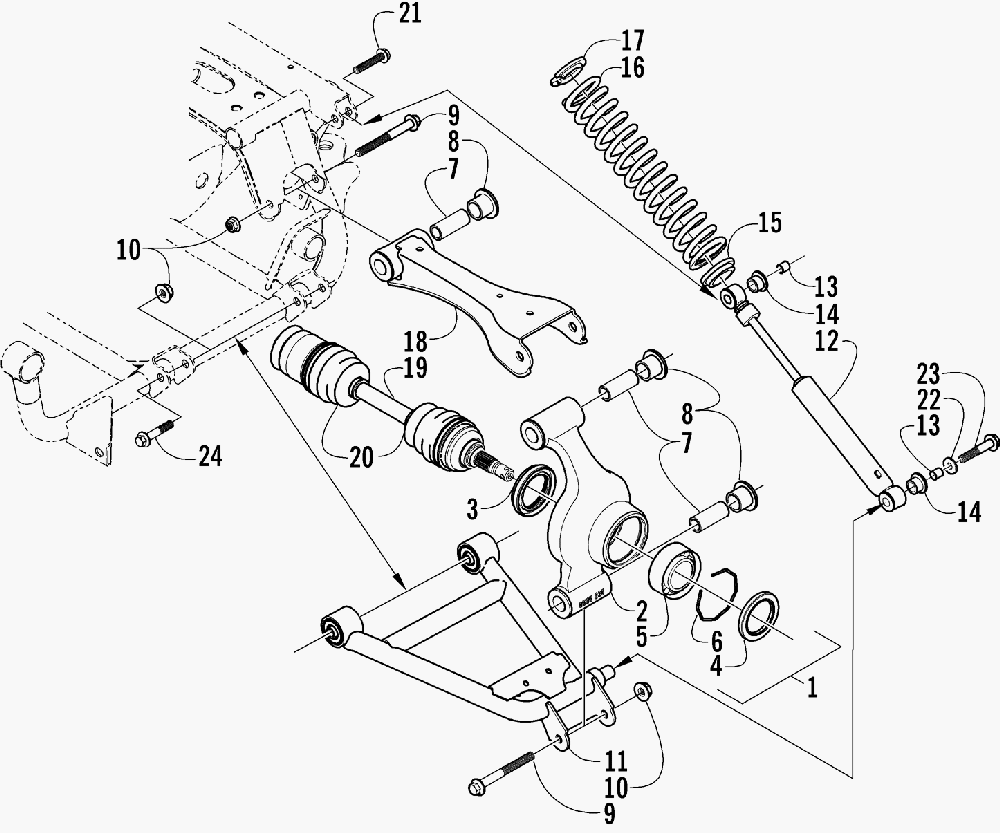

REAR SUSPENSION ASSEMBLY для Arctic Cat 300 4X4 MRP (GREEN) [A2004ATF4AUSS] - 2004 года выпуска
-
№АртикулНазвание
-
10504-226 KNUCKLE, RIGHT - REAR - ASSEMBLY (INC. 2-6)KNUCKLE, RIGHT - REAR - ASSEMBLY (INC. 2-6)
-
10504-227 KNUCKLE, LEFT - REAR - ASSEMBLY (INC. 2-6)KNUCKLE, LEFT - REAR - ASSEMBLY (INC. 2-6)
-
20504-224 ...KNUCKLE - RIGHT...KNUCKLE - RIGHT
-
20504-225 ...KNUCKLE - LEFT...KNUCKLE - LEFT
-
30402-069 ...SEAL, WHEEL BEARING - REAR...SEAL, WHEEL BEARING - REAR
-
40402-089 ...SEAL, WHEEL BEARING - FRONT...SEAL, WHEEL BEARING - FRONT
-
50402-275 ...BEARING, WHEEL...BEARING, WHEEL
-
60423-034 ...CLIP, BEARING...CLIP, BEARING
-
70403-038 COLLAR, SUSPENSION BUSHINGCOLLAR, SUSPENSION BUSHING
-
80403-032 BUSHING, SUSPENSIONBUSHING, SUSPENSION
-
98409-000 SCREW, CAPSCREW, CAP
-
108428-002 NUT, LOCKNUT, LOCK
-
110504-030 A-ARM, REAR - LOWER RIGHTA-ARM, REAR - LOWER RIGHT
-
110504-031 A-ARM, REAR - LOWER LEFTA-ARM, REAR - LOWER LEFT
-
120404-014 SHOCK ABSORBER - REAR (INC. 13-14)SHOCK ABSORBER - REAR (INC. 13-14)
-
130403-028 ...SLEEVE, SHOCK ABSORBER...SLEEVE, SHOCK ABSORBER
-
140604-310 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
150403-104 RETAINER, SPRING - LOWERRETAINER, SPRING - LOWER
-
160403-002 SPRING, SUSPENSION - BLACK (MRP RED/MRP GREEN)SPRING, SUSPENSION - BLACK (MRP RED/MRP GREEN)
-
171603-889 RETAINER, SPRINGRETAINER, SPRING
-
180504-044 ARM, REAR - UPPERARM, REAR - UPPER
-
191402-002 AXLE, DRIVE (INC. 20)AXLE, DRIVE (INC. 20)
-
200436-276 ...REPAIR KIT, BOOT - REAR AXLE...REPAIR KIT, BOOT - REAR AXLE
-
218409-040 SCREW, CAPSCREW, CAP
-
220423-087 WASHERWASHER
-
238408-820 SCREW, CAPSCREW, CAP
-
248409-060 SCREW, CAPSCREW, CAP
