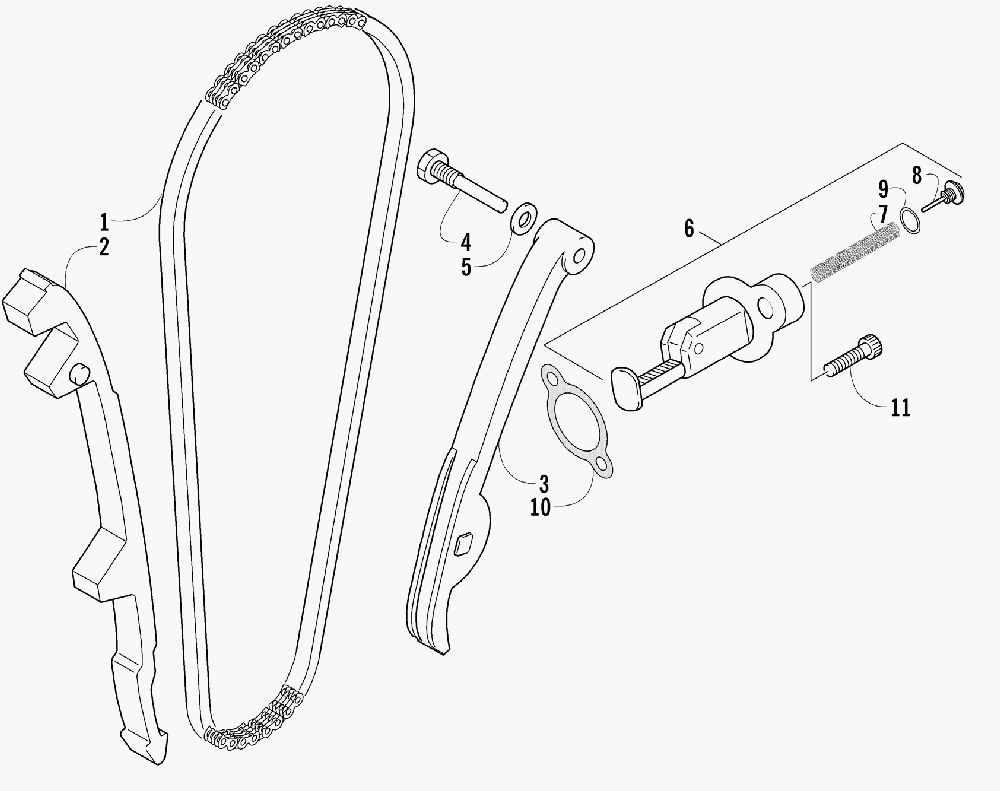

CAM CHAIN ASSEMBLY для Arctic Cat 400 2X4 FIS MAN (RED) [A2004ISH2AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13402-281 CHAIN, CAMCHAIN, CAM
-
23402-612 GUIDE, CAM CHAINGUIDE, CAM CHAIN
-
33402-613 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
43423-074 BOLTBOLT
-
53003-188 WASHERWASHER
-
63402-614 ADJUSTER, TENSIONER - ASSEMBLY (INC. 7-9)ADJUSTER, TENSIONER - ASSEMBLY (INC. 7-9)
-
73423-484 ...SPRING...SPRING
-
83423-485 ...PLUG...PLUG
-
93423-286 ...O-RING...O-RING
-
103402-287 GASKET, ADJUSTERGASKET, ADJUSTER
-
113004-576 BOLTBOLT
