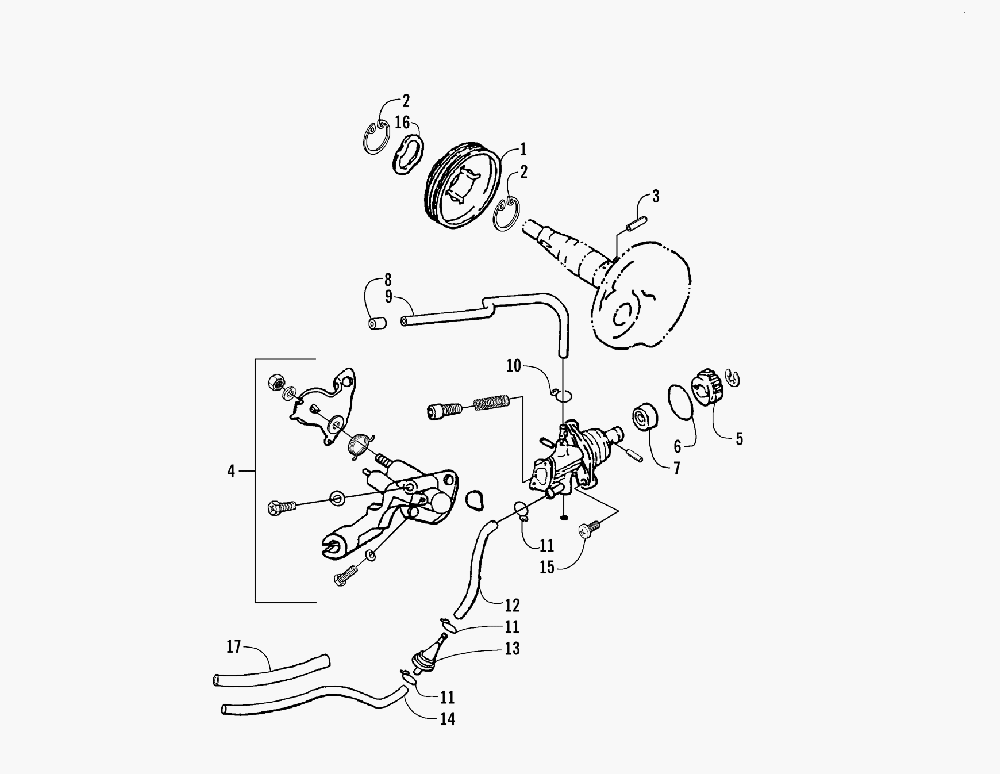

OIL PUMP ASSEMBLY для Arctic Cat 50 2X4 AUTO (RED) [A2004ATA2BUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13301-035 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
23301-379 CIRCLIPCIRCLIP
-
33301-425 PIN, CRANKSHAFTPIN, CRANKSHAFT
-
43301-586 PUMP, OIL - ASSEMBLY (INC. 5-7)PUMP, OIL - ASSEMBLY (INC. 5-7)
-
53301-034 ...GEAR, OIL PUMP...GEAR, OIL PUMP
-
63301-300 ...O-RING...O-RING
-
73301-433 ...SEAL, OIL...SEAL, OIL
-
83301-033 RING, STEELRING, STEEL
-
93301-366 TUBE, OILTUBE, OIL
-
103301-373 CLIPCLIP
-
113301-374 CLIPCLIP
-
123301-371 TUBETUBE
-
133301-075 CUP, OIL FILTERCUP, OIL FILTER
-
143301-372 TUBETUBE
-
153301-317 SCREW, MACHINESCREW, MACHINE
-
163301-036 WASHER, WAVEWASHER, WAVE
-
173301-585 COVER, TUBECOVER, TUBE
