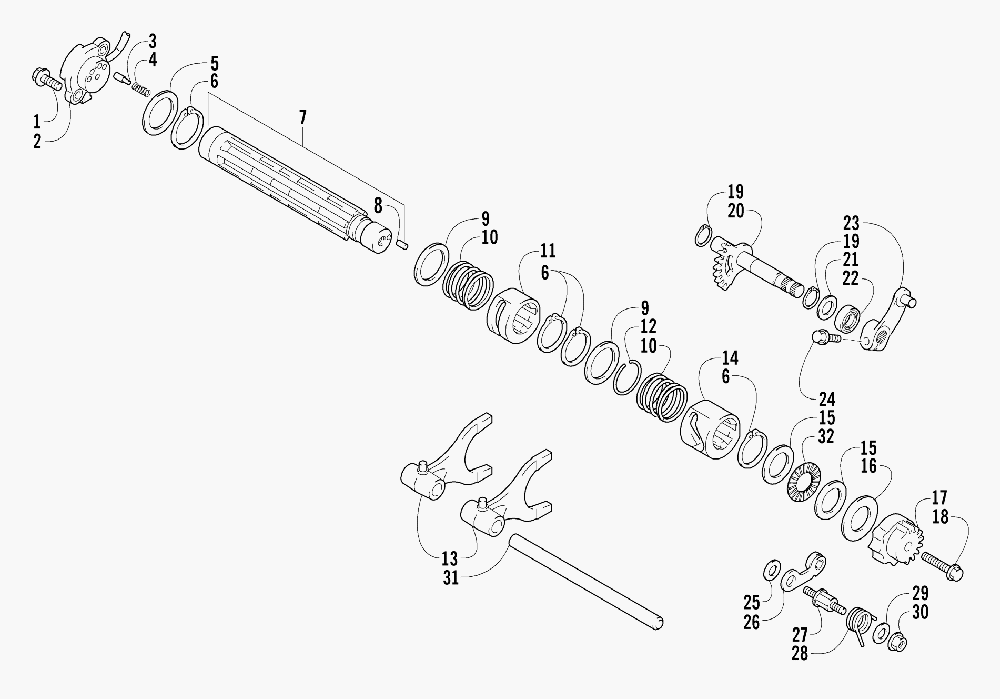

GEAR SHIFTING ASSEMBLY для Arctic Cat 500 4X4 TBX AUTO (GREEN) [A2004BXM4BUSG] - 2004 года выпуска
-
№АртикулНазвание
-
13423-418 BOLTBOLT
-
23530-042 BASE, GEAR SHIFT - ASSEMBLYBASE, GEAR SHIFT - ASSEMBLY
-
33423-044 CONTACTCONTACT
-
43402-087 SPRINGSPRING
-
53423-421 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
63423-191 CIRCLIP, CAM SPRINGCIRCLIP, CAM SPRING
-
73402-826 SHAFT, GEAR SHIFT (INC. 8)SHAFT, GEAR SHIFT (INC. 8)
-
83423-114 ...PIN...PIN
-
93402-382 WASHER, CAM SPRINGWASHER, CAM SPRING
-
103446-280 SPRING, CAMSPRING, CAM
-
113402-827 CAM, REVERSECAM, REVERSE
-
123423-416 C-RING, CAMC-RING, CAM
-
133446-353 FORK, SHIFTFORK, SHIFT
-
143402-828 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
153402-381 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
163423-446 WASHER, GEAR SHIFT CAM PLATEWASHER, GEAR SHIFT CAM PLATE
-
173402-642 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
183004-376 BOLT, GEAR SHIFT CAM PLATEBOLT, GEAR SHIFT CAM PLATE
-
193423-358 CIRCLIP, SUB-GEAR SHIFT SHAFTCIRCLIP, SUB-GEAR SHIFT SHAFT
-
203402-747 SHAFT, SUB-GEAR SHIFTSHAFT, SUB-GEAR SHIFT
-
211691-043 WASHER, SUB-GEAR SHIFT SHAFTWASHER, SUB-GEAR SHIFT SHAFT
-
223402-076 SEAL, SUB-GEAR SHIFT SHAFTSEAL, SUB-GEAR SHIFT SHAFT
-
233402-434 ARM, SELECTARM, SELECT
-
243004-341 BOLT, SELECT ARMBOLT, SELECT ARM
-
253423-141 WASHER, CAM STOPPERWASHER, CAM STOPPER
-
263402-746 STOPPER, CAMSTOPPER, CAM
-
273446-048 SUPPORT, CAM STOPPERSUPPORT, CAM STOPPER
-
283423-511 SPRING, CAM STOPPERSPRING, CAM STOPPER
-
293423-438 WASHER, CAM STOPPER SPRINGWASHER, CAM STOPPER SPRING
-
303004-488 NUT, CAM STOPPER SPRINGNUT, CAM STOPPER SPRING
-
313446-266 SHAFT, SHIFT FORKSHAFT, SHIFT FORK
-
323402-829 BEARINGBEARING
