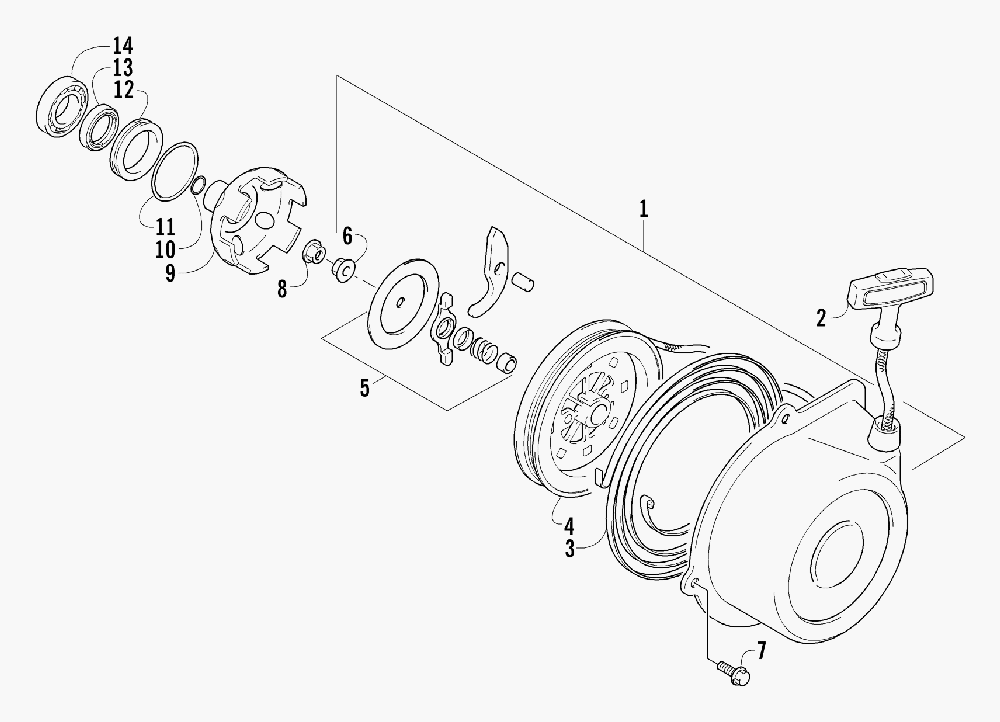

RECOIL STARTER ASSEMBLY для Arctic Cat 500 4X4 TBX AUTO (RED) [A2004BXM4BUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13445-003 STARTER, RECOIL - ASSEMBLY (INC. 2-6)STARTER, RECOIL - ASSEMBLY (INC. 2-6)
-
23445-011 ...ROPE ASSEMBLY...ROPE ASSEMBLY
-
33445-007 ...SPRING, SPIRAL...SPRING, SPIRAL
-
43445-004 ...REEL...REEL
-
53445-016 ...RATCHET ASSEMBLY...RATCHET ASSEMBLY
-
63004-488 ...NUT...NUT
-
73423-428 SCREW, CAPSCREW, CAP
-
83004-491 NUTNUT
-
93445-029 CUP, STARTERCUP, STARTER
-
103423-053 O-RINGO-RING
-
113423-063 O-RINGO-RING
-
123402-119 SPACERSPACER
-
133402-070 SEAL, OILSEAL, OIL
-
143402-051 BEARINGBEARING
