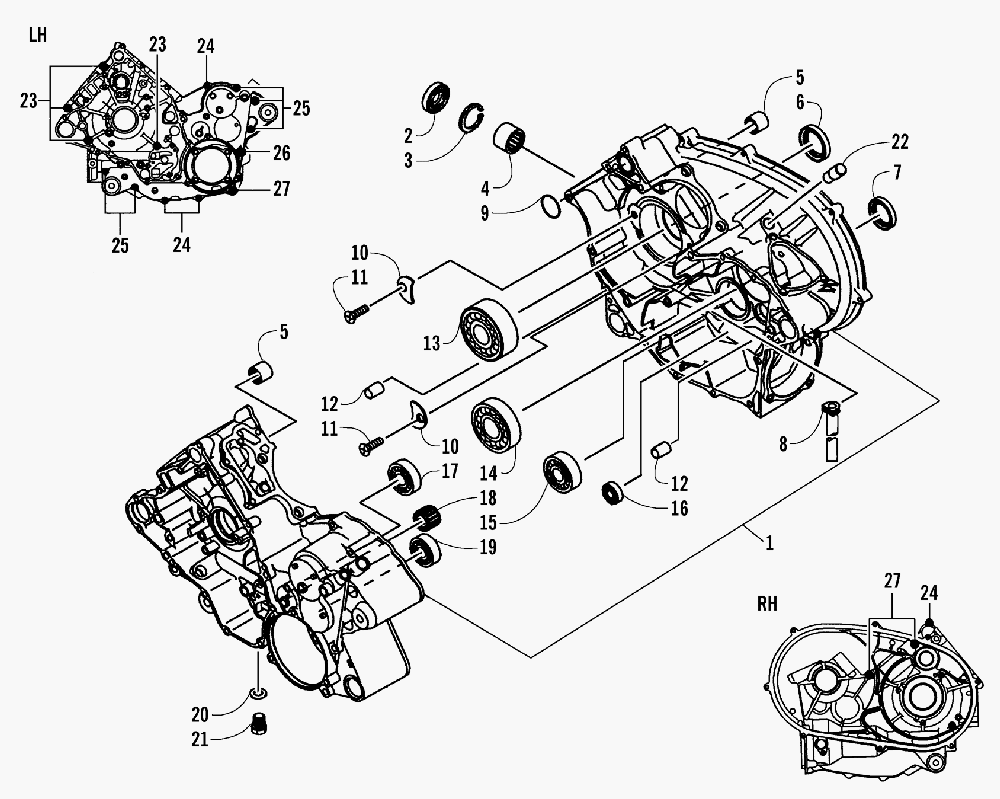

CRANKCASE ASSEMBLY для Arctic Cat 650 4X4 AUTO MRP (CAT GREEN) [A2004ISR4BUSV] - 2004 года выпуска
-
№АртикулНазвание
-
13201-156 CRANKCASECRANKCASE
-
23201-327 SEAL, OILSEAL, OIL
-
33201-213 CIRCLIPCIRCLIP
-
43201-318 BEARINGBEARING
-
53201-315 BEARINGBEARING
-
63201-324 SEAL, OILSEAL, OIL
-
73201-328 SEAL, OILSEAL, OIL
-
83201-396 TUBE, OIL RETURNTUBE, OIL RETURN
-
93201-332 O-RINGO-RING
-
103201-157 PLATE, POSITIONPLATE, POSITION
-
113201-193 SCREWSCREW
-
123201-305 PINPIN
-
133201-308 BEARINGBEARING
-
143201-309 BEARINGBEARING
-
153201-252 BEARINGBEARING
-
163201-250 BEARINGBEARING
-
173201-312 BEARINGBEARING
-
183201-316 BEARINGBEARING
-
193201-251 BEARINGBEARING
-
203201-349 GASKET, DRAIN PLUGGASKET, DRAIN PLUG
-
213201-352 PLUG, DRAINPLUG, DRAIN
-
223201-165 FITTING, BREATHERFITTING, BREATHER
-
233201-155 SCREW, CAPSCREW, CAP
-
243201-147 SCREW, CAPSCREW, CAP
-
253201-149 SCREW, CAPSCREW, CAP
-
263201-374 BOLTBOLT
-
273201-153 SCREW, CAPSCREW, CAP
