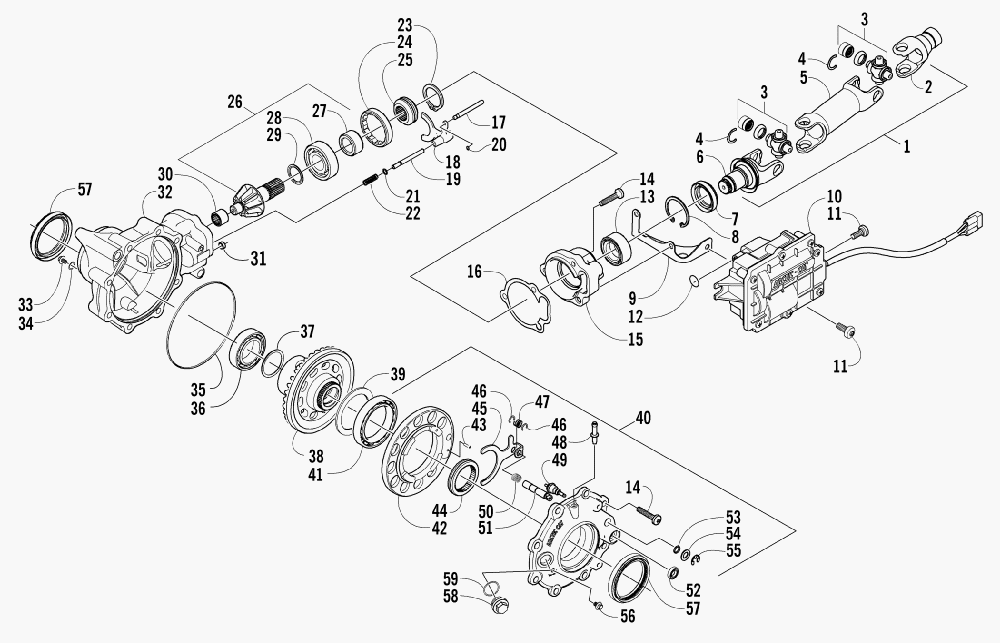

FRONT DRIVE GEARCASE ASSEMBLY для Arctic Cat 650 4X4 AUTO SE (CAT GREEN) [A2004ISR4BUSA] - 2004 года выпуска
-
№АртикулНазвание
-
0502-615 GEARCASE ASSEMBLYGEARCASE ASSEMBLY
-
10502-381 DRIVESHAFT ASSEMBLY (INC. 2-6)DRIVESHAFT ASSEMBLY (INC. 2-6)
-
20502-521 ...YOKE, FRONT...YOKE, FRONT
-
31402-164 ...JOINT, UNIVERSAL (INC. 4)...JOINT, UNIVERSAL (INC. 4)
-
40423-450 ......RING, RETAINING......RING, RETAINING
-
50502-524 ...DRIVESHAFT...DRIVESHAFT
-
60502-517 ...YOKE, FRONT SLIP...YOKE, FRONT SLIP
-
71402-011 SEALSEAL
-
80423-423 RING, RETAININGRING, RETAINING
-
90502-347 BRACKET, ACTUATORBRACKET, ACTUATOR
-
100502-579 ACTUATORACTUATOR
-
110423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
120423-498 O-RINGO-RING
-
131402-043 BEARINGBEARING
-
140423-118 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
150502-528 HOUSING, PINIONHOUSING, PINION
-
160402-947 GASKET, FLANGEGASKET, FLANGE
-
170402-997 SHAFT, SELECTORSHAFT, SELECTOR
-
180402-998 FORK, SELECTORFORK, SELECTOR
-
190402-417 SHAFT, SHUTTLESHAFT, SHUTTLE
-
200423-402 RING, RETAININGRING, RETAINING
-
210423-147 O-RINGO-RING
-
220402-999 SPRING, RETURNSPRING, RETURN
-
230423-417 RING, RETAININGRING, RETAINING
-
240402-357 COLLAR, LOCKCOLLAR, LOCK
-
250402-413 COUPLER, DRIVECOUPLER, DRIVE
-
260502-123 GEAR, PINION - ASSEMBLY - 10T (INC. 27-29)GEAR, PINION - ASSEMBLY - 10T (INC. 27-29)
-
270402-336 ...COLLAR, RETAINING...COLLAR, RETAINING
-
280402-327 ...BEARING...BEARING
-
290402-424 ...SHIM,25.7X34.9X1.3...SHIM,25.7X34.9X1.3
-
290402-425 ...SHIM,25.7X34.9X1.4...SHIM,25.7X34.9X1.4
-
290402-426 ...SHIM,25.7X34.9X1.5...SHIM,25.7X34.9X1.5
-
290402-427 ...SHIM,25.7X34.9X1.6...SHIM,25.7X34.9X1.6
-
290402-428 ...SHIM,25.7X34.9X1.7...SHIM,25.7X34.9X1.7
-
300402-328 BEARINGBEARING
-
310402-411 PIN, DOWELPIN, DOWEL
-
320502-514 HOUSING, GEARCASEHOUSING, GEARCASE
-
331402-210 PLUG, MAGNETIC (INC. 34)PLUG, MAGNETIC (INC. 34)
-
340423-153 ...O-RING...O-RING
-
350423-149 O-RINGO-RING
-
360402-393 BEARINGBEARING
-
370402-405 SHIM,41X49X1.3SHIM,41X49X1.3
-
370402-406 SHIM,41X49X1.4SHIM,41X49X1.4
-
370402-407 SHIM,41X49X1.5SHIM,41X49X1.5
-
370402-408 SHIM,41X49X1.6SHIM,41X49X1.6
-
370402-409 SHIM,41X49X1.7SHIM,41X49X1.7
-
380502-411 GEAR, RING - 36TGEAR, RING - 36T
-
391402-074 SHIM, 1.3SHIM, 1.3
-
391402-075 SHIM, 1.4SHIM, 1.4
-
391402-076 SHIM, 1.5SHIM, 1.5
-
391402-077 SHIM, 1.6SHIM, 1.6
-
391402-078 SHIM, 1.7SHIM, 1.7
-
400502-434 COVER, GEARCASE (INC. 41-56 AND ONE NO. 57)COVER, GEARCASE (INC. 41-56 AND ONE NO. 57)
-
411402-053 ...BEARING...BEARING
-
420502-413 ...FLANGE, BEARING...FLANGE, BEARING
-
431402-079 ...PIN, PARALLEL...PIN, PARALLEL
-
441402-042 ...COLLAR, SLIDING...COLLAR, SLIDING
-
451402-054 ...FORK...FORK
-
461402-058 ...RING, RETAINING...RING, RETAINING
-
471402-057 ...SPRING...SPRING
-
481402-104 ...FITTING...FITTING
-
490402-419 ...SWITCH, INDICATOR...SWITCH, INDICATOR
-
501402-063 ...SPRING...SPRING
-
511402-055 ...SHAFT, LOCK...SHAFT, LOCK
-
521402-056 ...SEAL...SEAL
-
530423-133 ...O-RING...O-RING
-
540423-132 ...WASHER...WASHER
-
550423-424 ...RING, RETAINING...RING, RETAINING
-
561402-211 ...PLUG, OIL LEVEL...PLUG, OIL LEVEL
-
570402-394 ...SEAL...SEAL
-
580402-333 PLUG, FILL (INC. 59)PLUG, FILL (INC. 59)
-
590423-154 ...O-RING...O-RING
