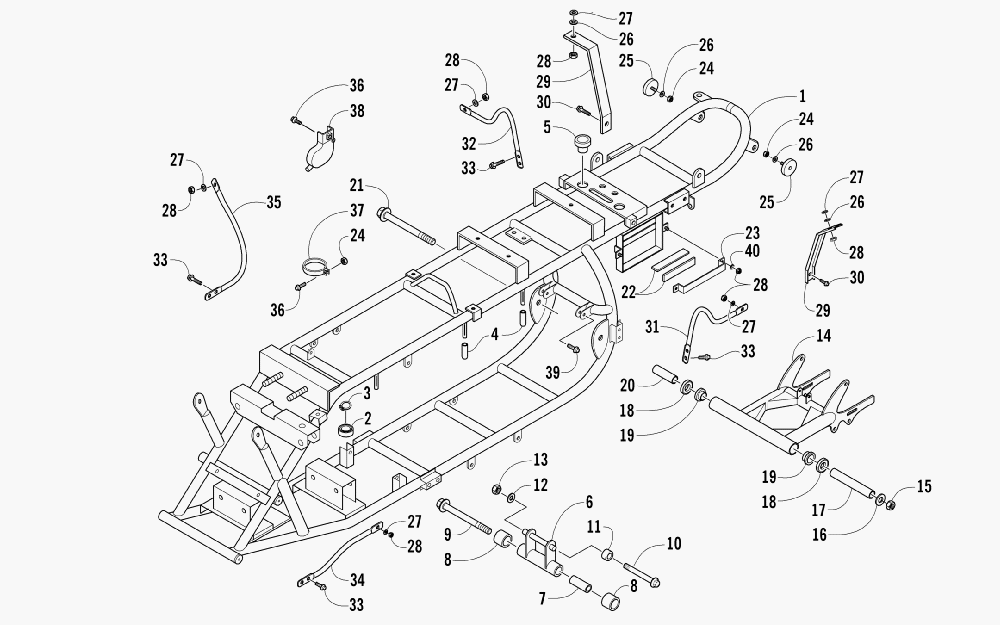

FRAME ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (CAT GREEN) [A2004H4B2BUSZ] - 2004 года выпуска
-
№АртикулНазвание
-
13301-847 FRAMEFRAME
-
23301-409 BEARINGBEARING
-
33301-381 CIRCLIPCIRCLIP
-
43301-449 CLAMP, CABLE - RUBBERCLAMP, CABLE - RUBBER
-
53301-260 BUMPER, RUBBERBUMPER, RUBBER
-
63301-848 MOUNTING - ENGINEMOUNTING - ENGINE
-
73301-854 COLLAR, ENGINECOLLAR, ENGINE
-
83301-763 BUSHING, RUBBERBUSHING, RUBBER
-
93301-850 SCREW, CAPSCREW, CAP
-
103301-855 SCREW, CAPSCREW, CAP
-
113301-852 DAMPER, RUBBERDAMPER, RUBBER
-
123301-474 WASHERWASHER
-
133301-283 NUT, NYLONNUT, NYLON
-
143301-581 SWING ARM SUB-ASSEMBLYSWING ARM SUB-ASSEMBLY
-
153301-284 NUT, NYLONNUT, NYLON
-
163301-349 WASHERWASHER
-
173301-227 SPACER, SWING ARMSPACER, SWING ARM
-
183301-228 COVER, SWING ARM SEALCOVER, SWING ARM SEAL
-
193301-226 BUSHINGBUSHING
-
203301-582 SLEEVE, RUBBERSLEEVE, RUBBER
-
213301-407 SCREW, CAPSCREW, CAP
-
223301-077 PAD, BATTERYPAD, BATTERY
-
233301-853 BRACKET, BATTERYBRACKET, BATTERY
-
243301-327 NUT, LOCKNUT, LOCK
-
253301-597 REFLECTOR - REDREFLECTOR - RED
-
263301-356 WASHER, RUBBERWASHER, RUBBER
-
273301-340 WASHERWASHER
-
283301-281 NUT, NYLONNUT, NYLON
-
293301-266 BRACKET, REAR COVER MOUNTING - UPPERBRACKET, REAR COVER MOUNTING - UPPER
-
303301-386 SCREW, CAPSCREW, CAP
-
313301-267 BRACKET, REAR COVER MOUNTING - LOWER LEFTBRACKET, REAR COVER MOUNTING - LOWER LEFT
-
323301-265 BRACKET, REAR COVER MOUNTING - LOWER RIGHTBRACKET, REAR COVER MOUNTING - LOWER RIGHT
-
333301-306 SCREW, CAPSCREW, CAP
-
343301-461 BRACKET, FRONT COVER MOUNTING - LEFTBRACKET, FRONT COVER MOUNTING - LEFT
-
353301-462 BRACKET, FRONT COVER MOUNTING - RIGHTBRACKET, FRONT COVER MOUNTING - RIGHT
-
363301-881 SCREW, CAPSCREW, CAP
-
373301-376 CLAMPCLAMP
-
383301-460 BRACKET, GAS VALVEBRACKET, GAS VALVE
-
393301-401 SCREW, CAPSCREW, CAP
-
403301-338 WASHERWASHER
