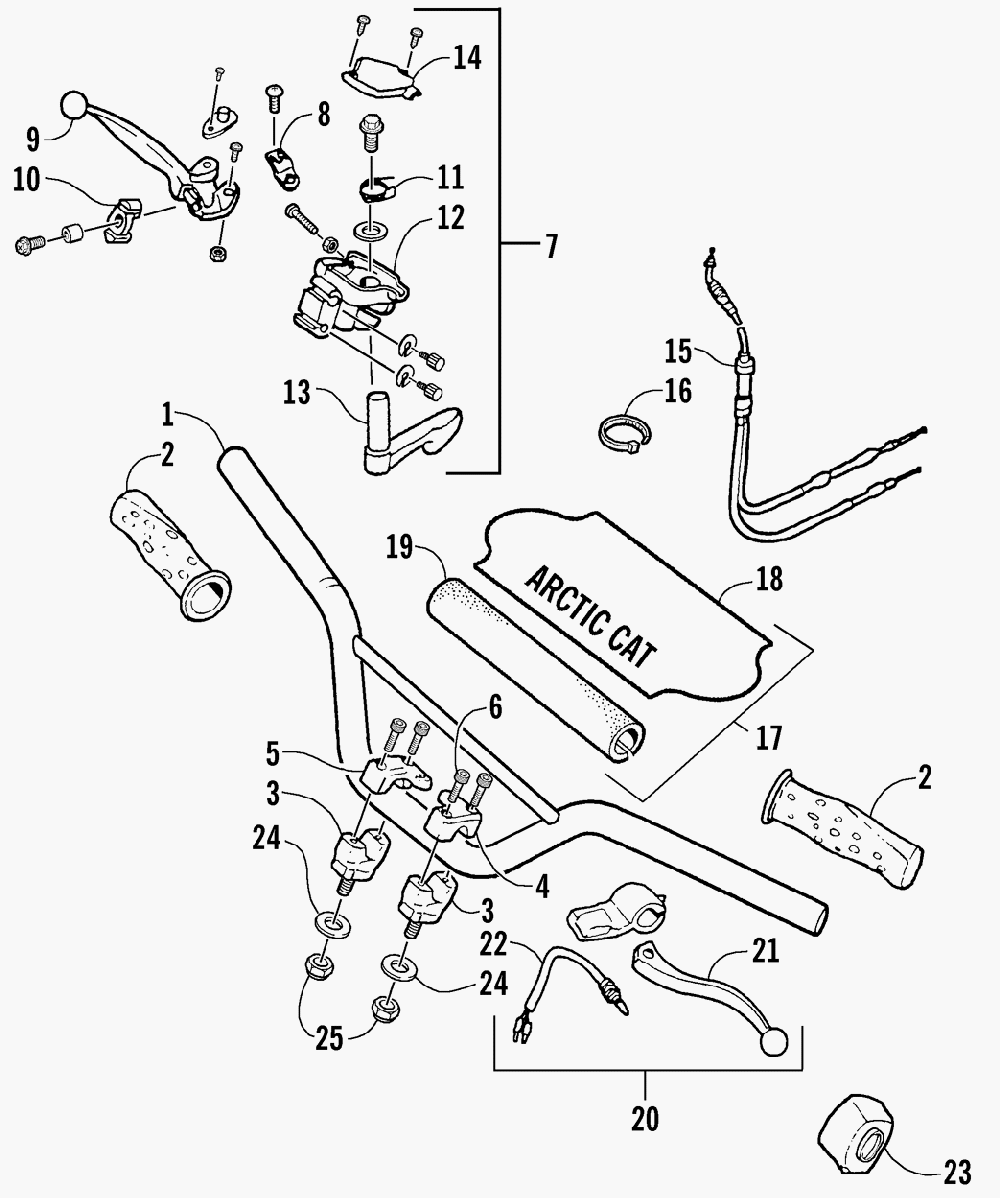

HANDLEBAR ASSEMBLY для Arctic Cat 90 4 STROKE 2X4 AUTO (GREEN) [A2004H4B2BUSG] - 2004 года выпуска
-
№АртикулНазвание
-
13301-230 HANDLEBARHANDLEBAR
-
23301-234 GRIP, HANDLEBARGRIP, HANDLEBAR
-
33301-231 CLAMP, HANDLEBAR - BOTTOMCLAMP, HANDLEBAR - BOTTOM
-
43301-232 CLAMP, HANDLEBAR - LEFTCLAMP, HANDLEBAR - LEFT
-
53301-233 CLAMP, HANDLEBAR - RIGHTCLAMP, HANDLEBAR - RIGHT
-
63301-290 SCREW, CAPSCREW, CAP
-
73301-861 LEVER ASSEMBLY - RIGHT (INC. 8-13)LEVER ASSEMBLY - RIGHT (INC. 8-13)
-
83301-239 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
93301-240 LEVER, BRAKE - RIGHTLEVER, BRAKE - RIGHT
-
103301-238 BRACKET, CABLEBRACKET, CABLE
-
113301-244 SPRING, THROTTLE LEVERSPRING, THROTTLE LEVER
-
123301-237 BRACKET, LEVERBRACKET, LEVER
-
133301-243 LEVER, THROTTLELEVER, THROTTLE
-
143301-236 COVER, LEVER BODYCOVER, LEVER BODY
-
153301-862 CABLE, THROTTLECABLE, THROTTLE
-
163301-465 CABLE TIECABLE TIE
-
173301-457 PAD, HANDLEBAR - ASSEMBLY (INC. 18-19)PAD, HANDLEBAR - ASSEMBLY (INC. 18-19)
-
183301-458 COVER, PADCOVER, PAD
-
193301-459 PAD, HANDLEBARPAD, HANDLEBAR
-
203301-242 LEVER ASSEMBLY - LEFT (INC. 21-22)LEVER ASSEMBLY - LEFT (INC. 21-22)
-
213301-241 LEVER, BRAKE - LEFTLEVER, BRAKE - LEFT
-
223301-153 HARNESS, BRAKE SWITCHHARNESS, BRAKE SWITCH
-
233301-152 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
243301-474 WASHERWASHER
-
253301-283 NUT, NYLONNUT, NYLON
