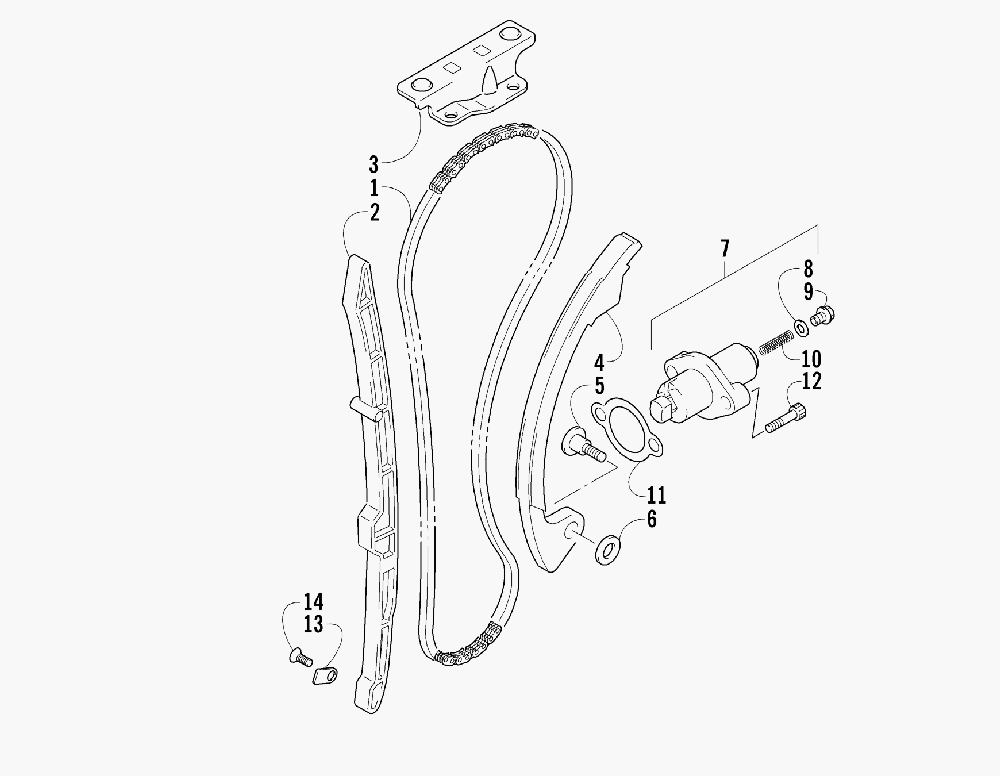

CAM CHAIN ASSEMBLY для Arctic Cat DVX 400 2X4 (RED) [A2004DVI2AUSR] - 2004 года выпуска
-
№АртикулНазвание
-
13502-018 CHAIN, CAMSHAFT DRIVECHAIN, CAMSHAFT DRIVE
-
23402-848 GUIDE, CAM CHAIN - NO. 1GUIDE, CAM CHAIN - NO. 1
-
33402-930 GUIDE, CAM CHAIN - NO. 2GUIDE, CAM CHAIN - NO. 2
-
43402-849 TENSIONER, CAM CHAINTENSIONER, CAM CHAIN
-
53423-561 BOLTBOLT
-
63423-142 WASHERWASHER
-
73502-019 ADJUSTER, TENSIONER - ASSEMBLY (INC. 8-10)ADJUSTER, TENSIONER - ASSEMBLY (INC. 8-10)
-
83402-850 ...GASKET...GASKET
-
93402-933 ...PLUG...PLUG
-
103402-932 ...SPRING...SPRING
-
113402-137 GASKET, ADJUSTERGASKET, ADJUSTER
-
123004-475 BOLTBOLT
-
133402-929 RETAINER, CAM CHAIN GUIDE NO.1RETAINER, CAM CHAIN GUIDE NO.1
-
143423-018 SCREWSCREW
