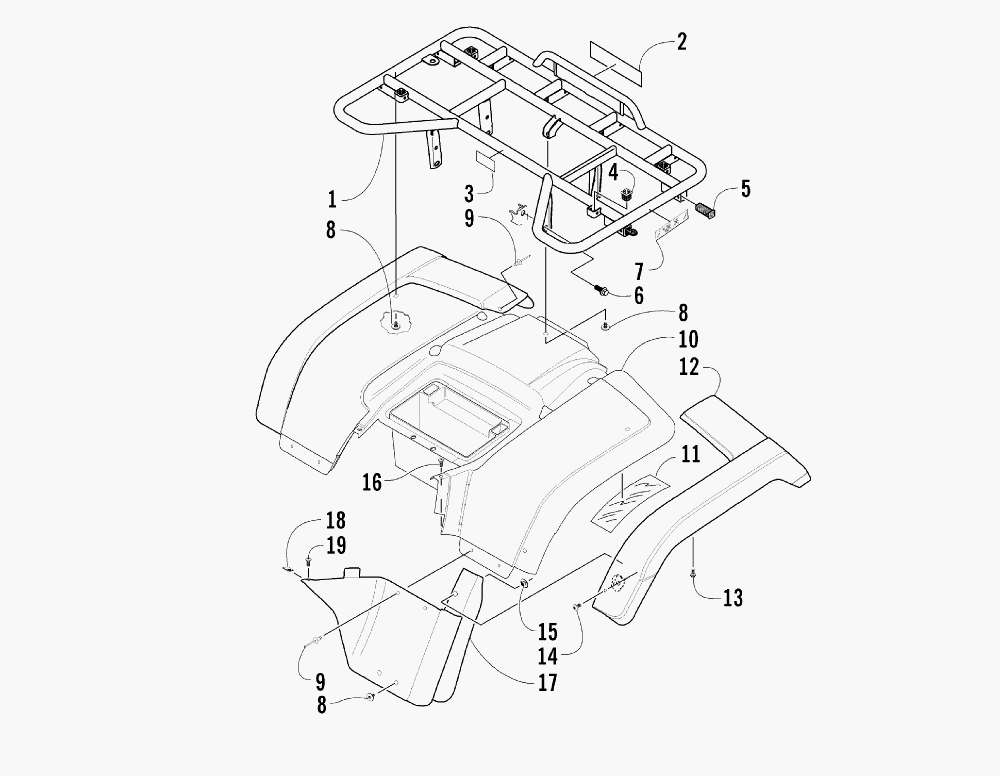

REAR BODY PANEL ASSEMBLY для Arctic Cat 300 4X4 (RED) [A2005ATF4AUSR] - 2005 года выпуска
-
№АртикулНазвание
-
10541-268 RACK - REAR - ASSEMBLY (INC. 2-5)RACK - REAR - ASSEMBLY (INC. 2-5)
-
20411-814 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
30411-648 ...DECAL, WARNING - REAR RACK LOAD...DECAL, WARNING - REAR RACK LOAD
-
40441-592 ...BUSHING, RACK...BUSHING, RACK
-
50441-556 ...BUSHING, RACK...BUSHING, RACK
-
68409-020 SCREW, CAPSCREW, CAP
-
70411-647 DECAL, REFLECTOR - REDDECAL, REFLECTOR - RED
-
80423-101 SCREW, MACHINESCREW, MACHINE
-
90423-046 RIVET, PLASTICRIVET, PLASTIC
-
100506-583 PANEL, FENDER - REAR (RED)PANEL, FENDER - REAR (RED)
-
100506-588 PANEL, FENDER - REAR (GREEN)PANEL, FENDER - REAR (GREEN)
-
110619-230 TAPE, FOILTAPE, FOIL
-
120506-552 FLARE - REAR - RIGHTFLARE - REAR - RIGHT
-
120506-553 FLARE - REAR - LEFTFLARE - REAR - LEFT
-
130423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
140423-355 SCREW, SHOULDERSCREW, SHOULDER
-
150423-438 T-NUTT-NUT
-
160423-068 SCREW, MACHINESCREW, MACHINE
-
170406-084 FENDER EXTENSION - REAR - RIGHTFENDER EXTENSION - REAR - RIGHT
-
170406-085 FENDER EXTENSION - REAR - LEFTFENDER EXTENSION - REAR - LEFT
-
180423-060 CLIP, TINERMANCLIP, TINERMAN
-
190623-309 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
