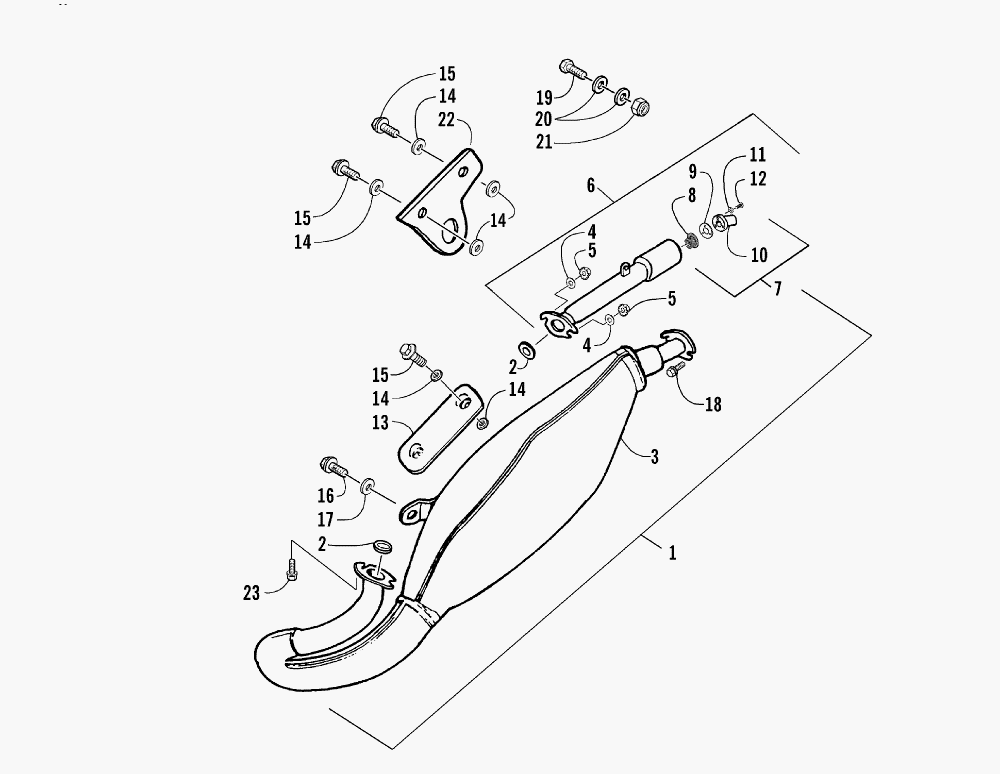

EXHAUST ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - UTILITY (RED) [A2005H2A2BUSR] - 2005 года выпуска
-
№АртикулНазвание
-
13301-589 PIPE, EXHAUST - ASSEMBLY (INC. 2-13, FOUR NO. 14, AND TWO NO. 15)PIPE, EXHAUST - ASSEMBLY (INC. 2-13, FOUR NO. 14, AND TWO NO. 15)
-
23301-086 ...GASKET, EXHAUST PIPE...GASKET, EXHAUST PIPE
-
33301-590 ...PIPE, EXHAUST - FRONT...PIPE, EXHAUST - FRONT
-
43301-360 ...WASHER, SPRING...WASHER, SPRING
-
53301-327 ...NUT, FLANGE...NUT, FLANGE
-
63301-092 ...MUFFLER (INC. 7-12)...MUFFLER (INC. 7-12)
-
73301-450 ......ARRESTER, SPARK (INC. 8-10)......ARRESTER, SPARK (INC. 8-10)
-
83301-556 .........SCREEN, SPARK ARRESTER.........SCREEN, SPARK ARRESTER
-
93301-516 .........GASKET.........GASKET
-
103301-557 .........END CAP, MUFFLER.........END CAP, MUFFLER
-
113301-514 ......WASHER, LOCK......WASHER, LOCK
-
123301-515 ......SCREW, MACHINE......SCREW, MACHINE
-
133301-091 ...SHROUD, MUFFLER...SHROUD, MUFFLER
-
143301-087 ...PACKING...PACKING
-
153301-600 ...SCREW, CAP...SCREW, CAP
-
163301-397 SCREW, CAPSCREW, CAP
-
173301-361 WASHER, SPRINGWASHER, SPRING
-
183301-391 SCREW, CAPSCREW, CAP
-
193301-402 SCREW, CAPSCREW, CAP
-
203301-357 WASHERWASHER
-
213301-283 NUT, NYLONNUT, NYLON
-
223301-089 INSULATORINSULATOR
-
233301-310 SCREW, CAPSCREW, CAP
