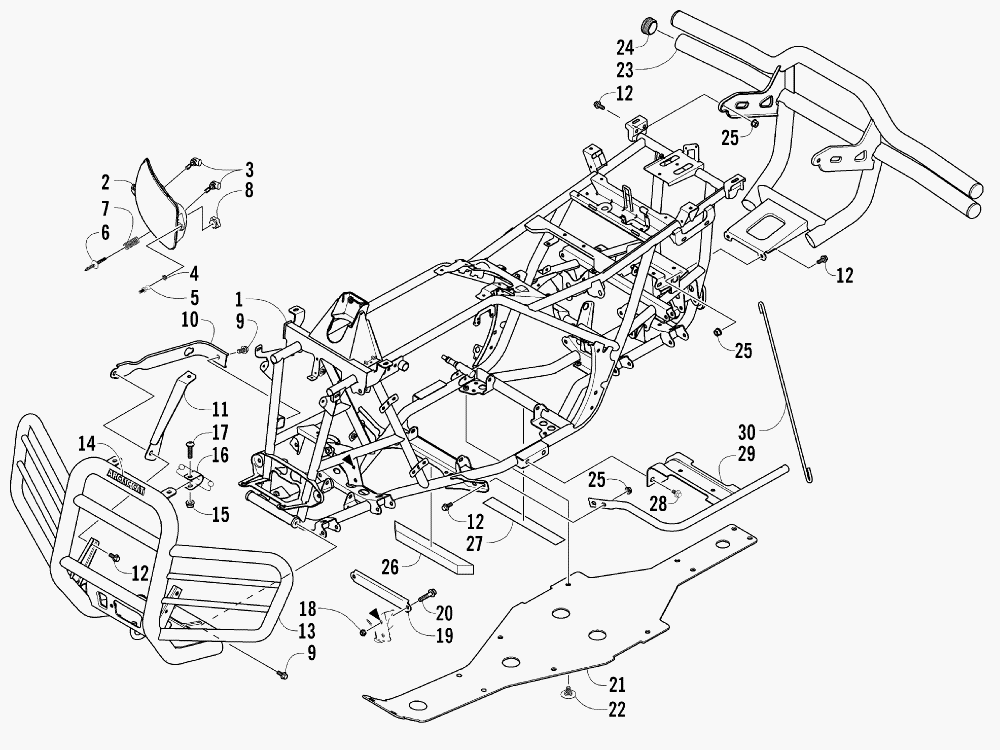

FRAME AND RELATED PARTS для Arctic Cat 500 FIS LE AUTO (ARCTIC CAT GREEN) [A2005IBM4BUSA] - 2005 года выпуска
-
№АртикулНазвание
-
11506-512 FRAME, MAINFRAME, MAIN
-
20509-016 HEADLIGHT ASSEMBLY - RIGHT (INC. 3-4)HEADLIGHT ASSEMBLY - RIGHT (INC. 3-4)
-
20509-018 HEADLIGHT ASSEMBLY - LEFT (INC. 3-4)HEADLIGHT ASSEMBLY - LEFT (INC. 3-4)
-
30409-055 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
40423-452 ...SOCKET, MOUNTING...SOCKET, MOUNTING
-
50423-515 STUD, MOUNTING - HEADLIGHTSTUD, MOUNTING - HEADLIGHT
-
60423-514 STUD, ADJUSTER - HEADLIGHTSTUD, ADJUSTER - HEADLIGHT
-
70423-522 SPRING, ADJUSTERSPRING, ADJUSTER
-
80423-513 KNOB, ADJUSTERKNOB, ADJUSTER
-
98409-020 SCREW, CAPSCREW, CAP
-
100506-653 CHANNEL, BUMPER MOUNTING - RIGHTCHANNEL, BUMPER MOUNTING - RIGHT
-
101506-596 CHANNEL, BUMPER MOUNTING - LEFTCHANNEL, BUMPER MOUNTING - LEFT
-
111506-562 BRACKET, MOUNTING - BUMPER - RIGHTBRACKET, MOUNTING - BUMPER - RIGHT
-
111506-563 BRACKET, MOUNTING - BUMPER - LEFTBRACKET, MOUNTING - BUMPER - LEFT
-
128408-816 SCREW, CAPSCREW, CAP
-
131506-666 BUMPER (INC. 14)BUMPER (INC. 14)
-
140411-814 ...DECAL, "ARCTIC CAT"...DECAL, "ARCTIC CAT"
-
158424-805 NUT, LOCKNUT, LOCK
-
161506-667 STRAP, BUMPER SUPPORTSTRAP, BUMPER SUPPORT
-
178468-845 SCREW, MACHINESCREW, MACHINE
-
188428-002 NUT, LOCKNUT, LOCK
-
191506-429 BRACE, A-ARMBRACE, A-ARM
-
208409-025 SCREW, CAPSCREW, CAP
-
211406-425 PANEL, BELLYPANEL, BELLY
-
220423-101 SCREW, BODYSCREW, BODY
-
231506-615 BUMPER, REAR (INC. 24)BUMPER, REAR (INC. 24)
-
240406-130 ...CAP, BUMPER...CAP, BUMPER
-
258424-802 NUT, FLANGENUT, FLANGE
-
261506-067 FOAM, FRAMEFOAM, FRAME
-
270406-289 PAD, FRAMEPAD, FRAME
-
288409-016 SCREW, CAPSCREW, CAP
-
291506-380 FOOTREST - RIGHTFOOTREST - RIGHT
-
291506-379 FOOTREST - LEFTFOOTREST - LEFT
-
301406-298 ROD, SUPPORTROD, SUPPORT
