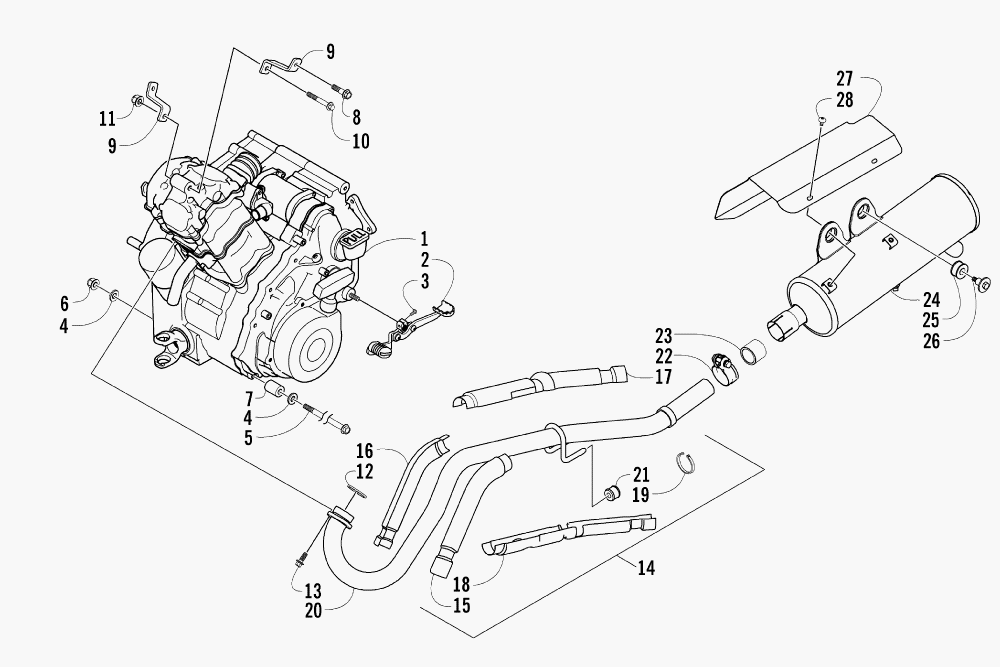

ENGINE AND EXHAUST для Arctic Cat 500 FIS MAN (RED) [A2005IBM4AUSR] - 2005 года выпуска
-
№АртикулНазвание
-
10462-031 ENGINEENGINE
-
20502-694 LEVER, SHIFTLEVER, SHIFT
-
38476-620 SCREW, MACHINESCREW, MACHINE
-
40423-426 WASHER, ENGINEWASHER, ENGINE
-
50423-405 SCREW, CAPSCREW, CAP
-
68428-002 NUT, LOCKNUT, LOCK
-
70423-042 SPACER, ENGINESPACER, ENGINE
-
88408-816 SCREW, CAPSCREW, CAP
-
91506-625 BRACKET, ENGINE - RIGHTBRACKET, ENGINE - RIGHT
-
91506-626 BRACKET, ENGINE - LEFTBRACKET, ENGINE - LEFT
-
108408-860 SCREW, CAPSCREW, CAP
-
118424-802 NUTNUT
-
120412-007 SEAL, EXHAUSTSEAL, EXHAUST
-
138408-820 SCREW, CAPSCREW, CAP
-
140512-213 PIPE, EXHAUST - ASSEMBLY (INC. 15-20)PIPE, EXHAUST - ASSEMBLY (INC. 15-20)
-
150412-266 ...SHIELD, EXHAUST PIPE - OUTER - FRONT...SHIELD, EXHAUST PIPE - OUTER - FRONT
-
160412-265 ...SHIELD, EXHAUST PIPE - INNER - FRONT...SHIELD, EXHAUST PIPE - INNER - FRONT
-
170412-264 ...SHIELD, EXHAUST PIPE - OUTER - REAR...SHIELD, EXHAUST PIPE - OUTER - REAR
-
180412-263 ...SHIELD, EXHAUST PIPE - INNER - REAR...SHIELD, EXHAUST PIPE - INNER - REAR
-
190423-524 ...TIE, BAND...TIE, BAND
-
200512-182 ...PIPE, EXHAUST...PIPE, EXHAUST
-
210412-215 BUSHING, EXHAUST PIPEBUSHING, EXHAUST PIPE
-
220512-209 CLAMP, MUFFLERCLAMP, MUFFLER
-
230412-183 SEAL, MUFFLERSEAL, MUFFLER
-
240512-180 MUFFLERMUFFLER
-
250412-253 BUSHING, MUFFLERBUSHING, MUFFLER
-
260423-476 SCREW, SHOULDERSCREW, SHOULDER
-
270412-242 COVER, MUFFLERCOVER, MUFFLER
-
288477-610 SCREW, MACHINESCREW, MACHINE
