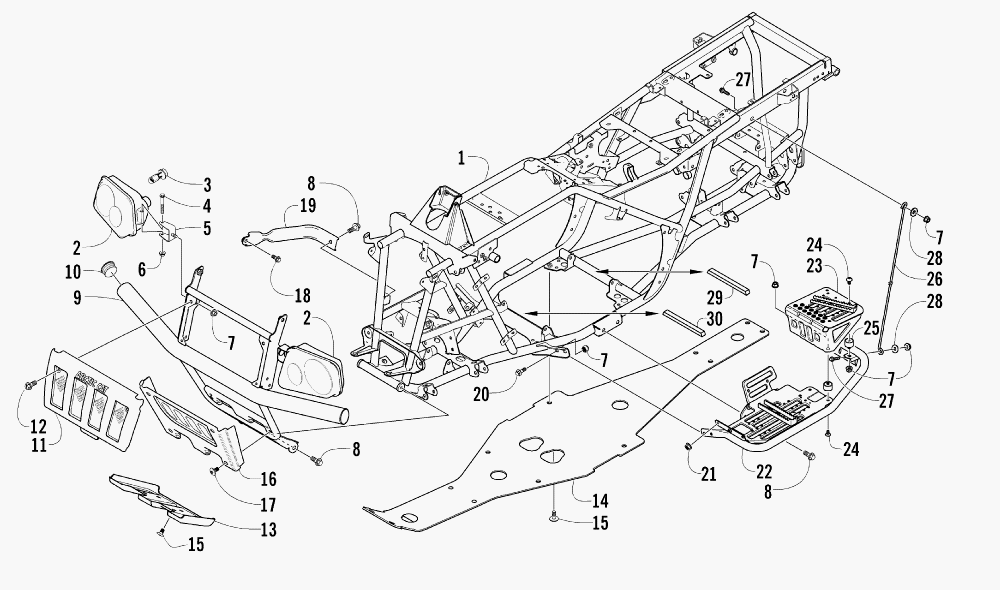

FRAME AND RELATED PARTS для Arctic Cat 500 TRV AUTO (ARCTIC CAT GREEN) [A2005TDM4BUSZ] - 2005 года выпуска
-
№АртикулНазвание
-
11506-460 FRAME, MAINFRAME, MAIN
-
20409-032 HEADLIGHT ASSEMBLY - RIGHT (INC. 3-6)HEADLIGHT ASSEMBLY - RIGHT (INC. 3-6)
-
20409-031 HEADLIGHT ASSEMBLY - LEFT (INC. 3-6)HEADLIGHT ASSEMBLY - LEFT (INC. 3-6)
-
30409-045 ...BULB, HEADLIGHT...BULB, HEADLIGHT
-
48410-860 ...SCREW, CAP...SCREW, CAP
-
50406-945 ...BRACKET, HEADLIGHT MOUNTING...BRACKET, HEADLIGHT MOUNTING
-
60423-375 ...NUT, FLANGE...NUT, FLANGE
-
78424-802 NUT, FLANGENUT, FLANGE
-
88409-020 SCREW, CAPSCREW, CAP
-
90506-544 BUMPERBUMPER
-
100406-130 CAP, BUMPERCAP, BUMPER
-
110406-832 GRILLE, UPPERGRILLE, UPPER
-
120423-361 SCREW, MACHINESCREW, MACHINE
-
131441-006 PLATE, SKID (RED)PLATE, SKID (RED)
-
131441-008 PLATE, SKID (GREEN)PLATE, SKID (GREEN)
-
131441-007 PLATE, SKID (CAT GREEN)PLATE, SKID (CAT GREEN)
-
141406-176 PANEL, BELLYPANEL, BELLY
-
150423-101 SCREW, BODYSCREW, BODY
-
161406-420 GRILLE, BUMPER - LOWERGRILLE, BUMPER - LOWER
-
178468-830 SCREW, MACHINESCREW, MACHINE
-
188408-812 SCREW, CAPSCREW, CAP
-
190506-653 CHANNEL, BUMPER MOUNTINGCHANNEL, BUMPER MOUNTING
-
208408-816 SCREW, CAPSCREW, CAP
-
218424-602 NUT, FLANGENUT, FLANGE
-
221506-506 FOOTREST - RIGHTFOOTREST - RIGHT
-
221506-507 FOOTREST - LEFTFOOTREST - LEFT
-
231506-508 FOOTREST, PASSENGER - RIGHTFOOTREST, PASSENGER - RIGHT
-
231506-509 FOOTREST, PASSENGER - LEFTFOOTREST, PASSENGER - LEFT
-
240423-412 SCREW, MACHINESCREW, MACHINE
-
251406-643 MOUNT, RUBBERMOUNT, RUBBER
-
261406-641 ROD, SUPPORT - RIGHTROD, SUPPORT - RIGHT
-
261406-642 ROD, SUPPORT - LEFTROD, SUPPORT - LEFT
-
278408-825 SCREW, CAPSCREW, CAP
-
288050-282 WASHERWASHER
-
290406-289 PAD, FRAME - REARPAD, FRAME - REAR
-
301506-067 FOAM, FRAMEFOAM, FRAME
