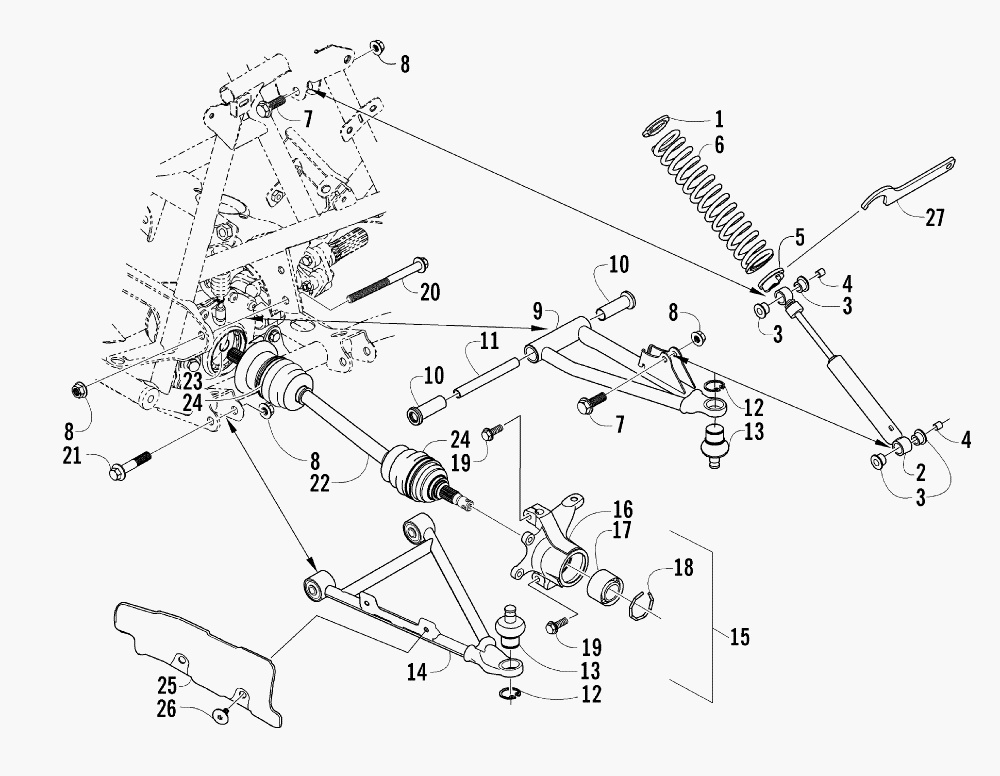

FRONT SUSPENSION ASSEMBLY для Arctic Cat 400 4 X 4 VP AUTO (GREEN) [A2006ABH4BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
11603-889 RETAINER, SPRINGRETAINER, SPRING
-
20403-144 SHOCK ABSORBER - FRONT (INC. 3-4)SHOCK ABSORBER - FRONT (INC. 3-4)
-
30604-310 ...BUSHING, SHOCK ABSORBER...BUSHING, SHOCK ABSORBER
-
40403-028 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
50403-102 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
60403-103 SPRING, SHOCK ABSORBERSPRING, SHOCK ABSORBER
-
78409-040 SCREW, CAPSCREW, CAP
-
88428-002 NUT, LOCKNUT, LOCK
-
90503-192 A-ARM, UPPER RIGHT - BLACK (INC. 10-11 AND TWO NO. 12-13)A-ARM, UPPER RIGHT - BLACK (INC. 10-11 AND TWO NO. 12-13)
-
90503-193 A-ARM, UPPER LEFT - BLACK (INC. 10-11 AND TWO NO. 12-13)A-ARM, UPPER LEFT - BLACK (INC. 10-11 AND TWO NO. 12-13)
-
100403-081 ...BUSHING...BUSHING
-
110403-080 ...COLLAR...COLLAR
-
120423-009 ...CLIP, BALL JOINT...CLIP, BALL JOINT
-
130405-115 ...BALL JOINT - FRONT...BALL JOINT - FRONT
-
140503-292 A-ARM, LOWER RIGHT (INC. TWO NO. 12-13)A-ARM, LOWER RIGHT (INC. TWO NO. 12-13)
-
140503-291 A-ARM, LOWER LEFT (INC. TWO NO. 12-13)A-ARM, LOWER LEFT (INC. TWO NO. 12-13)
-
150505-460 KNUCKLE - ASSEMBLY - RIGHT (INC. 16-18)KNUCKLE - ASSEMBLY - RIGHT (INC. 16-18)
-
150505-461 KNUCKLE - ASSEMBLY - LEFT (INC. 16-18)KNUCKLE - ASSEMBLY - LEFT (INC. 16-18)
-
171402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
180423-423 ...RING, RETAINING...RING, RETAINING
-
198409-030 SCREW, CAPSCREW, CAP
-
200423-334 SCREW, CAPSCREW, CAP
-
218409-075 SCREW, CAPSCREW, CAP
-
220502-814 AXLE, DRIVE - FRONT (INC. 23-24)AXLE, DRIVE - FRONT (INC. 23-24)
-
231441-109 ...CLIP, RETAINING...CLIP, RETAINING
-
240436-276 ...REPAIR KIT, BOOT - FRONT AXLE...REPAIR KIT, BOOT - FRONT AXLE
-
250406-944 GUARD, BOOT - AXLE - RIGHTGUARD, BOOT - AXLE - RIGHT
-
250406-927 GUARD, BOOT - AXLE - LEFTGUARD, BOOT - AXLE - LEFT
-
260423-101 SCREW, BODYSCREW, BODY
-
270441-587 WRENCH, SPANNERWRENCH, SPANNER
