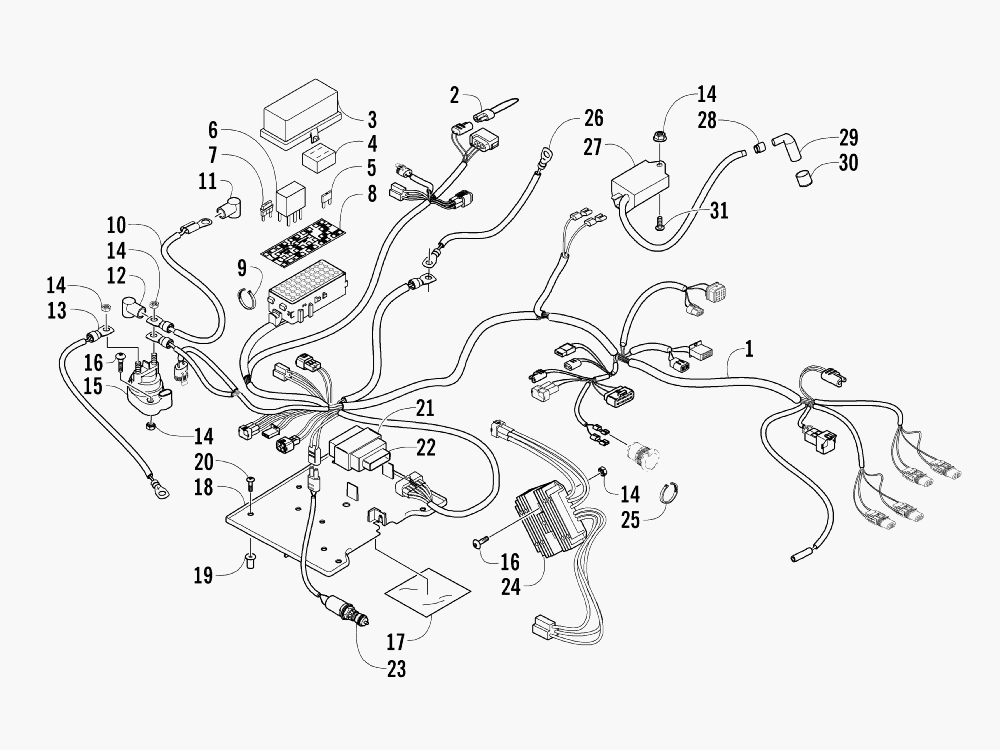

WIRING HARNESS ASSEMBLY для Arctic Cat 400 FIS AUTO (RED) [A2006ICH4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10486-178 HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)HARNESS, MAIN (INC. 2-8 AND TWO NO. 9)
-
20486-164 ...TETHER, ACCESSORY CONNECTOR...TETHER, ACCESSORY CONNECTOR
-
30530-008 ...COVER, FUSE BLOCK...COVER, FUSE BLOCK
-
40430-037 ...HOLDER, FUSE...HOLDER, FUSE
-
50430-034 ...DIODE...DIODE
-
60430-033 ...RELAY...RELAY
-
70430-032 ...FUSE - 10 AMP...FUSE - 10 AMP
-
70430-031 ...FUSE - 15 AMP...FUSE - 15 AMP
-
70430-030 ...FUSE - 30 AMP...FUSE - 30 AMP
-
80411-828 ...DECAL, FUSE BLOCK...DECAL, FUSE BLOCK
-
90123-788 ...CABLE TIE - 7.5 IN....CABLE TIE - 7.5 IN.
-
100445-053 CABLE, SOLENOID/STARTER (INC. 11)CABLE, SOLENOID/STARTER (INC. 11)
-
110645-019 ...BOOT, TERMINAL...BOOT, TERMINAL
-
120645-327 BOOT, TERMINALBOOT, TERMINAL
-
130445-055 CABLE, BATTERY/SOLENOIDCABLE, BATTERY/SOLENOID
-
140623-038 NUT W/WASHERNUT W/WASHER
-
150445-036 SOLENOIDSOLENOID
-
168476-625 SCREW, MACHINESCREW, MACHINE
-
170412-291 SHIELD, HEATSHIELD, HEAT
-
181406-787 TRAY, ELECTRICALTRAY, ELECTRICAL
-
190123-010 NUT, EXPANSIONNUT, EXPANSION
-
200623-121 SCREW, MACHINESCREW, MACHINE
-
213402-684 CUSHION, CDI UNITCUSHION, CDI UNIT
-
223402-683 CDI UNITCDI UNIT
-
230409-072 SWITCH, BRAKE - ASSEMBLYSWITCH, BRAKE - ASSEMBLY
-
243402-682 REGULATOR, VOLTAGEREGULATOR, VOLTAGE
-
250123-903 CABLE TIE - 11.5 IN.CABLE TIE - 11.5 IN.
-
260445-054 CABLE, BATTERY/GROUNDCABLE, BATTERY/GROUND
-
273430-055 COIL, IGNITION - ASSEMBLYCOIL, IGNITION - ASSEMBLY
-
283430-009 SEAL, HIGH TENSION WIRESEAL, HIGH TENSION WIRE
-
293430-007 CAP, SPARK PLUGCAP, SPARK PLUG
-
303430-008 SEAL, SPARK PLUGSEAL, SPARK PLUG
-
318476-620 SCREW, MACHINESCREW, MACHINE
