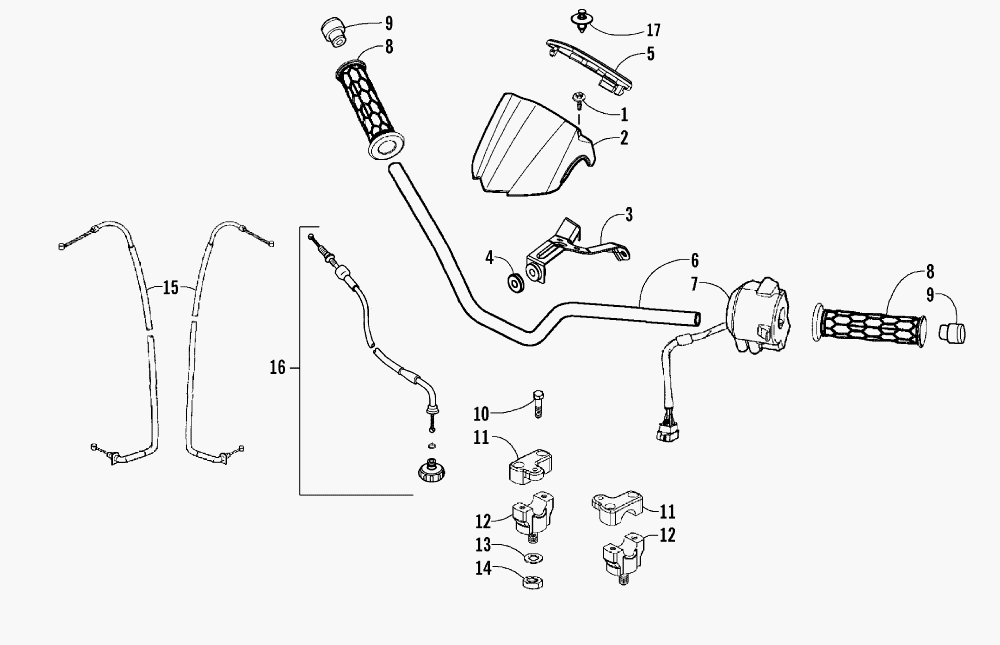

HANDLEBAR AND CONTROL ASSEMBLY для Arctic Cat 50 Y-6 YOUTH - DVX (RED) [A2006KSA2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-263 BOLT W/WASHERBOLT W/WASHER
-
23303-436 COVER, HANDLEBARCOVER, HANDLEBAR
-
33303-357 BOLT, FLANGE (6*12MM)BOLT, FLANGE (6*12MM)
-
43303-435 BRACKET, HANDLEBAR COVERBRACKET, HANDLEBAR COVER
-
53303-437 LID, HANDLEBAR COVERLID, HANDLEBAR COVER
-
63303-434 HANDLEBARHANDLEBAR
-
73303-424 SWITCH, HANDLEBAR - LEFT - ASSEMBLYSWITCH, HANDLEBAR - LEFT - ASSEMBLY
-
83303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
93303-196 END CAP, HANDLEBAREND CAP, HANDLEBAR
-
103303-398 BOLT (6*25MM)BOLT (6*25MM)
-
113303-197 HOLDER, HANDLEBAR - RIGHTHOLDER, HANDLEBAR - RIGHT
-
113303-198 HOLDER, HANDLEBAR - LEFTHOLDER, HANDLEBAR - LEFT
-
123303-199 HOLDER, HANDLEBAR - LOWERHOLDER, HANDLEBAR - LOWER
-
133303-336 WASHER, PLAIN (10MM)WASHER, PLAIN (10MM)
-
143303-325 NUT, HEX (10MM)NUT, HEX (10MM)
-
153303-173 CABLE, BRAKE - FRONTCABLE, BRAKE - FRONT
-
163303-513 CABLE, THROTTLECABLE, THROTTLE
