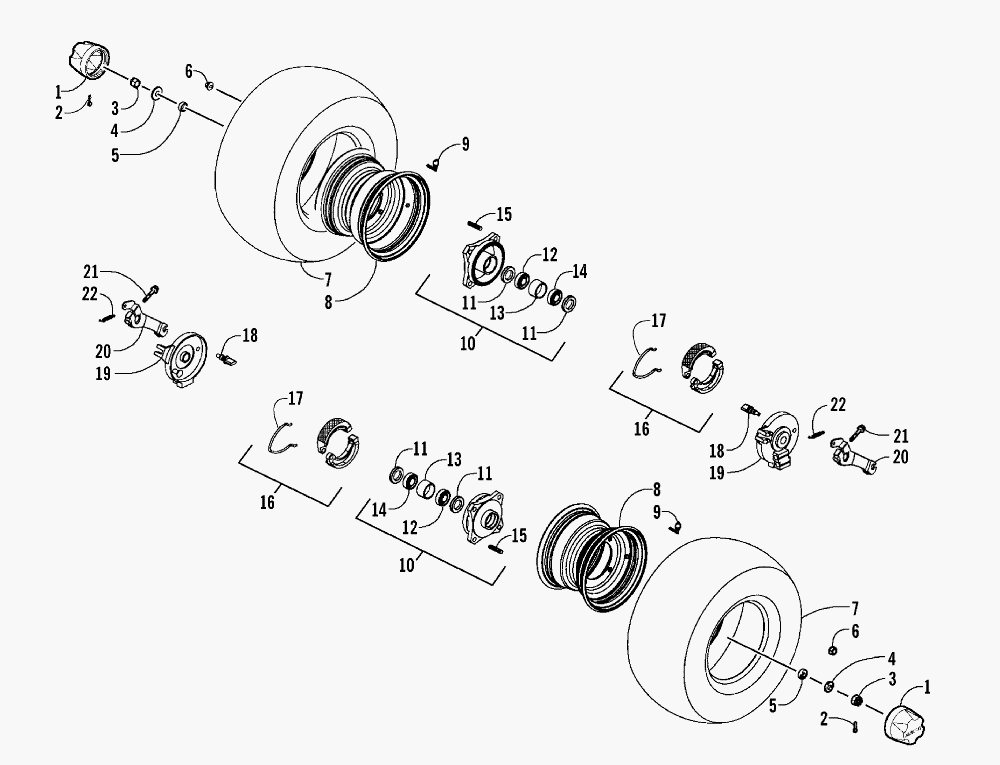

FRONT WHEEL AND BRAKE ASSEMBLIES для Arctic Cat 50 Y-6 YOUTH - UTILITY (GREEN) [A2006KUA2BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
13303-430 CAP, WHEEL SHAFTCAP, WHEEL SHAFT
-
23303-470 PIN, COTTERPIN, COTTER
-
33303-328 NUT, FLANGE CASTLENUT, FLANGE CASTLE
-
43304-560 WASHER - 12 MMWASHER - 12 MM
-
53304-561 COLLAR, WHEEL - FRONTCOLLAR, WHEEL - FRONT
-
63303-266 NUT, FLANGENUT, FLANGE
-
73303-569 TIRE - ASSEMBLYTIRE - ASSEMBLY
-
83304-524 RIM - ASSEMBLY (INC. 9)RIM - ASSEMBLY (INC. 9)
-
93304-562 ...STEM, VALVE...STEM, VALVE
-
103303-165 HUB, FRONT - ASSEMBLY (INC. 11-15)HUB, FRONT - ASSEMBLY (INC. 11-15)
-
113303-456 ...SEAL, DUST...SEAL, DUST
-
123303-468 ...BEARING, BALL - RADIAL...BEARING, BALL - RADIAL
-
133303-445 ...COLLAR, FRONT DISC...COLLAR, FRONT DISC
-
143303-467 ...BEARING, BALL - RADIAL...BEARING, BALL - RADIAL
-
153303-463 ...BOLT, STUD...BOLT, STUD
-
163303-169 SHOE, FRONT - ASSEMBLY (INC. 17)SHOE, FRONT - ASSEMBLY (INC. 17)
-
173304-563 ...SPRING, BRAKE SHOE...SPRING, BRAKE SHOE
-
183303-170 CAM, FRONT BRAKECAM, FRONT BRAKE
-
193303-168 PANEL - FRONT - RIGHTPANEL - FRONT - RIGHT
-
193303-176 PANEL - FRONT - LEFTPANEL - FRONT - LEFT
-
203303-171 ARM, BRAKE - RIGHTARM, BRAKE - RIGHT
-
203303-177 ARM, BRAKE - LEFTARM, BRAKE - LEFT
-
213303-355 BOLT, FLANGEBOLT, FLANGE
-
223303-172 SPRING, RETURNSPRING, RETURN
