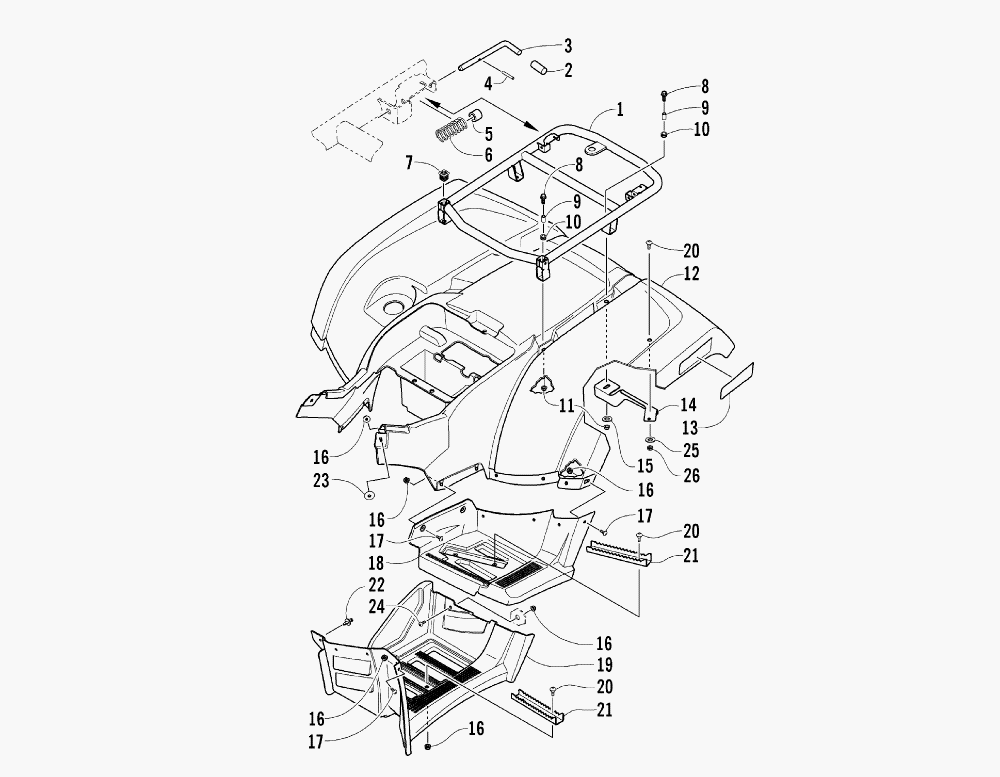

REAR BODY PANEL ASSEMBLY для Arctic Cat 500 4X4 AUTO TRV (GREEN) [A2006TBM4BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
11506-873 RACK, REAR - ASSEMBLY (INC. 2-7)RACK, REAR - ASSEMBLY (INC. 2-7)
-
21441-317 ...CAP, VINYL...CAP, VINYL
-
30541-448 ...PIN - ASSEMBLY (INC. 4)...PIN - ASSEMBLY (INC. 4)
-
40423-635 ......PIN, ROLL......PIN, ROLL
-
50423-036 ...COLLAR...COLLAR
-
60423-636 ...SPRING...SPRING
-
70441-592 ...BUSHING, RACK...BUSHING, RACK
-
88410-830 SCREW, MACHINESCREW, MACHINE
-
90423-463 SPACERSPACER
-
100423-465 GROMMETGROMMET
-
118432-802 NUT, LOCKNUT, LOCK
-
122406-038 PANEL, FENDER - RED (RED)PANEL, FENDER - RED (RED)
-
122406-039 PANEL, FENDER - GREEN (GREEN)PANEL, FENDER - GREEN (GREEN)
-
122406-040 PANEL, FENDER - CAT GREEN (CAT GREEN)PANEL, FENDER - CAT GREEN (CAT GREEN)
-
130411-820 DECAL, REFLECTOR - RIGHTDECAL, REFLECTOR - RIGHT
-
130411-821 DECAL, REFLECTOR - LEFTDECAL, REFLECTOR - LEFT
-
142506-092 BRACKET, REAR FENDER - RIGHTBRACKET, REAR FENDER - RIGHT
-
142506-093 BRACKET, REAR FENDER - LEFTBRACKET, REAR FENDER - LEFT
-
150423-087 WASHERWASHER
-
160423-540 NUT, LOCKNUT, LOCK
-
170423-419 SCREW, MACHINESCREW, MACHINE
-
182406-042 FOOTWELL, REAR - RIGHTFOOTWELL, REAR - RIGHT
-
182406-043 FOOTWELL, REAR - LEFTFOOTWELL, REAR - LEFT
-
191506-813 FOOTWELL - RIGHTFOOTWELL - RIGHT
-
191506-814 FOOTWELL - LEFTFOOTWELL - LEFT
-
200423-355 SCREW, SHOULDERSCREW, SHOULDER
-
211506-125 FOOTPEGFOOTPEG
-
220623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
230423-101 SCREW, BODYSCREW, BODY
-
248477-620 SCREW, MACHINESCREW, MACHINE
-
250623-184 WASHERWASHER
-
268424-602 NUT, HEXNUT, HEX
