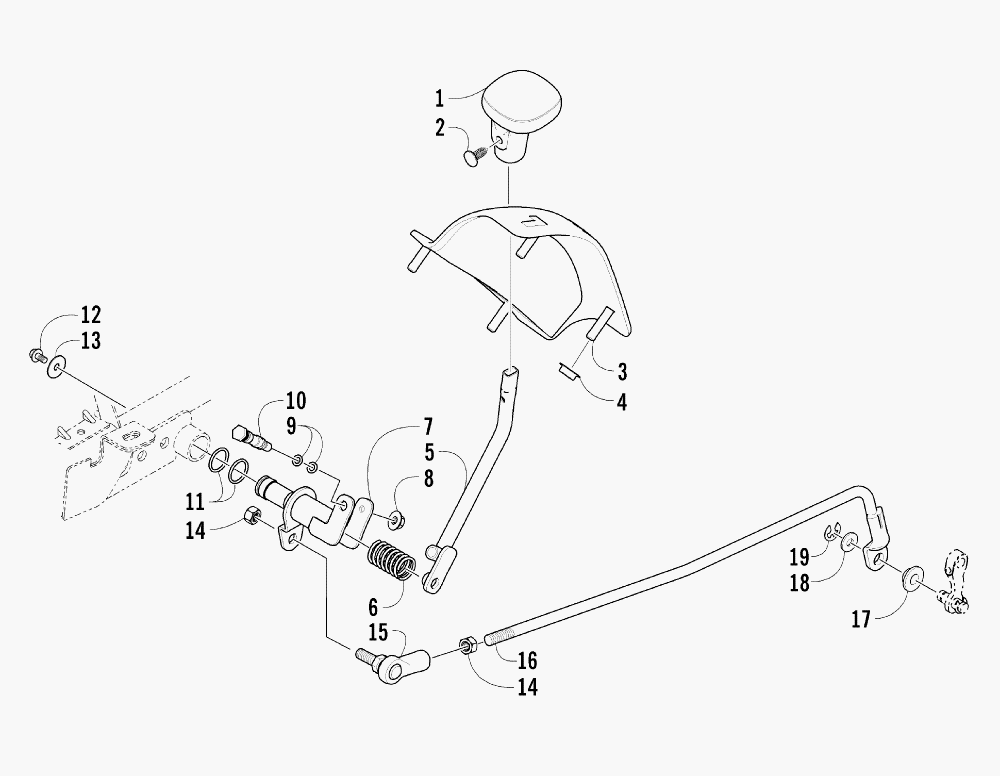

REVERSE SHIFT LEVER ASSEMBLY для Arctic Cat 500 TBX AUTO (RED) [A2006BBM4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10402-843 KNOB, REVERSE SHIFT LEVERKNOB, REVERSE SHIFT LEVER
-
20423-345 CLIP, PUSHCLIP, PUSH
-
31402-110 PLATE, SHIFTPLATE, SHIFT
-
40423-357 NUT, STAMPEDNUT, STAMPED
-
50502-659 LEVER, REVERSE SHIFTLEVER, REVERSE SHIFT
-
60502-410 SPRING, REVERSE SHIFT LEVERSPRING, REVERSE SHIFT LEVER
-
70502-742 AXLE, REVERSE SHIFT LEVERAXLE, REVERSE SHIFT LEVER
-
88424-602 NUTNUT
-
90423-182 O-RINGO-RING
-
100402-675 AXLE, PIVOTAXLE, PIVOT
-
110423-299 O-RINGO-RING
-
128408-812 SCREW, CAPSCREW, CAP
-
130423-087 WASHERWASHER
-
140623-294 NUTNUT
-
151402-270 END, RODEND, ROD
-
160502-669 LINKAGE, SHIFTLINKAGE, SHIFT
-
170423-091 BUSHING, SHIFT LINKAGEBUSHING, SHIFT LINKAGE
-
188050-242 WASHERWASHER
-
190423-169 E-RINGE-RING
