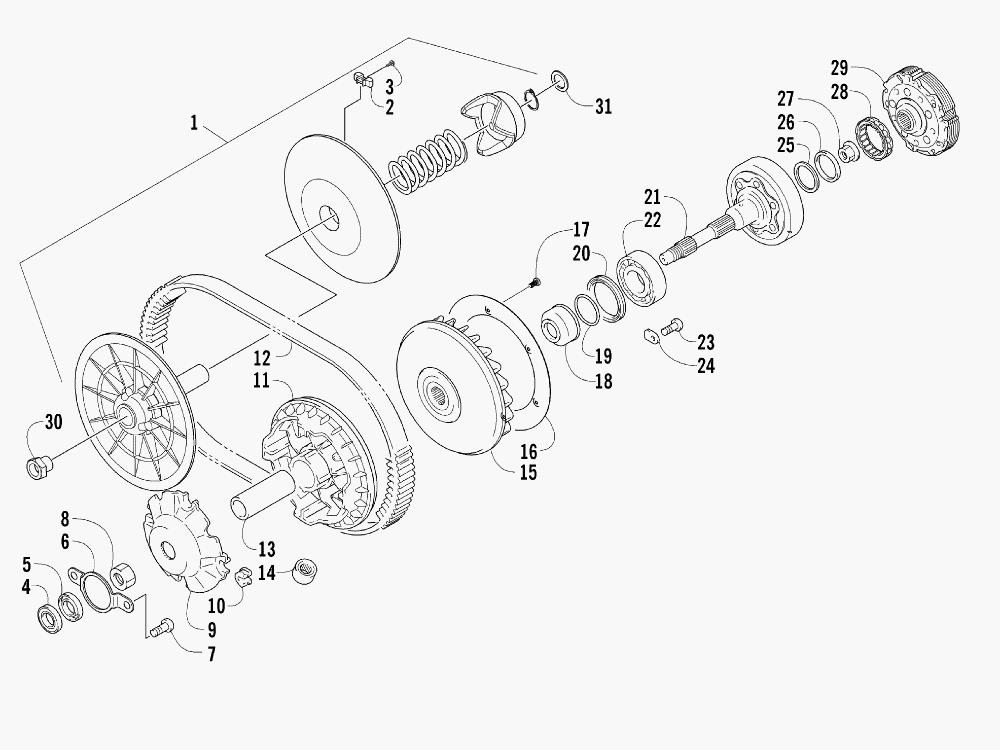

TRANSMISSION ASSEMBLY для Arctic Cat 650 H1 SE (BLACK) [A2006IBS4BUSO / A2006IBS4BCAO] - 2006 года выпуска
-
№АртикулНазвание
-
10823-157 PULLEY, DRIVEN - ASSEMBLYPULLEY, DRIVEN - ASSEMBLY
-
20823-176 SHOE, CAMSHOE, CAM
-
30823-177 SCREW, CAM SHOESCREW, CAM SHOE
-
40832-010 BEARINGBEARING
-
50823-016 SEAL, CLUTCH HOUSING - RIGHTSEAL, CLUTCH HOUSING - RIGHT
-
60823-020 RETAINER, BEARINGRETAINER, BEARING
-
70826-031 SCREWSCREW
-
80827-010 NUTNUT
-
90823-008 PLATE, MOVABLE DRIVE FACEPLATE, MOVABLE DRIVE FACE
-
100823-010 DAMPER, MOVABLE DRIVE FACEDAMPER, MOVABLE DRIVE FACE
-
110823-159 FACE, MOVABLE DRIVEFACE, MOVABLE DRIVE
-
120823-013 BELT, DRIVEBELT, DRIVE
-
130823-149 SPACER, MOVABLE DRIVE FACESPACER, MOVABLE DRIVE FACE
-
140823-012 ROLLER, MOVABLE DRIVE FACEROLLER, MOVABLE DRIVE FACE
-
150823-001 FACE, FIXED DRIVEFACE, FIXED DRIVE
-
160823-131 SHROUD, DRIVE FACESHROUD, DRIVE FACE
-
170623-914 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
180823-015 SPACER, FIXED DRIVE FACESPACER, FIXED DRIVE FACE
-
190470-531 O-RINGO-RING
-
200830-034 SEAL, CLUTCH HOUSING - RIGHTSEAL, CLUTCH HOUSING - RIGHT
-
210823-096 HOUSING, CLUTCHHOUSING, CLUTCH
-
220832-009 BEARINGBEARING
-
230826-029 SCREW, BEARING RETAINERSCREW, BEARING RETAINER
-
240822-010 RETAINER, BEARINGRETAINER, BEARING
-
250828-075 SHIMSHIM
-
260823-017 SEAL, CLUTCH HOUSING - LEFTSEAL, CLUTCH HOUSING - LEFT
-
270827-011 NUTNUT
-
280823-018 CLUTCH, ONE-WAYCLUTCH, ONE-WAY
-
290823-098 CLUTCH, CENTRIFUGAL - 6 PLATECLUTCH, CENTRIFUGAL - 6 PLATE
-
300823-178 NUT, DRIVEN PULLEYNUT, DRIVEN PULLEY
-
310828-076 SHIMSHIM
