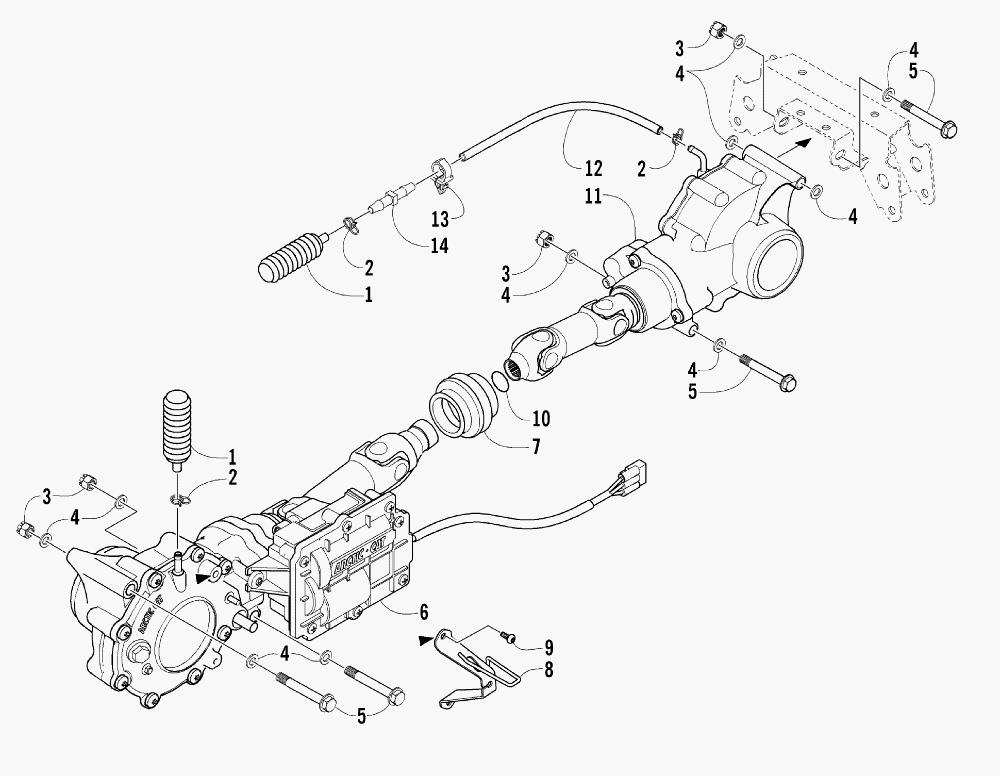

DRIVE TRAIN ASSEMBLY для Arctic Cat 650 V-TWIN FIS AUTO (ARCTIC CAT GREEN) [A2006IBR4BUSZ] - 2006 года выпуска
-
№АртикулНазвание
-
10402-147 BLADDER, GEARCASEBLADDER, GEARCASE
-
20423-315 CLAMP, FITTINGCLAMP, FITTING
-
38428-002 NUT, LOCKNUT, LOCK
-
40423-426 WASHERWASHER
-
50423-404 SCREW, CAPSCREW, CAP
-
60502-752 GEARCASE, FRONTGEARCASE, FRONT
-
70402-967 BOOT, SHAFTBOOT, SHAFT
-
80502-500 PLATE, CABLEPLATE, CABLE
-
90423-396 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
101402-203 O-RINGO-RING
-
110502-767 GEARCASE, REARGEARCASE, REAR
-
120410-049 HOSE, VENTHOSE, VENT
-
130623-101 CLIP, ROUTING - SNAP-INCLIP, ROUTING - SNAP-IN
-
140470-462 FITTING, VENTFITTING, VENT
