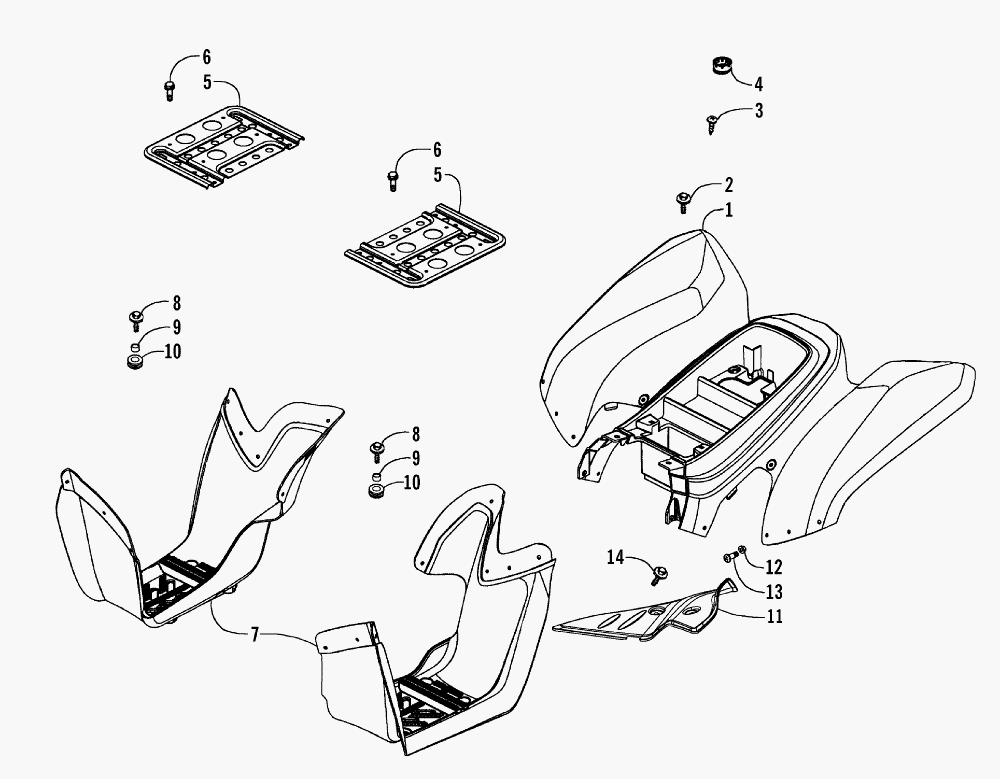

REAR BODY PANEL ASSEMBLY для Arctic Cat 90 Y-12 YOUTH - DVX (RED) [A2006KSB2BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
13303-454 PANEL, BODY - REAR - REDPANEL, BODY - REAR - RED
-
13303-455 PANEL, BODY - REAR - CAT GREENPANEL, BODY - REAR - CAT GREEN
-
23303-313 BOLT W/WASHERBOLT W/WASHER
-
33303-323 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
43303-232 RUBBER, REAR FENDERRUBBER, REAR FENDER
-
53303-186 REINFORCEMENT, FLOORREINFORCEMENT, FLOOR
-
63303-366 BOLT, FLANGEBOLT, FLANGE
-
73303-234 MUDGUARD, RIGHT - ASSEMBLYMUDGUARD, RIGHT - ASSEMBLY
-
73303-235 MUDGUARD, LEFT - ASSEMBLYMUDGUARD, LEFT - ASSEMBLY
-
83303-312 BOLT W/WASHERBOLT W/WASHER
-
93303-233 COLLAR, FLOORCOLLAR, FLOOR
-
103303-227 RUBBER, WIND SCREENRUBBER, WIND SCREEN
-
113303-267 NUT, CLIPNUT, CLIP
-
123303-331 NUT, FLANGENUT, FLANGE
-
133303-251 SCREWSCREW
-
143303-311 BOLT W/WASHERBOLT W/WASHER
-
153303-237 COVER, SIDE - ASSEMBLYCOVER, SIDE - ASSEMBLY
