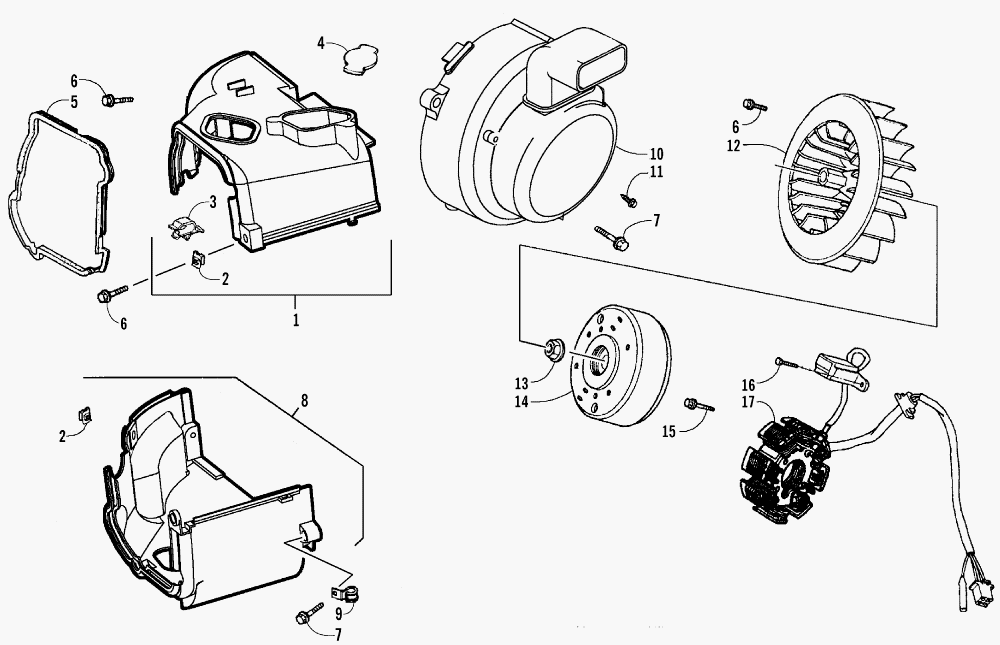

STATOR- FLYWHEEL- AND ENGINE SHROUD ASSEMBLIES для Arctic Cat 90 Y-12 YOUTH - UTILITY (GREEN) [A2006KUB2BUSG] - 2006 года выпуска
-
№АртикулНазвание
-
13303-079 SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-4)SHROUD B - ASSEMBLY (INC. ONE NO. 2 AND 3-4)
-
23303-267 ...NUT, CLIP...NUT, CLIP
-
33303-443 ...CLIP, VACUUM TUBE...CLIP, VACUUM TUBE
-
43303-408 ...GROMMET, SHROUD...GROMMET, SHROUD
-
53303-077 SEAL, SHROUDSEAL, SHROUD
-
63303-382 BOLT, FLANGEBOLT, FLANGE
-
73303-384 BOLT, FLANGEBOLT, FLANGE
-
83303-078 SHROUD A - ASSEMBLY (INC. ONE NO. 2)SHROUD A - ASSEMBLY (INC. ONE NO. 2)
-
93304-640 CLAMP, CARBURETOR DRAIN TUBECLAMP, CARBURETOR DRAIN TUBE
-
103303-516 COVER, FAN - ASSEMBLYCOVER, FAN - ASSEMBLY
-
113304-585 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
123303-075 FAN, COOLINGFAN, COOLING
-
133303-333 NUT, FLANGENUT, FLANGE
-
143303-127 FLYWHEELFLYWHEEL
-
153303-383 BOLT, FLANGEBOLT, FLANGE
-
163303-308 BOLTBOLT
-
173304-641 STATOR - ASSEMBLYSTATOR - ASSEMBLY
