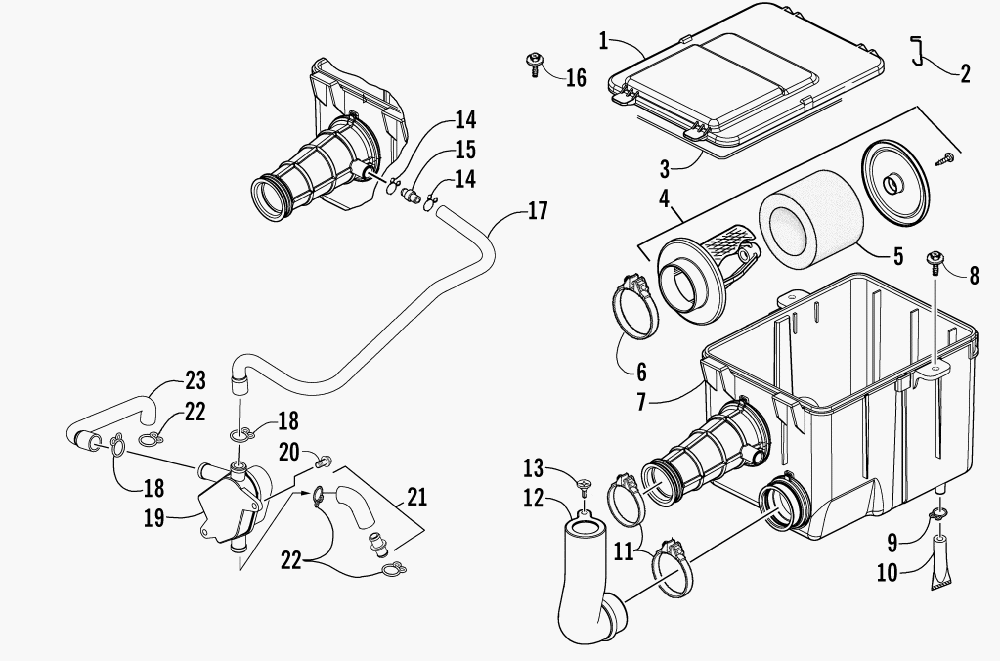

AIR INTAKE ASSEMBLY для Arctic Cat DVX 250 (BLACK/RED) [A2006KSE2BUSD] - 2006 года выпуска
-
№АртикулНазвание
-
13303-705 COVER, AIR BOXCOVER, AIR BOX
-
23303-708 CLIP, SPRINGCLIP, SPRING
-
33303-703 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
43303-704 FILTER, AIR - ASSEMBLY (INC. 5)FILTER, AIR - ASSEMBLY (INC. 5)
-
63304-416 CLAMP, HOSE W/SCREWCLAMP, HOSE W/SCREW
-
73303-707 BODY, AIR BOXBODY, AIR BOX
-
83304-652 SCREW W/WASHERSCREW W/WASHER
-
93303-713 CLIP, TUBECLIP, TUBE
-
103304-168 TUBE, DRAINTUBE, DRAIN
-
113303-709 CLAMP, HOSE W/SCREWCLAMP, HOSE W/SCREW
-
123303-710 DUCTDUCT
-
133304-062 SCREW, BODYSCREW, BODY
-
143304-433 CLIP, TUBECLIP, TUBE
-
153303-711 JOINT, BLOW-BYJOINT, BLOW-BY
-
163304-117 SCREW, PAN HEAD W/WASHERSCREW, PAN HEAD W/WASHER
-
173303-734 TUBE, B - OIL CATCH (INC. ONE NO. 18)TUBE, B - OIL CATCH (INC. ONE NO. 18)
-
183303-714 ...CLIP, TUBE...CLIP, TUBE
-
193303-706 CATCH, OILCATCH, OIL
-
203304-553 BOLT, FLANGEBOLT, FLANGE
-
213303-735 TUBE, C - OIL CATCH (INC. TWO NO. 22)TUBE, C - OIL CATCH (INC. TWO NO. 22)
-
223303-712 ...CLIP, TUBE...CLIP, TUBE
-
233303-733 TUBE, A - OIL CATCH (INC. ONE NO. 18)TUBE, A - OIL CATCH (INC. ONE NO. 18)
