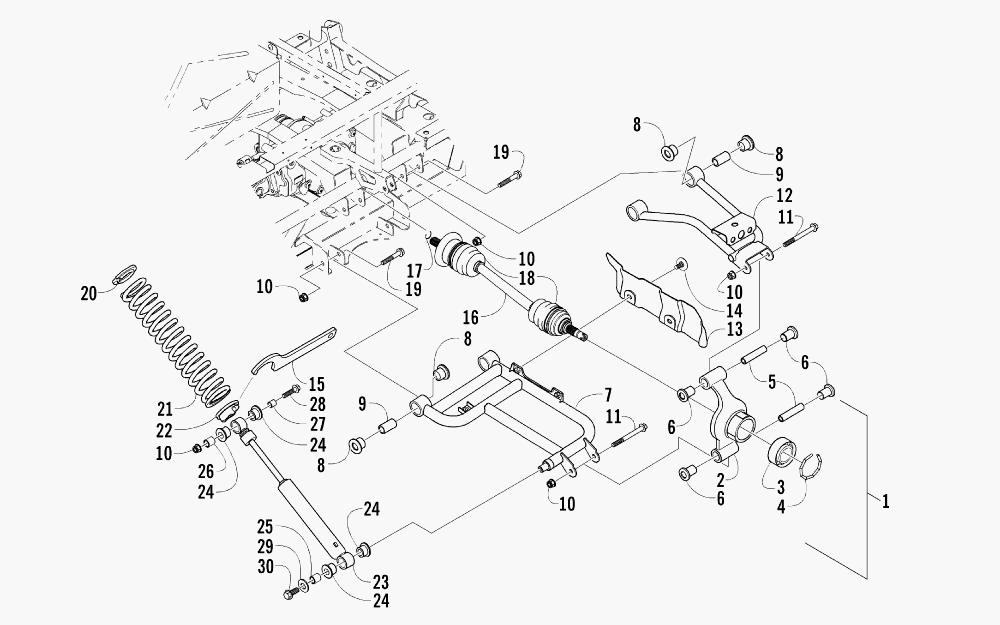

REAR SUSPENSION ASSEMBLY для Arctic Cat PROWLER XT (RED) [U2006P2S4BUSR] - 2006 года выпуска
-
№АртикулНазвание
-
10504-389 KNUCKLE, REAR - ASSEMBLY (INC. 2-6)KNUCKLE, REAR - ASSEMBLY (INC. 2-6)
-
31402-027 ...BEARING, WHEEL HUB...BEARING, WHEEL HUB
-
40423-423 ...RING, RETAINING...RING, RETAINING
-
50403-038 ...COLLAR, SUSPENSION BUSHING...COLLAR, SUSPENSION BUSHING
-
60403-032 ...BUSHING, SUSPENSION...BUSHING, SUSPENSION
-
70504-402 A-ARM, REAR - LOWER RIGHT - BLACK (INC. 8-9)A-ARM, REAR - LOWER RIGHT - BLACK (INC. 8-9)
-
70504-403 A-ARM, REAR - LOWER LEFT - BLACK (INC. 8-9)A-ARM, REAR - LOWER LEFT - BLACK (INC. 8-9)
-
80403-115 ...BUSHING...BUSHING
-
90403-114 ...COLLAR...COLLAR
-
108428-002 NUT, LOCKNUT, LOCK
-
118409-000 SCREW, CAPSCREW, CAP
-
120504-358 A-ARM, REAR - UPPER RIGHT - BLACK (INC. 8-9)A-ARM, REAR - UPPER RIGHT - BLACK (INC. 8-9)
-
120504-359 A-ARM, REAR - UPPER LEFT - BLACK (INC. 8-9)A-ARM, REAR - UPPER LEFT - BLACK (INC. 8-9)
-
130441-754 GUARD, BOOT - RIGHT (RED)GUARD, BOOT - RIGHT (RED)
-
130441-755 GUARD, BOOT - LEFT (RED)GUARD, BOOT - LEFT (RED)
-
131441-004 GUARD, BOOT - RIGHT (GREEN)GUARD, BOOT - RIGHT (GREEN)
-
131441-005 GUARD, BOOT - LEFT (GREEN)GUARD, BOOT - LEFT (GREEN)
-
130441-758 GUARD, BOOT - RIGHT (CAT GREEN)GUARD, BOOT - RIGHT (CAT GREEN)
-
130441-759 GUARD, BOOT - LEFT (CAT GREEN)GUARD, BOOT - LEFT (CAT GREEN)
-
140423-101 SCREW, BODYSCREW, BODY
-
150441-587 WRENCH, SPANNERWRENCH, SPANNER
-
160502-740 AXLE , DRIVE (INC. 17-18)AXLE , DRIVE (INC. 17-18)
-
170441-893 ...CLIP, RETAINING...CLIP, RETAINING
-
180436-276 ...REPAIR KIT, BOOT - REAR...REPAIR KIT, BOOT - REAR
-
198409-075 SCREW, CAPSCREW, CAP
-
201603-889 RETAINER, SPRINGRETAINER, SPRING
-
210404-117 SPRING, SUSPENSION - BLACKSPRING, SUSPENSION - BLACK
-
220404-057 CAM, SPRING ADJUSTERCAM, SPRING ADJUSTER
-
230404-115 SHOCK ABSORBER - REAR (INC. 24-26)SHOCK ABSORBER - REAR (INC. 24-26)
-
240603-955 ...BUSHING...BUSHING
-
251603-219 ...SLEEVE, SHOCK...SLEEVE, SHOCK
-
261603-209 ...SLEEVE...SLEEVE
-
270404-116 SLEEVE, SHOCK ABSORBERSLEEVE, SHOCK ABSORBER
-
288409-040 SCREW, CAPSCREW, CAP
-
290423-087 WASHERWASHER
-
308408-820 SCREW, CAPSCREW, CAP
