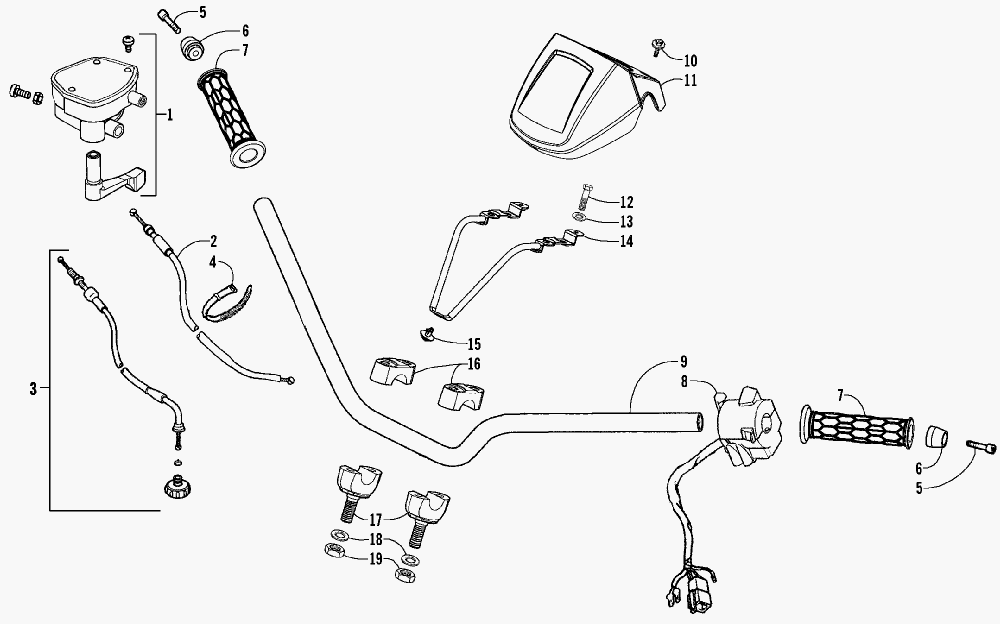

HANDLEBAR AND CONTROLS ASSEMBLY для Arctic Cat 250 UTILITY (RED) [A2007KUE2BUSR] - 2007 года выпуска
-
№АртикулНазвание
-
13303-953 LEVER, THROTTLE - ASSEMBLYLEVER, THROTTLE - ASSEMBLY
-
23303-723 CABLE, CHOKECABLE, CHOKE
-
31502-094 CABLE, THROTTLE - KITCABLE, THROTTLE - KIT
-
43303-839 CABLE TIECABLE TIE
-
53304-016 BOLT W/WASHERBOLT W/WASHER
-
63303-952 CAP, END - HANDLEBARCAP, END - HANDLEBAR
-
73303-203 GRIP, HANDLEBARGRIP, HANDLEBAR
-
83303-852 SWITCH ASSEMBLY - LEFTSWITCH ASSEMBLY - LEFT
-
93305-457 HANDLEBAR - BLACKHANDLEBAR - BLACK
-
103304-029 BOLT W/WASHERBOLT W/WASHER
-
113303-958 INSTRUMENT POD - (RED)INSTRUMENT POD - (RED)
-
113303-959 INSTRUMENT POD - GREEN (GREEN)INSTRUMENT POD - GREEN (GREEN)
-
123304-110 BOLTBOLT
-
133304-135 WASHERWASHER
-
143303-951 BRACKET, INSTRUMENT PODBRACKET, INSTRUMENT POD
-
153304-552 CLIPCLIP
-
163303-954 HOLDER, HANDLEBAR - UPPERHOLDER, HANDLEBAR - UPPER
-
173303-955 HOLDER, HANDLEBAR - LOWERHOLDER, HANDLEBAR - LOWER
-
183305-088 WASHERWASHER
-
193303-325 NUTNUT
