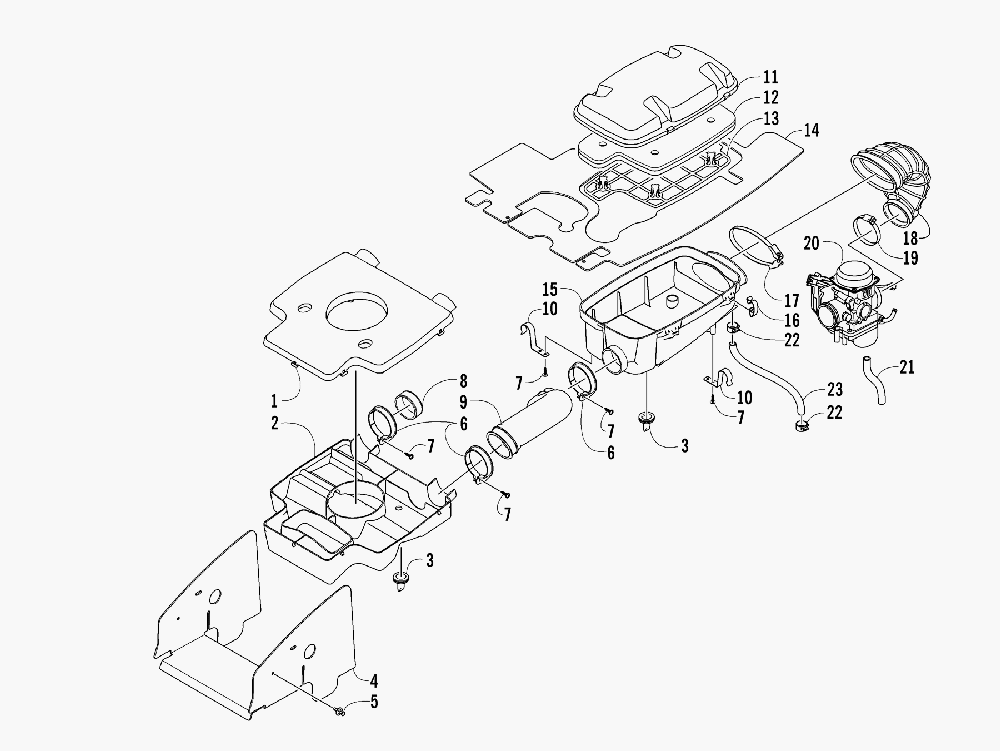

AIR INTAKE ASSEMBLY для Arctic Cat 650 H1 FIS (M4 CAMO) [A2007IBS4BUSC] - 2007 года выпуска
-
№АртикулНазвание
-
10413-091 DIVERTER, AIR - TOPDIVERTER, AIR - TOP
-
20413-093 DIVERTER, AIR - BOTTOMDIVERTER, AIR - BOTTOM
-
30470-442 VALVE, DRAINVALVE, DRAIN
-
41406-973 SHROUD, SPLASHSHROUD, SPLASH
-
50623-362 RIVET, REINSTALLABLERIVET, REINSTALLABLE
-
60423-551 CLAMPCLAMP
-
70423-342 SCREW, SELF-TAPPINGSCREW, SELF-TAPPING
-
80413-096 CAP, AIR INTAKE - DIVERTERCAP, AIR INTAKE - DIVERTER
-
90470-529 BOOT, AIR INTAKEBOOT, AIR INTAKE
-
100423-454 CLIP, MOUNTING - AIR INTAKECLIP, MOUNTING - AIR INTAKE
-
110470-554 COVER, AIR INTAKECOVER, AIR INTAKE
-
120470-663 FILTER, AIRFILTER, AIR
-
130470-516 SCREEN, AIR FILTERSCREEN, AIR FILTER
-
142406-009 PANEL, SHIELDPANEL, SHIELD
-
150470-515 HOUSING, AIR INTAKEHOUSING, AIR INTAKE
-
160423-455 CLIP, SPRINGCLIP, SPRING
-
170423-554 CLAMP, BOOTCLAMP, BOOT
-
180470-525 BOOT, CARBURETORBOOT, CARBURETOR
-
190423-019 CLAMP, BOOTCLAMP, BOOT
-
200470-571 CARBURETOR, CVK36-AECARBURETOR, CVK36-AE
-
210510-592 HOSE, CARBURETOR DRAINHOSE, CARBURETOR DRAIN
-
220423-045 CLAMP, HOSECLAMP, HOSE
-
230410-079 HOSE, VENT - CRANKCASEHOSE, VENT - CRANKCASE
