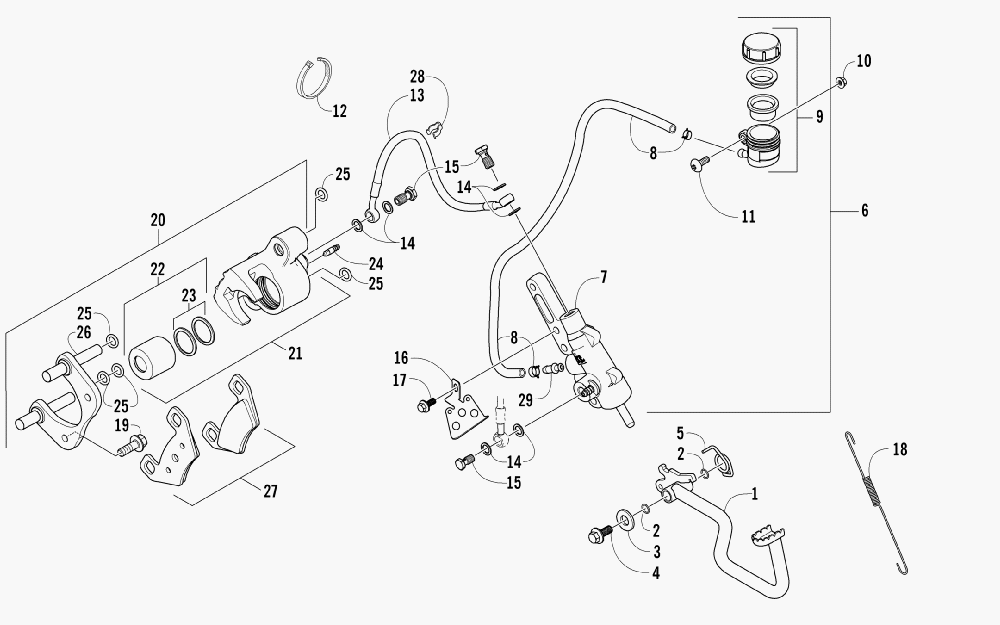

AUXILIARY BRAKE ASSEMBLY для Arctic Cat 700 DIESEL (RED) [A2007TBT4DUSR] - 2007 года выпуска
-
№АртикулНазвание
-
1502-175 FULLY BLED MASTER CYLINDER REPLACEMENT KITFULLY BLED MASTER CYLINDER REPLACEMENT KIT
-
11502-063 LEVER, BRAKELEVER, BRAKE
-
21602-213 O-RINGO-RING
-
38050-252 WASHERWASHER
-
48408-816 SCREW, CAPSCREW, CAP
-
50502-807 SPRING, BRAKE LEVERSPRING, BRAKE LEVER
-
61502-153 BRAKE ASSEMBLY (INC. 7-9)BRAKE ASSEMBLY (INC. 7-9)
-
81502-154 ...HOSE, BRAKE RESERVOIR W/CLAMPS...HOSE, BRAKE RESERVOIR W/CLAMPS
-
91502-155 ...RESERVOIR, BRAKE...RESERVOIR, BRAKE
-
100623-038 NUT, FLANGEDNUT, FLANGED
-
118476-616 SCREW, MACHINESCREW, MACHINE
-
120123-788 CABLE TIE - 7.5 IN.CABLE TIE - 7.5 IN.
-
131502-140 HOSE, BRAKEHOSE, BRAKE
-
140423-178 WASHER, CRUSHWASHER, CRUSH
-
150423-413 BOLT, BANJO-FITTINGBOLT, BANJO-FITTING
-
161502-179 BRACKET, SWITCHBRACKET, SWITCH
-
178408-625 SCREW, CAPSCREW, CAP
-
180502-785 SPRING, BRAKE SWITCHSPRING, BRAKE SWITCH
-
191623-589 SCREW, CAPSCREW, CAP
-
200502-878 CALIPER, BRAKE (INC. 21-27)CALIPER, BRAKE (INC. 21-27)
-
210502-603 ...HOUSING, CALIPER - ASSEMBLY - RIGHT REAR (INC. 22-24)...HOUSING, CALIPER - ASSEMBLY - RIGHT REAR (INC. 22-24)
-
220502-606 ......PISTON/SEAL SET (INC. 23)......PISTON/SEAL SET (INC. 23)
-
230502-607 .........SEAL SET.........SEAL SET
-
240502-609 ......VALVE, BLEED......VALVE, BLEED
-
250502-608 ...O-RING, GUIDE - SET...O-RING, GUIDE - SET
-
260502-605 ...BRACKET ASSEMBLY...BRACKET ASSEMBLY
-
270502-875 ...PAD, BRAKE - SET...PAD, BRAKE - SET
-
281502-115 CLIP, BRAKE HOSECLIP, BRAKE HOSE
-
291502-138 ADAPTER, HOSEADAPTER, HOSE
